ACX 165 S AUDITOR 2-Way Coaxial Compact Kit
Datasheet
Specification sheet

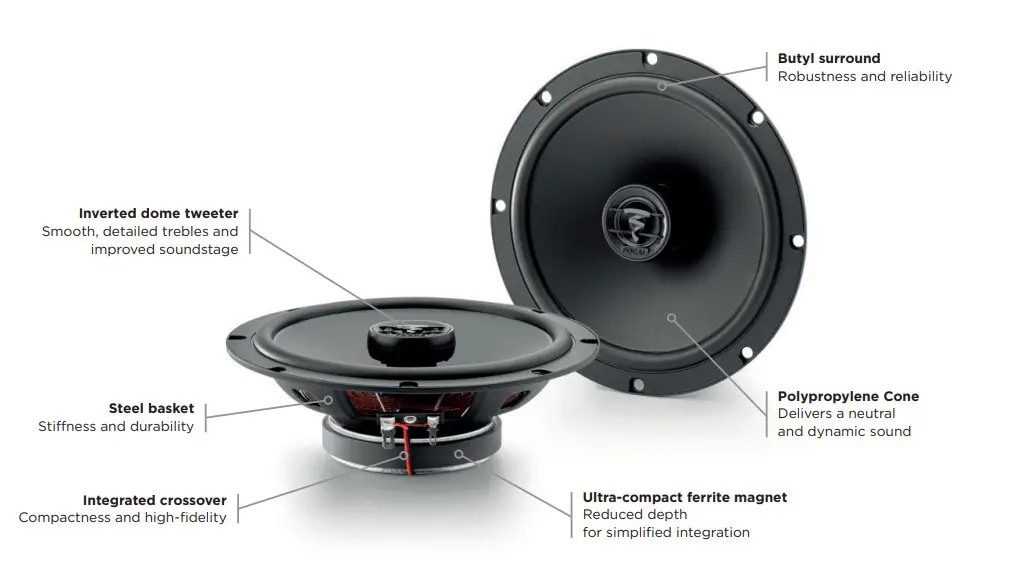

With a mounting depth of only 4.8cm, the ACX 165 S 2-way coaxial kit is dedicated to invisible installations in vehicles with little available depth in the doors. For nearly 20 years this product line has benefited from many upgrades and has built its reputation around its reliability and its acoustic qualities which are unique to Focal and offered at a very attractive price. Combined with electronics or directly connected to the vehicle’s original amplifier, this kit will considerably improve the audio experience in any type of cabin.
Key points
- Developed in France by Focal
- Ultra-shallow design
- Easy to amplify loudspeakers
- The black lacquered finish on the tweeter
- Exclusive Focal technologies
- Can be surface mounted or fully integrated
| Type | 2-way shallow coaxial kit |
| Woofer | 165mm |
| Depth | 48.5mm |
| Cone | Polypropylene |
| Maximum power | 110W |
| Nominal power | 55W RMS |
| Sensitivity (2.83V/1m) | 91dB |
| Frequency response | 60Hz – 21kHz |
| Impedance | 4 Ω |
| Voice-coil diameter | 25mm |
| Magnet | Ferrite |
| Suspension | Butyl |
| Tweeter | Inverted dome tweeter |
| Crossover | Integrated |
