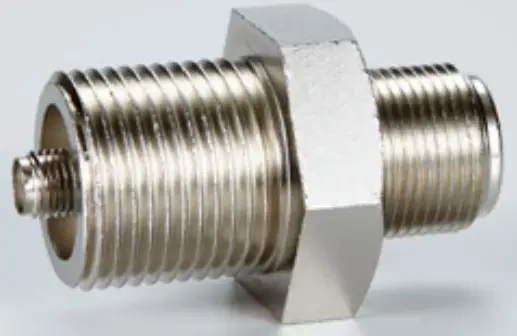

STAHL 9731/110-1 Coax Bushing
PRODUCT FEATURES
- Connection of standard antennas in Zones 1, 2, 21 and 22 (in conjunction with 9730/26-11)
- Quick and easy installation
- Suitable for extreme industrial environments – IP66 degree of protection, temperature range -60 to +150 °C
WebCode 9731A
The 9731 series coaxial bushing perfectly complements our HF isolator (9730/26-11), as it enables standard antennas to be connected in Zone 1, 2, 21 and 22 hazardous areas with its standard type N plug connector. It can be installed quickly and easily, is compact and robust, and can also be used for offshore applications.
Technical Data
| Explosion Protection | |
| Application range (zones) | 1 2 21 22 |
| IECEx gas certificate | IECEx TRC 15.0001X |
| IECEx gas explosion protection | Ex d IIC Gb |
| IECEx dust certificate | IECEx TRC 15.0001X |
| IECEx dust explosion protection | Ex tb IIIC Db |
| IECEX firedamp certificate | IECEx TRC 15.0001X |
| IECEx firedamp protection | Ex d I Mb |
| ATEX gas certificate | TRAC 15 ATEX 0001 X |
| ATEX gas explosion protection | E II 2 G Ex d IIC Gb |
| ATEX dust certificate | TRAC 15 ATEX 0001 X |
| ATEX dust explosion protection | E II 2 D Ex tb IIIC Db |
| ATEX firedamp certificate | TRAC 15 ATEX 0001 X |
| ATEX firedamp protection | E I M2 Ex d I Mb |
| ATEX firedamp protection 2 | E I M2 Ex I Mb |
| cMETus certificate | E114097 |
| Marking cMETus | Class I, II, III, Div. 1, Groups A, B, C, D, E, F; |
| Certificates | ATEX (TRC), Canada / USA (MET), IECEx (TRC) |
| Electrical Data | |
| Frequency | 150 MHz to 8 GHz |
| Frequency band | Universal |
| Insertion loss | 2.4 GHz/0.8 dB 900 Mhz/0.25 dB 5 GHz/0.8 dB |
| Electrical Data | |
| Insertion loss | Frequency band Universal Frequency 150 MHz 0.1 dB 450 MHz 0.22 dB 900 MHz 0.25 dB 2.4 GHz 0.5 dB 5 GHz 0.8 dB |
| Internal plug connector | SMA female |
| External plug connector | N-type socket |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +150 °C |
| Ambient temperature | -76 °F … +302 °F |
| Storage temperature | -60 °C … +150 °C |
| Storage temperature | -76 °F … +302 °F |
| Maximum relative humidity | 0 to 95%, non-condensing |
| Mechanical Data | |
| Degree of protection (IP) | IP65 |
| Material | Stainless steel |
| Thread size | M20 |
| Weight | 0.4 kg |
| Weight | 0.88 lb |

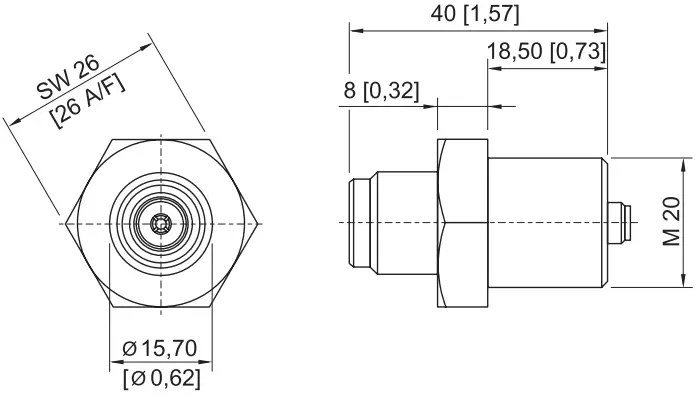

Dimensional Drawings
(All Dimensions in mm [inches]) – Subject to Alterations

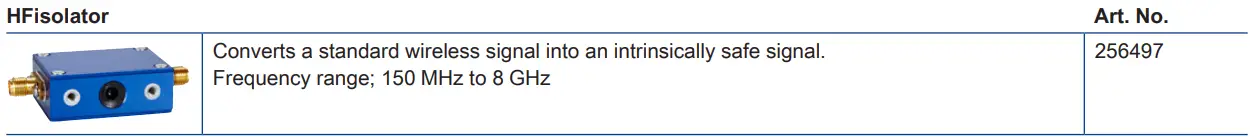

Accessories
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The
illustrations cannot be considered binding.
