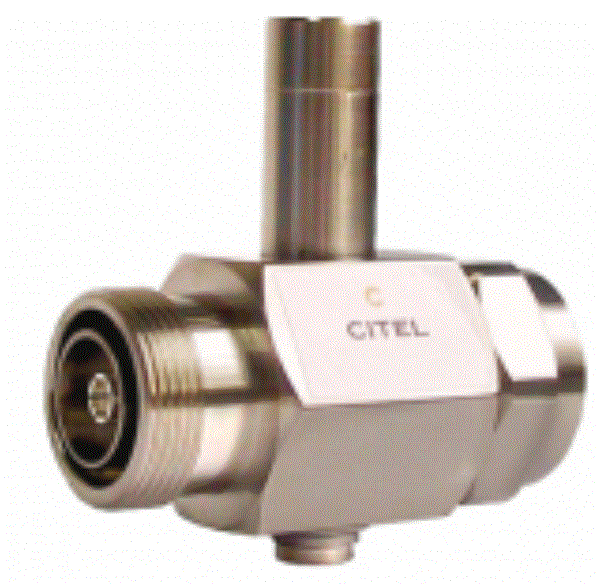

CITEL N151101c Quarter Wave Coaxial Protectors
SAFETY INSTRUCTIONS
ATTENTION!
- Installation must be performed only by an electrically skilled operator.
- National electrical installation rules must be followed.
- The unit must be used only as surge protector and according to the conditions described in this document.
- Surge protectors must be selected in relation with a dedicated network (see Table 1)
- In the case of a red indicator, the surge protector must be replaced.
This document could be modified without notice. Updated Information on Website.
INSTALLATION INSTRUCTIONS

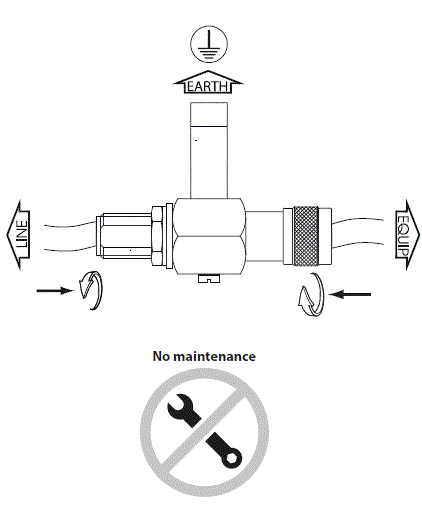

Connect with system

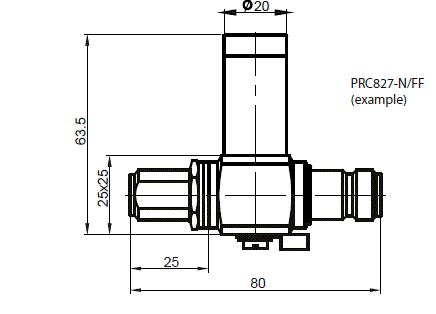

Dimensions (m m)
Important note
The product is rated IP66 (Protected from high-pressure water jets from any direction). To enhance the existing outdoor rating, seal tape can be added to coaxial connection during installation.

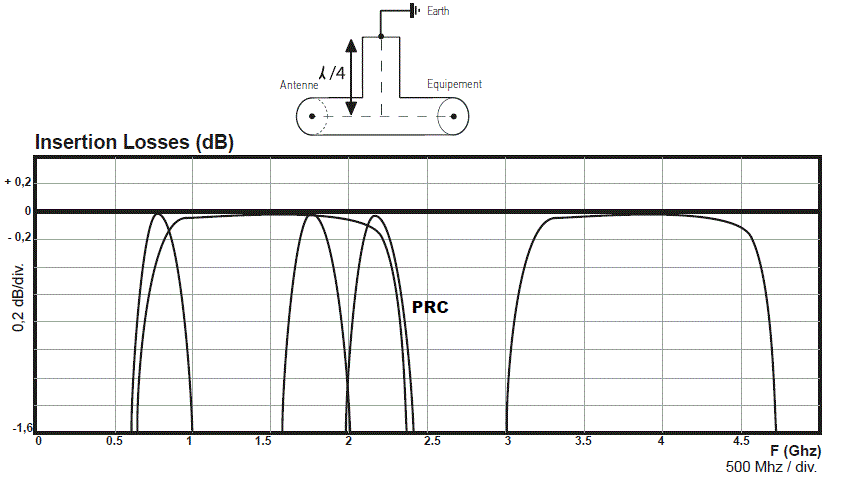

Attenuation / Frequency plot

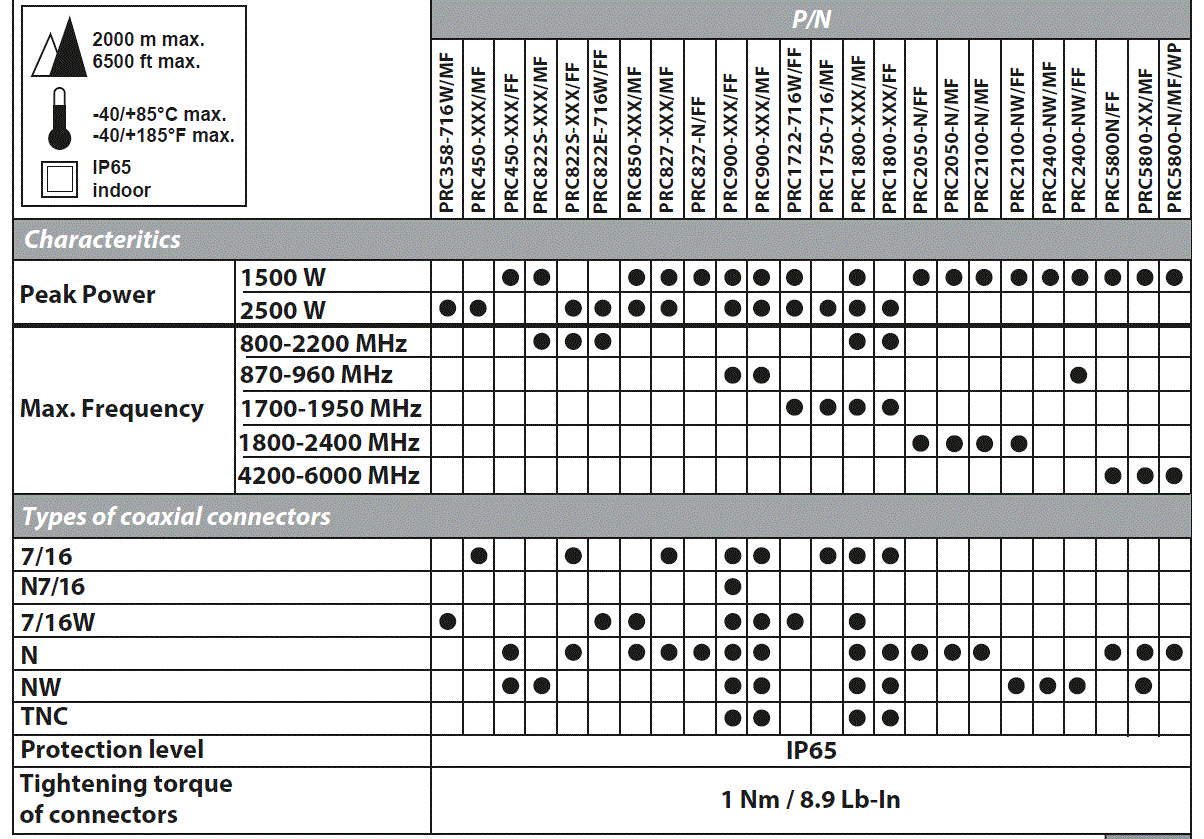

Technical Data
Application example
