CITEL N120902f DC Surge Protector

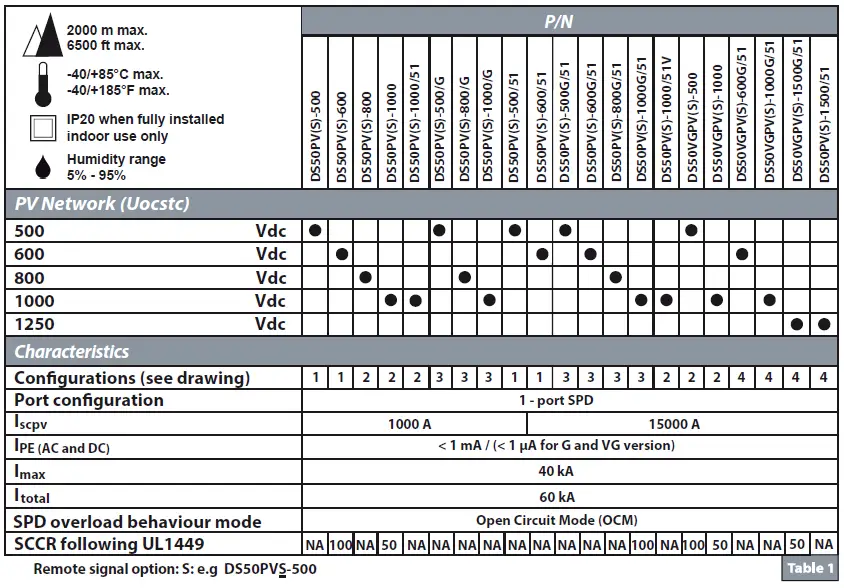

Technical Data

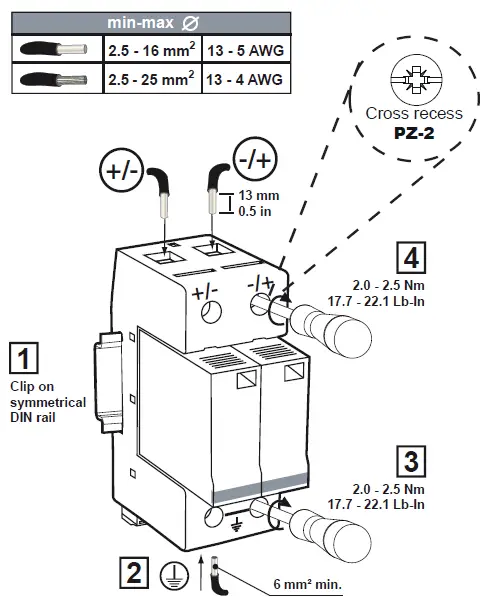

Installation
Wiring

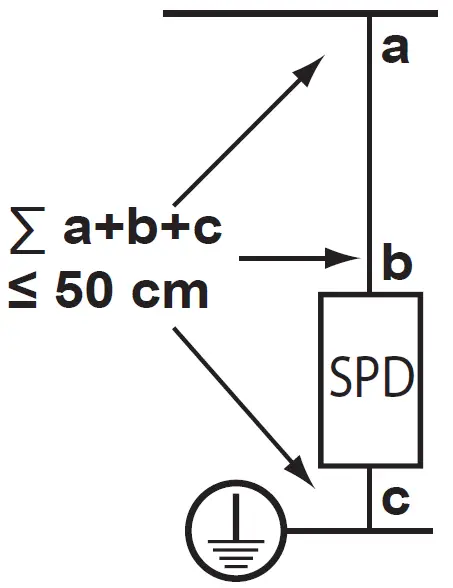

All configurations

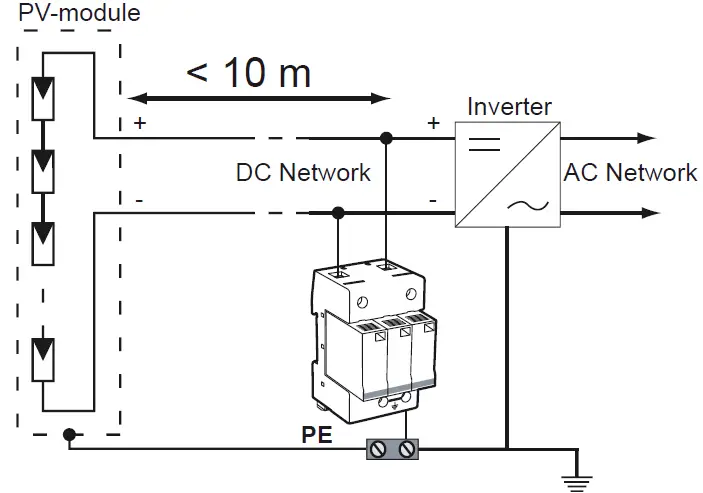

Configuration 1

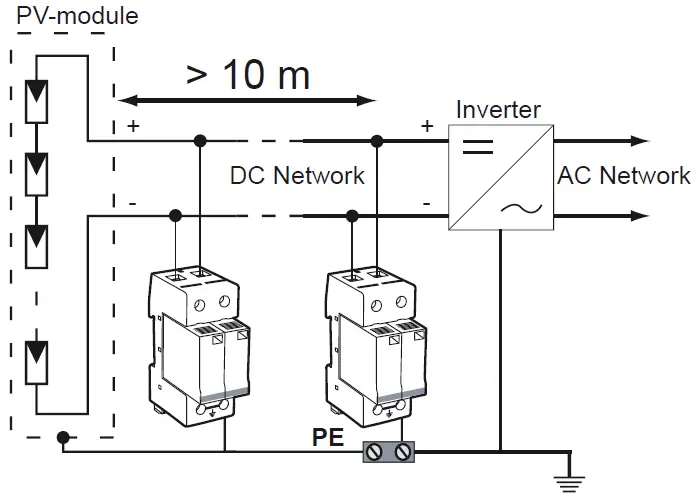

Configuration 2, 3 or 4

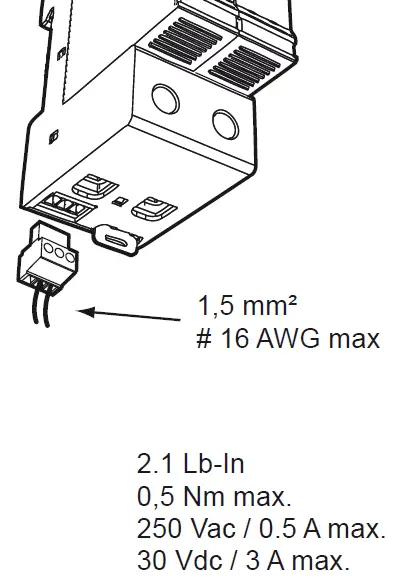

Remote contact wiring
Remote signal for disconnection information
- 11-12 Closed = SPD OK
- 11-14 Open = SPD OK
- 11-12 Open = SPD disconnect
- 11-14 Closed = SPD disconnect

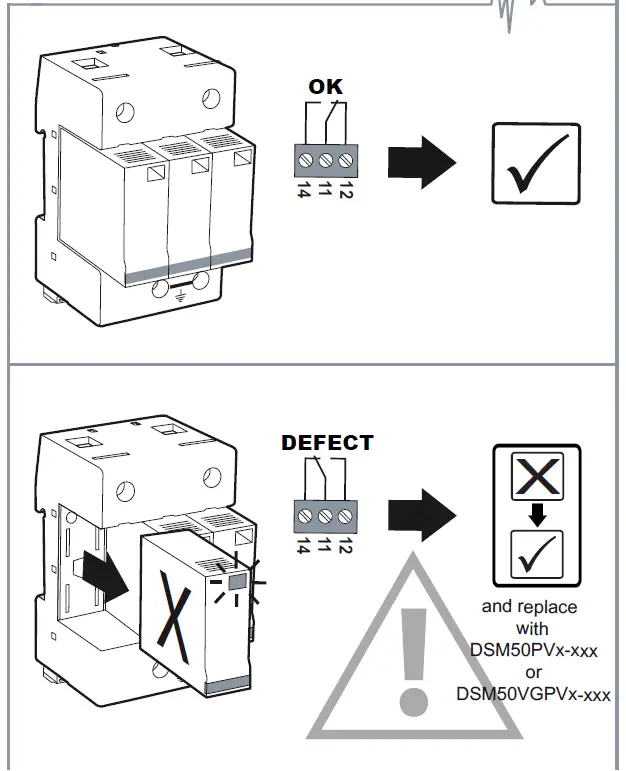

Maintenance
SAFETY INSTRUCTIONS
- Installation must be performed only by an electrically skilled operator.
- National electrical installation rules must be followed.
- The unit must be used only as a surge protector and according to the conditions described in this document.
- Surge protectors must be selected in relation to a dedicated AC network (see Table 1)
- Dedicated fuses must be installed in the surge protector branch (see Table 2 column 1).
- In the case of a red indicator, the surge protector must be replaced.
