N151001c
INSTALLATION INSTRUCTIONS

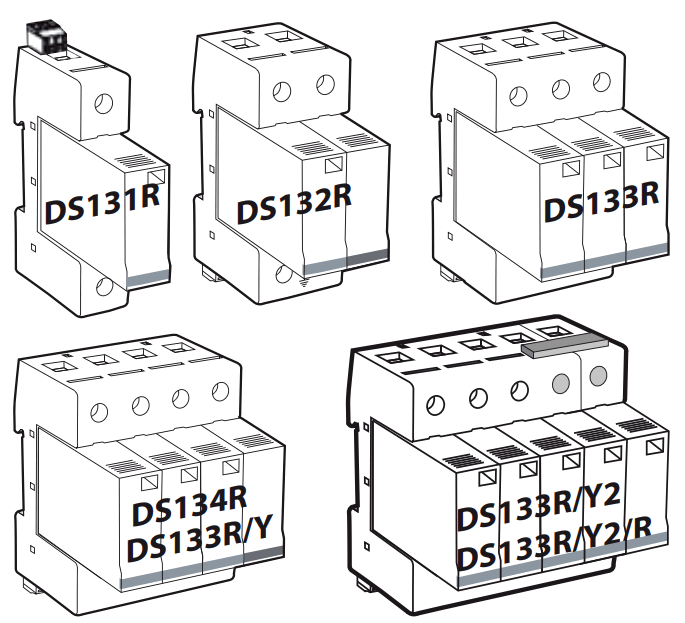

AC surge protector DS130R SERIES

Contents hide

2000 m max. 6500 ft max.-40/+85°C max. -40/+185°F max.IP20 indoor use onlyHumidity range 5% to 95%	05131R(5)-120	DS132R(5)-280/G	P/N
	05132R(5)-120	O513411(5)-280/G
	05133R(5)-120	DS131R(5)-320
	D51341(5)-120	O513211(5)-320
	05132R(5)-120/0	05133R(5)-320
	DS133R(5)-120/0	O513411(5)-320
	DS134R(5)-120/0	051328(5)-320/G
	05131R(5)-230	DS134R(5)-320/0
	05132R(5)-230	051318(5)-400
	05133R(5)-230	051328(5)-400
	05134R(5)-230	051338(5)-400
	05132R(5)-230/0	O513411(5)-400
	DS134R(5)-230/0	DS132R(5)-400/G
	05131R(5)-280	DS134R(5)-400/G
	DS132R(5)-280	051338(5)-800/Y
	05133R(5)-280	DS133R(5)-1200/Y2(/R)
	05134R(5)-280

AC Network

120 Vac L+N

208 Vac 3L

120 Vac 2L+N

120/208 Vac 3L+N

230 Vac L+N

320 Vac L+N

400 Vac 3L

230/400 Vac 3L+N

800 Vac 3L

Table 1

*values per pole
Remote signal option: S: e.g DS131RS-230

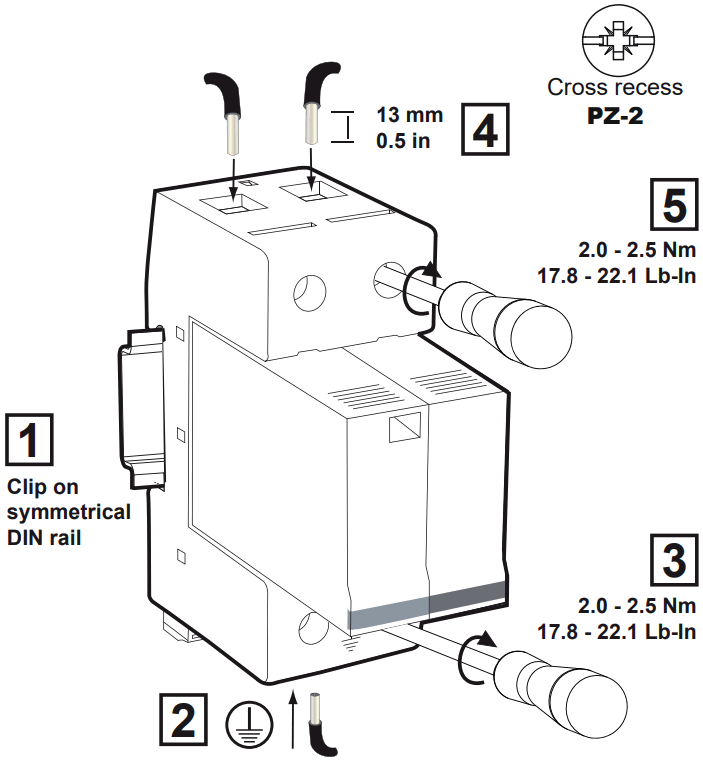

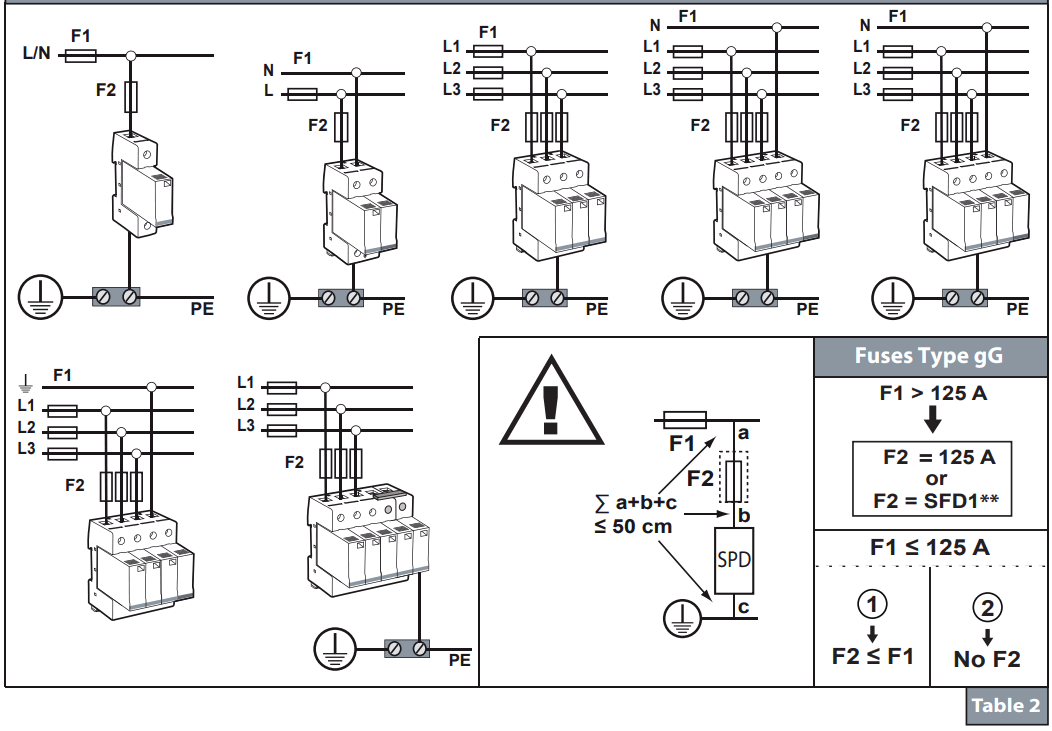

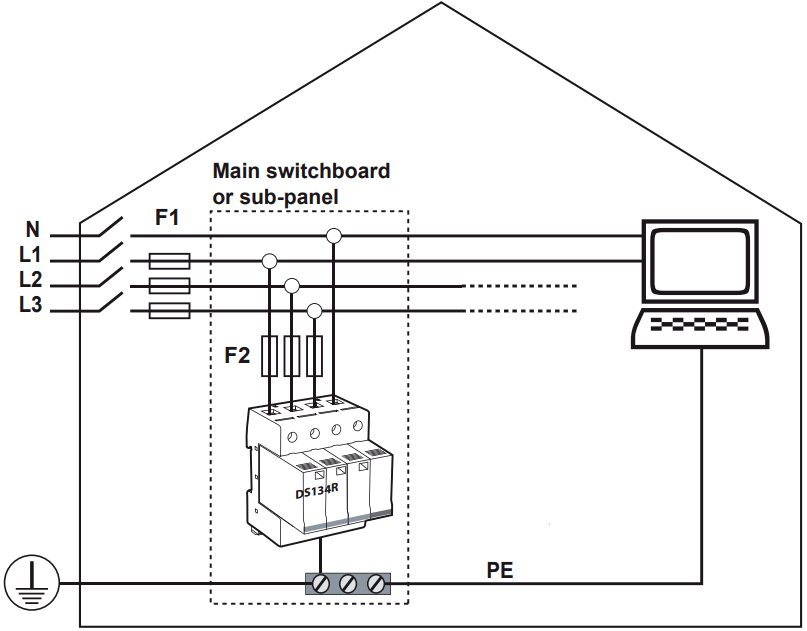

Standard wiring

* depending on national rules: Solution 1 or 2
** Specific Disconnector for SPD provided by CITEL. For more details, consult the CITEL website.

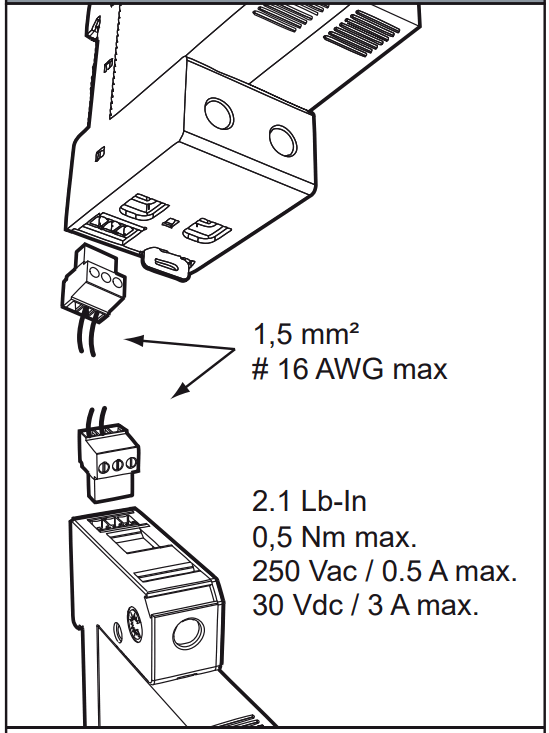

Remote contact wiring

Remote signal for disconnection information

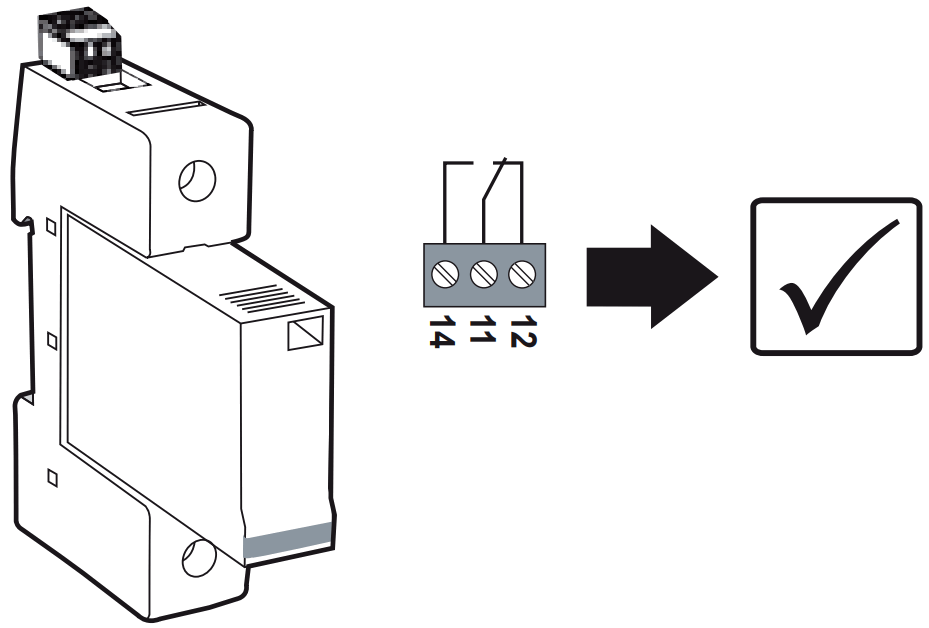

11-12 Closed = SPD OK
11-14 Open = SPD OK

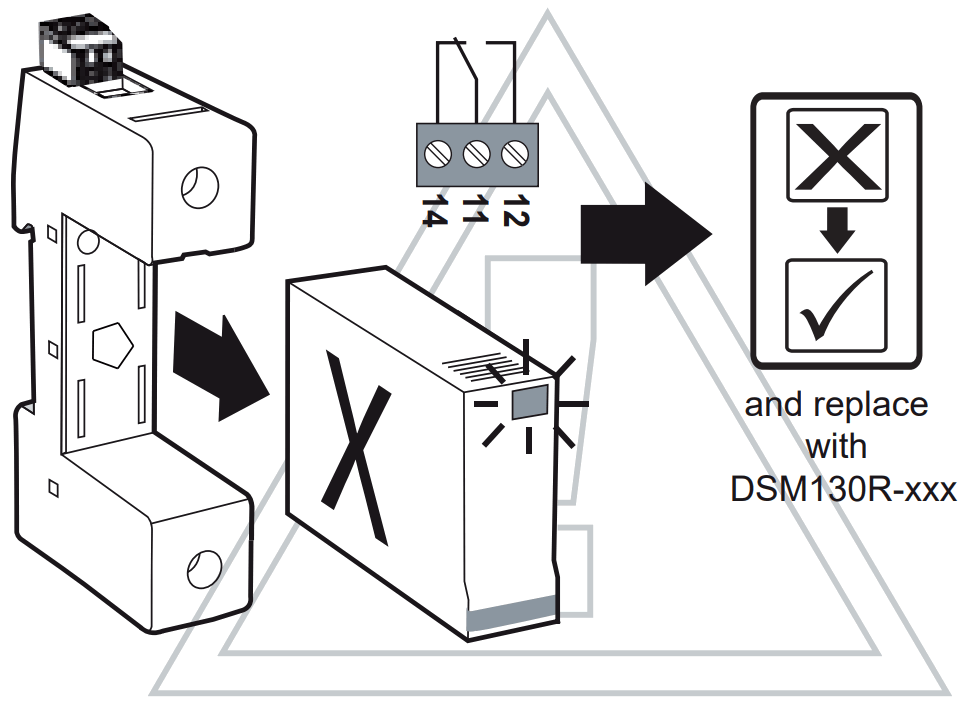

11-12 Open = SPD disconnect
11-14 Closed = SPD disconnect

Table 3

ATTENTION!

Installation must be performed only by an electrically skilled operator.
National electrical installation rules must be followed.
The unit must be used only as a surge protector and according to the conditions described in this document.
Surge protectors must be selected in relation to a dedicated AC network (see Table 1)
Dedicated fuses must be installed in the surge protector branch (see Table 2 column 1).
In the case of a red indicator, the surge protector must be replaced.

This document could be modified without notice. Updated Information on Website.
