hager HF861SPD Surge Protection Kit Installation Guide
JHF861SPD
Parts list:
- 25mm sq neutral cable
- 25mm sq L1/L2/L3 cable

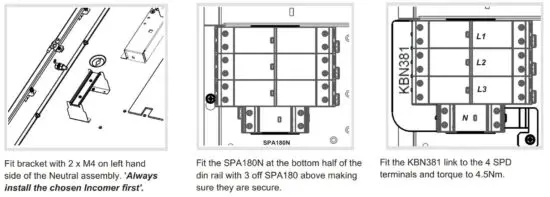

- Bracket with DIN Rail
- 4x M4 Screws

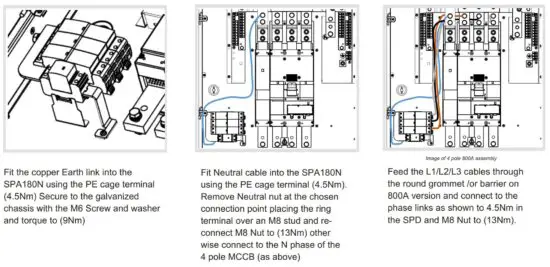

- Copper Earth Link
- 1 x M6 Bolt & washer
- 3 x SPA180
- 1 x SPA180N
- 1 x KBN381 link
The device may only be connected and installed by an electrically skilled person. National standards and safety regulations must be observed.
The device must be checked for external damage prior to installation. If any damage or other defects are detected in this check, the device must not be installed.
Its use is only permitted within the limits shown and stated in the installation instructions.
Opening or otherwise tampering with the device invalidates the warranty.
