CITEL N180803c AC Surge Protector

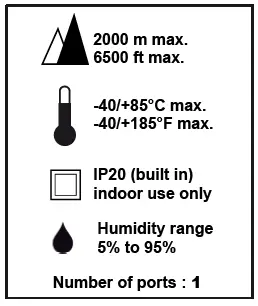

Technical Data

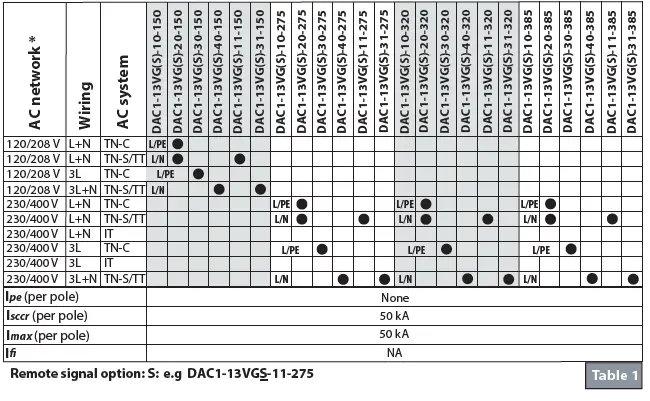

- Type of LV-System + regulation (e.g 10 %)

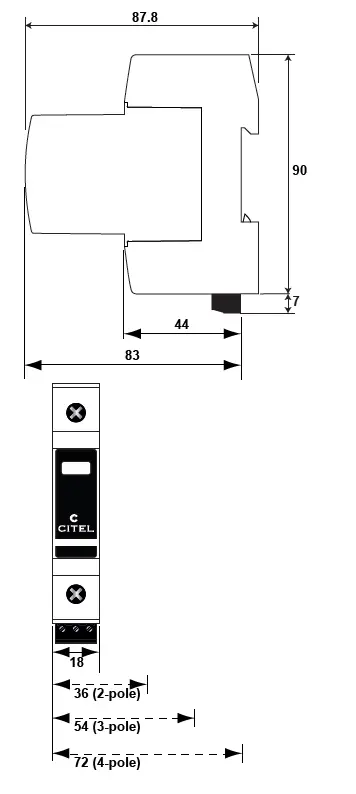

Dimensions (mm)

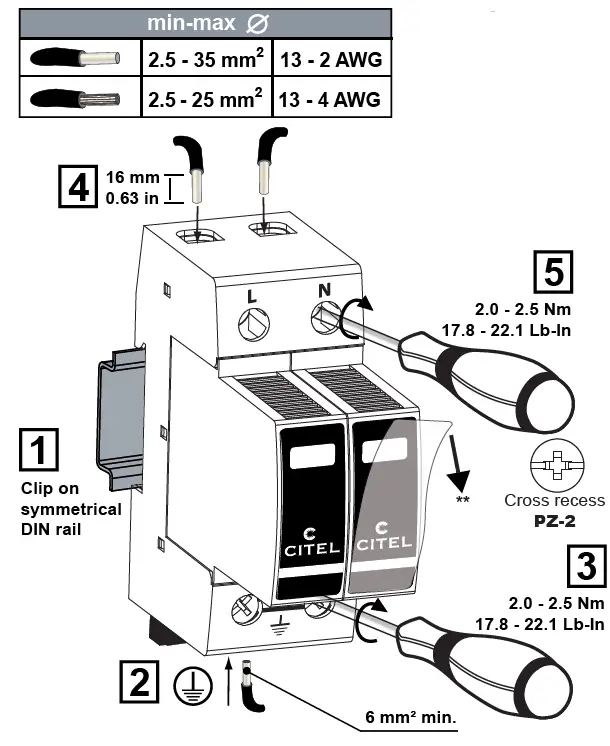

Installation
Wiring

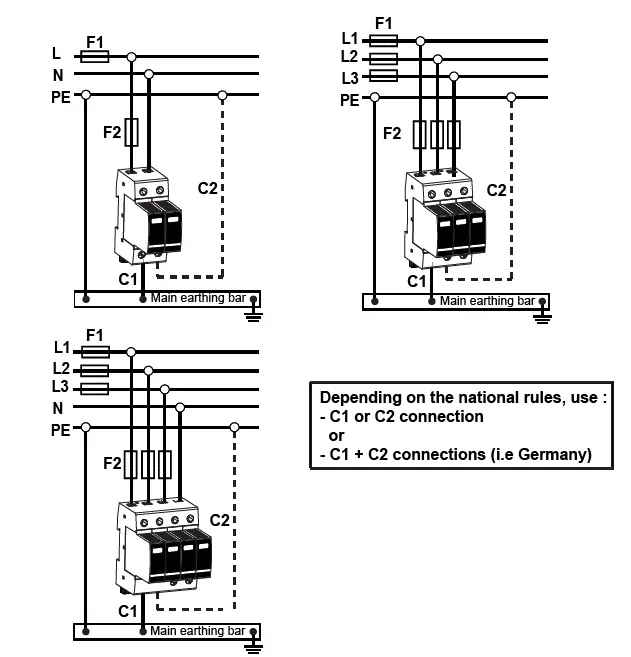

Standard wiring

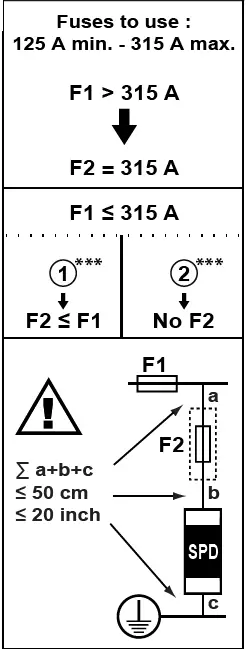

Fuses Type gG

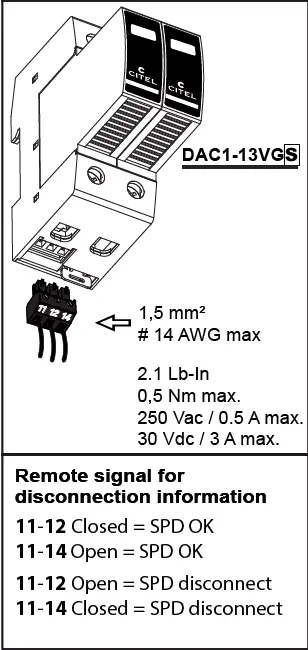

Remote contact wiring

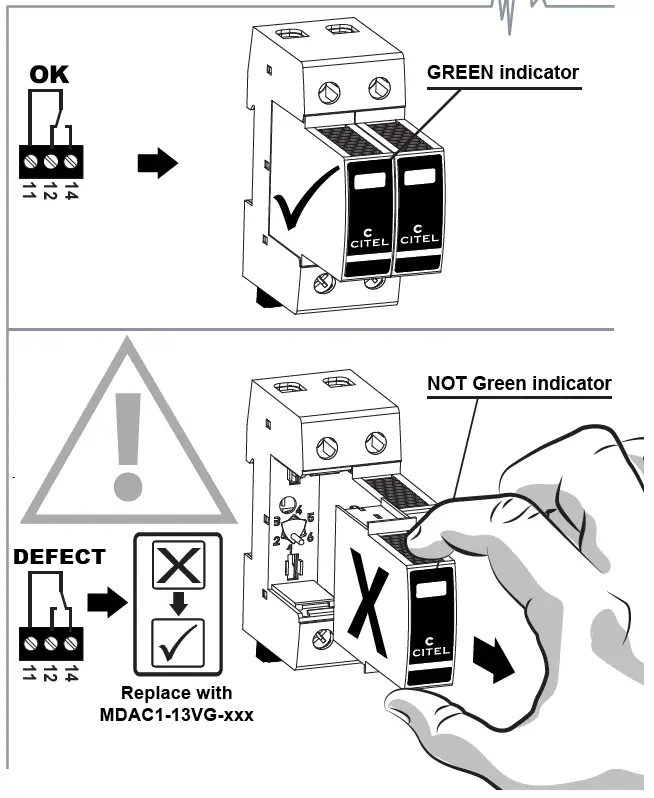

Maintenance
SAFETY INSTRUCTIONS
ATTENTION !
- Installation must be performed only by an electrically skilled operator.
- National electrical installation rules must be followed.
- The unit must be used only as a surge protector and according to the conditions described in this document.
- Surge protectors must be selected in relation to a dedicated AC network (see Table 1)
- Dedicated fuses must be installed in the surge protector branch (see Table 2 column 1).
- In case of a red indicator, the surge protector must be replaced.
This document could be modified without notice. Updated Information on Website.
