N130502L Dataline surge protector
Instructions

Dataline surge protector

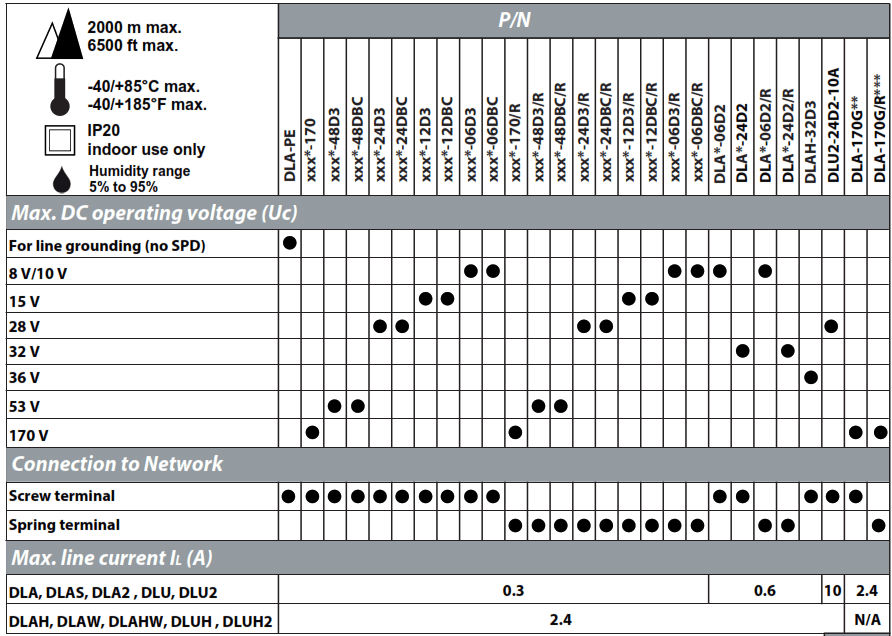

Technical Data

DLA, DLAS, DLAH, DLAW,DLAHW DLA2, DLU, DLU2, DLUH or DLUH2 or DLAW-170G, or DLAW-170G/R

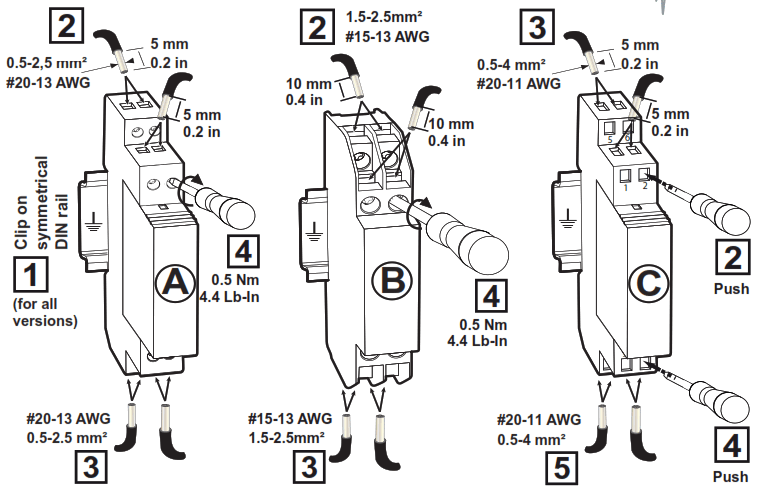

Installation

Drawing A: for DLA, DLAS, DLAH, DLAHW, DLA2 & DLAW
Drawing B : for DLU, DLUH, DLU2 & DLUH2
Drawing C: for DLA/R, DLAS/R, DLAH/R, DLAHW/R & DLAW/R

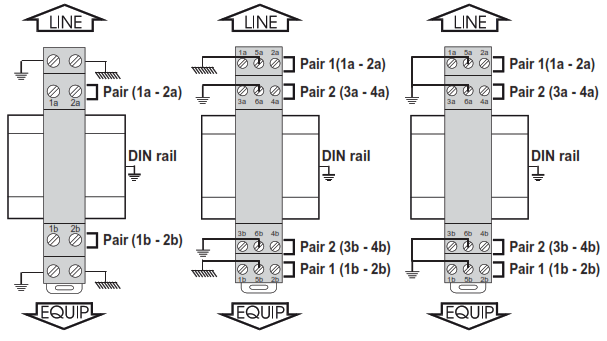

Wiring

(/R)** = spring terminal versions

NOTE :
DLAxx, DLASxx, and DLA2xx surge protectors must be connected to the bonding network through one of the 3 connection points.

NOTE :

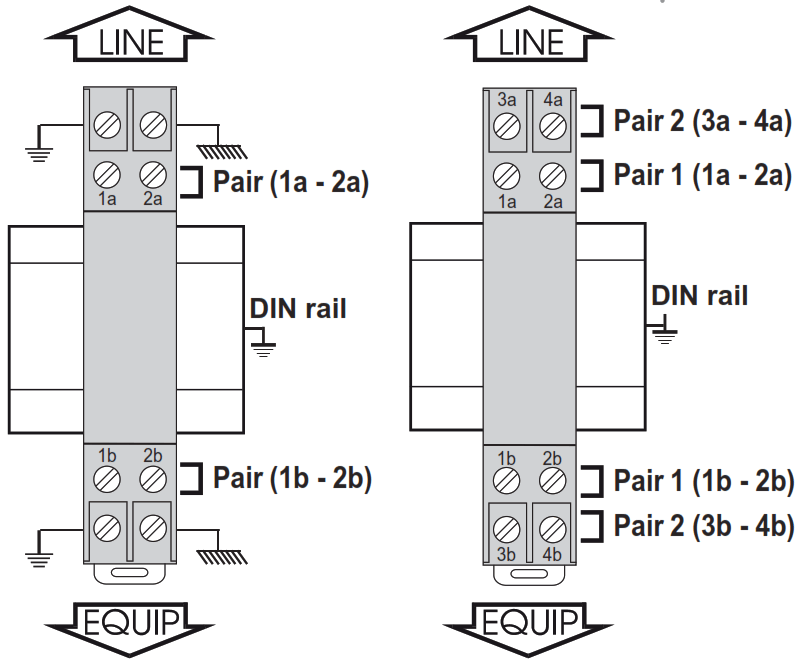

DLUxx surge protectors must be connected to the bonding network through one of the 3 connection points.

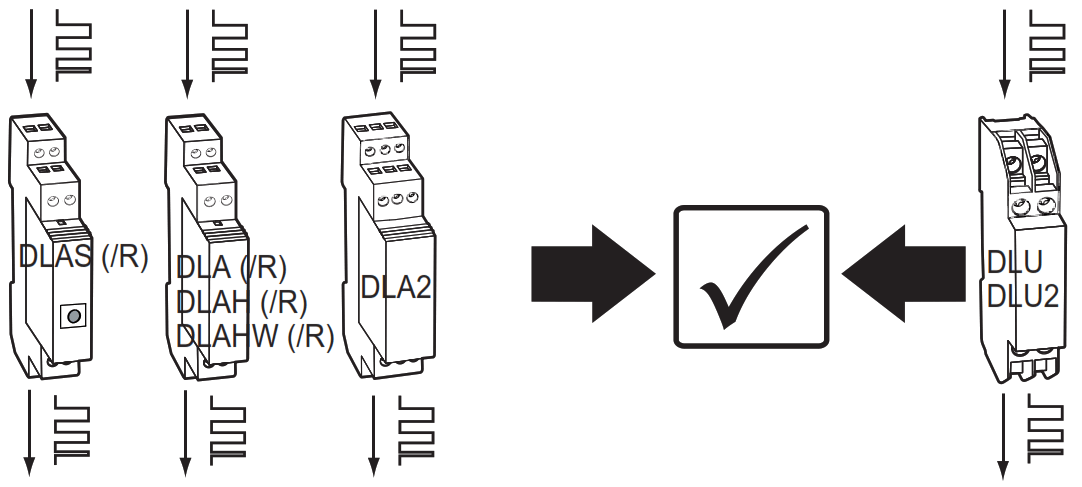

Maintenance

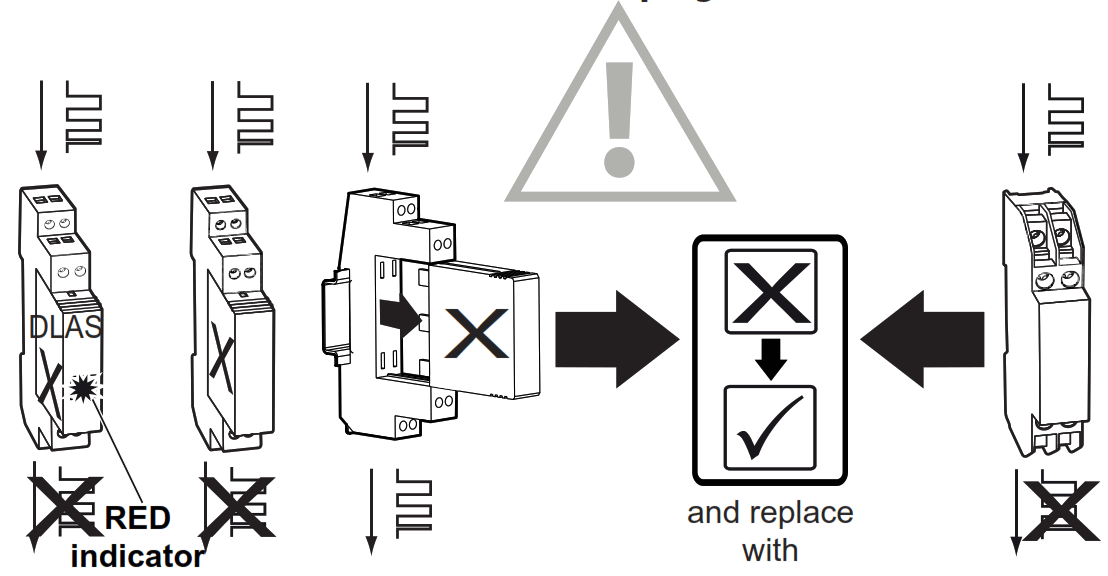

Standard versions: DLAx-xx (/R) , DLAS-xx(/R), & DLUx-xx

The line still on in case of removal plug-in module :

DLAM-xxx, DLAHM-xxx, DLAHWM-xxx (module) or DLU-xxx, DLUH-xxx (product)

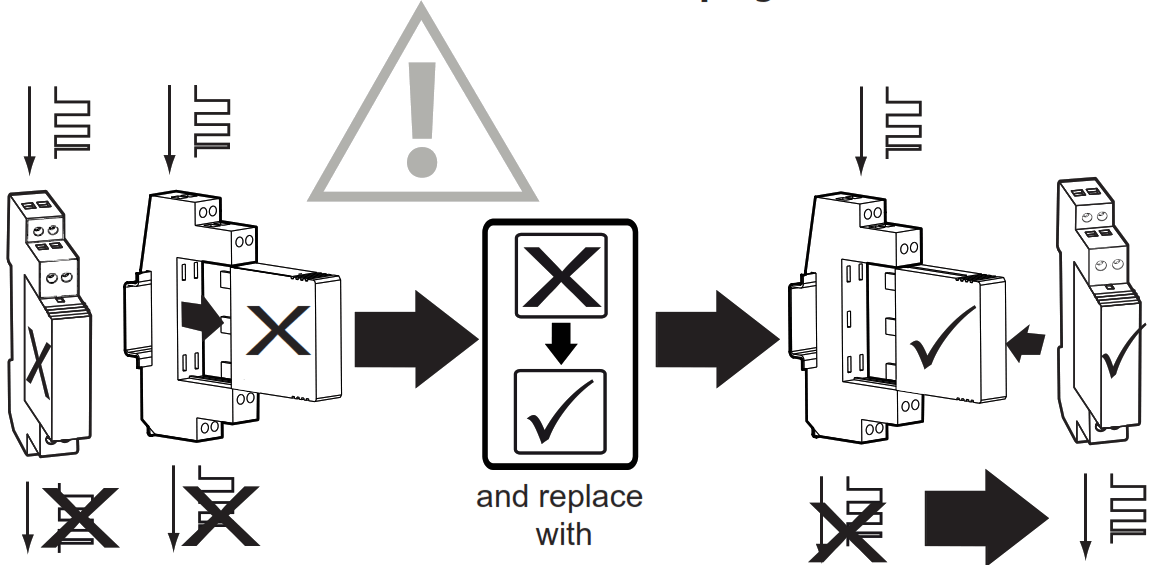

Specific versions: DLAW-xxx (/R), DLAS-xx(/R)

Line-cut-off in case of removal of the plug-in module :

 DLAWM-xxx

ATTENTION

• Installation must be performed only by an electrically skilled operator.
• National electrical installation rules must be followed.
• The unit must be used only as a surge protector and according to the conditions described in this document.
• The device must be selected according to the application and the voltage (see Table 1).
• If the signal is interrupted, then the unit is defective and must be replaced.

This document could be modified without notice. Updated Information on Website.

 2, rue Troyon 92316
Sèvres CEDEX France
SAFETY INSTRUCTIONS
www.citel.fr  www.citel.de
www.citel.us  www.citel.com.cn
www.citel.ru  www. cited.in
