INSTALLATION INSTRUCTIONS
DC surge protector for photovoltaic
 | |||||||

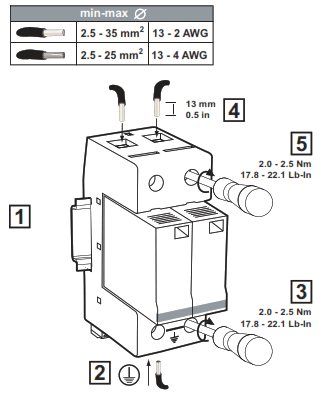

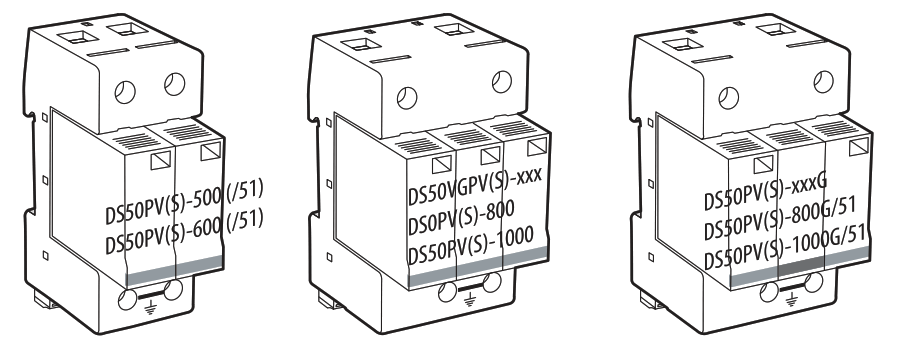

| 005-(S)AdOSSCI | DS5OPV(S)-800 DS5OPV(S)-1000 | 9/008-(S)AdOSSCID/005-(S)AdOSSCI | LS/005-(S)AdOSSCI9/000 HS)AdOSSCI | LS/D008-(S)AdOSSCI LS/009-(S)AdOSSCI | DS5OPV(S)-10000/51 DS50VGPV(S)-500 | LS/OOS HS)AdDAOSSCI 000 L-(S)AdDAOSSCI | |
| . – i (Uocstc) | |||||||
| 500 Uocstc Vdc | • | • | • | • | |||
| 600 Uocstc Vdc | • | ||||||
| 800 Uocstc Vdc | • | • | • | ||||
| 1000 Uocstc Vdc | • | • | • | • | |||
| 1500 Uocstc Vdc | • | ||||||
| IPE | < 1 | mA / (= 0 mA pro provedeni VG a /G | |||||
| ‘max | 40 kA | ||||||

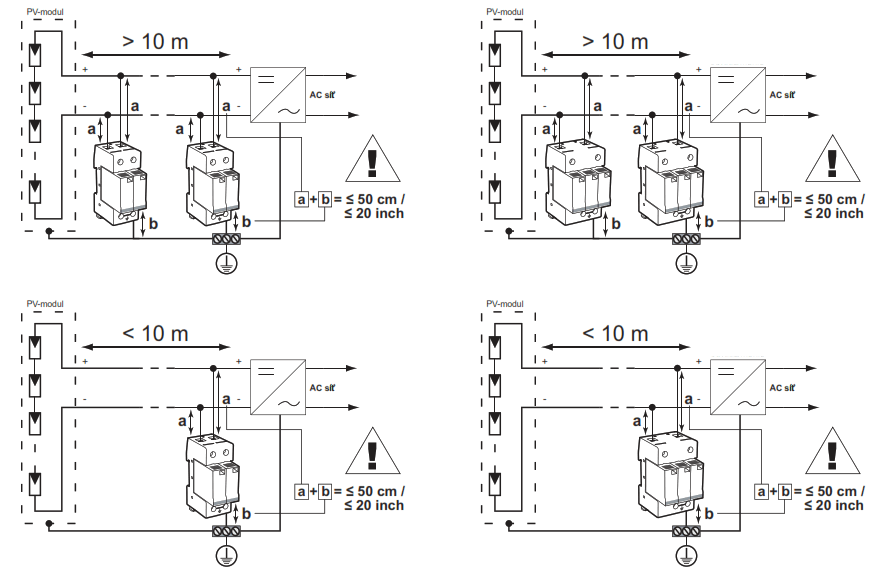

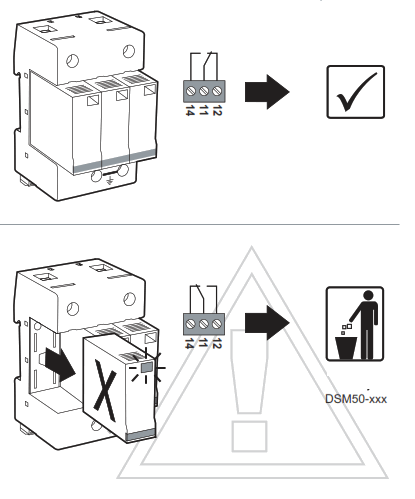

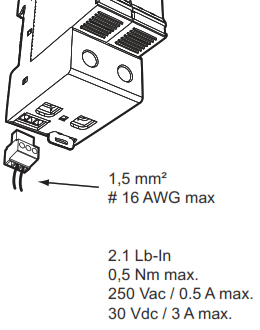

11-12 sepnuto = SPD OK
11-14 rozepnuto = SPD OK
11-12 rozepnuto = SPD OK
ATTENTION !
- Installation must be performed only by electrically skilled operator.
- National electrical installation rules must be followed.
- The unit must be used only as surge protector and according the conditions described in this document.
- Surge protectors must be selected in relation with the maximum DC voltage of the PV installation (see Table 1)
- Depending of the short-circuit current of the PV network, dedicated fuses could be installed in the surge protector branch (see Table 2).
- In case of red indicator, the surge protector must be replaced.
