Ds18 Zxi-574 5x7 Inch 2-way Coaxial Speaker Owner's Manual

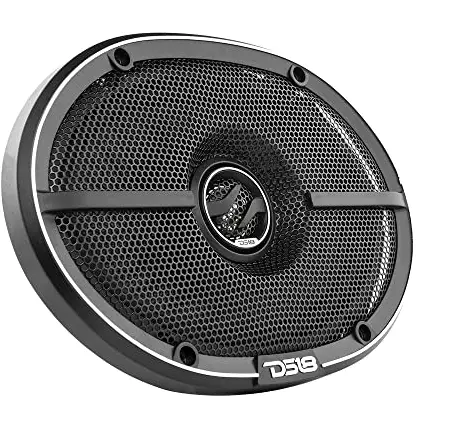

DS18 ZXI-574 5×7 Inch 2-Way Coaxial Speaker

Overview

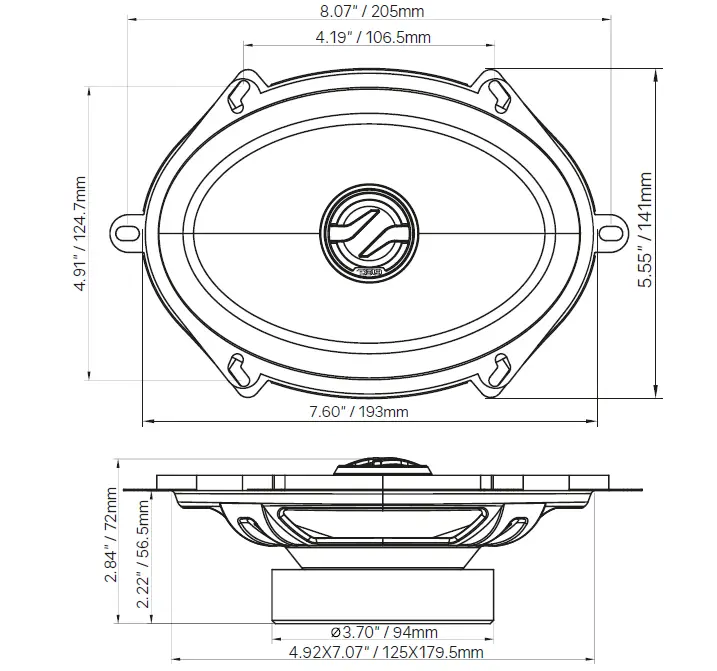

Dimensions

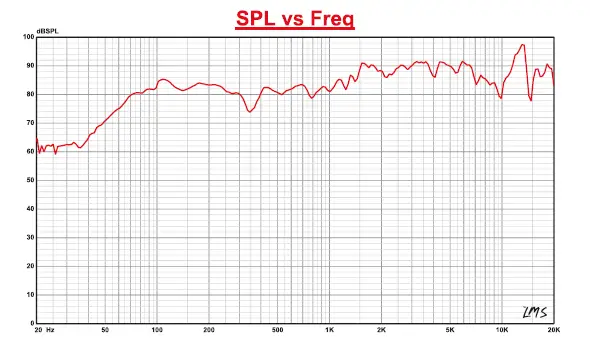

Graph

Specifications

• Nominal Diameter………………………………………………………………….. 5×7″
• Nominal Impedance……………………………………………………………… 4 ohm
• RMS Power Handling…………………………………………………………… 70 Watts
• MAX Power Handling…………………………………………………………… 210 Watts
• Sensitivity (1w/1m)………………………………………………………………….91dB
• Frequency Response…………………………………………………………..40Hz-20KHz
• Recommended HI Pass Crossover………………………………60Hz
• Speaker Type…………………………………………………………………………..2-Way

FOR MORE INFORMATION PLEASE VISIT
DS18.COM

We LIKE IT LOUD
