Ds18 Slc-n69x 6x9 Inch 5-way Coaxial Speaker Owner's Manual

DS18 SLC-N69X 6×9 Inch 5-Way Coaxial Speaker

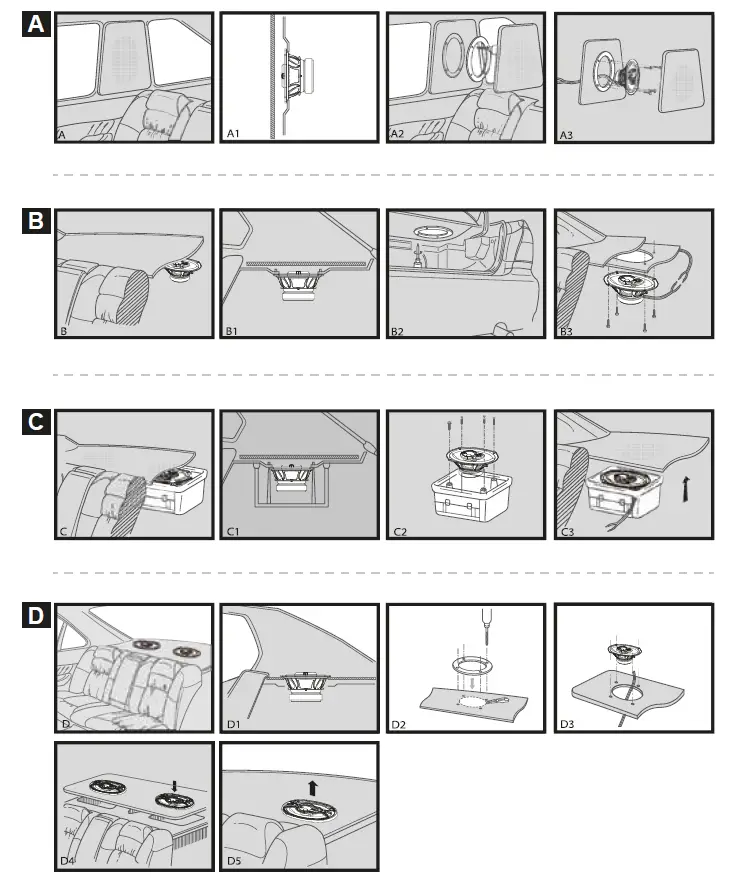

INSTALLATION

Refer to your car stereo owner’s manual

Specifications

• Nominal Diameter: 6×9″
• Nominal Impedance: 4 OHMS
• RMS Power Handling: 65 Watts
• MAX Power Handling: 260 Watts
• Sensitivity (1w/1m):  82.5dB
• Frequency Response:  45Hz-20KHz
• Recommended Lo Pass: 50Hz

woofer

• VC Diameter:  1″
• Cone Material:  Injection Cone
• Surround Material: Rubber
• Basket Material :    Steel
• Basket Color/Finish:  Flat Black
• Magnet Material:  Ferrite
• Magnet Weight:  7.6z

Tweeter

• Mylar Dome Tweeter Diameter:  1″
• Mylar Dome Tweeter VC:  0.56″
• Piezo Super Tweeter:  Ferrite
• Magnet Material:  3x 047″

Measurements

• Overall Diameter: 6.45×9.21″/ 158 x 234mm
• Overall Depth: 3.58″/91mm
• Front Mount Baffle Cutout: 5.98×8.62″/ 125x219mm
• Mounting Depth: 2.95″/75mm
• Motor Diameter: 3.93″/1OOmm
