Ds18 Slc-n65x 6.5 Inch 4-way Coaxial Speaker Owner's Manual

OWNER’S MANUAL

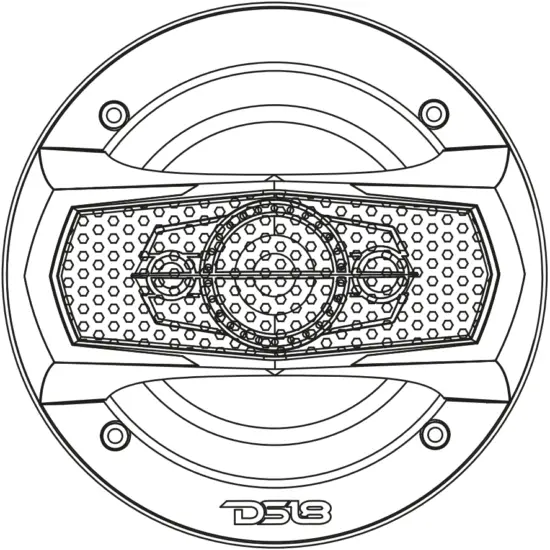

SLC-N65X

6.5″ 4-WAY COAXIAL SPEAKER

INSTALLATION

Refer to your car stereo owner’s manual

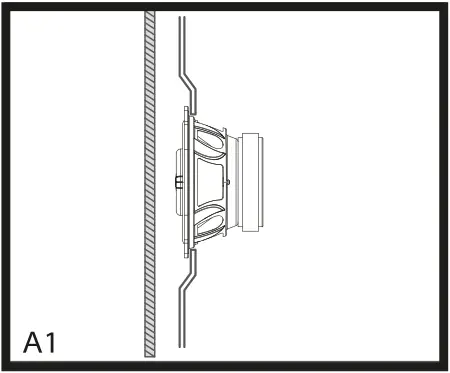

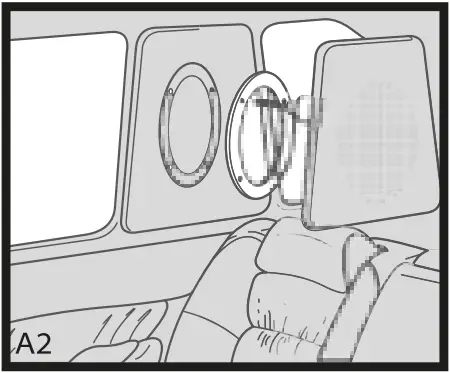

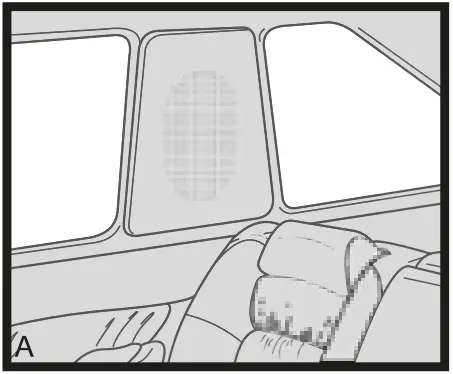

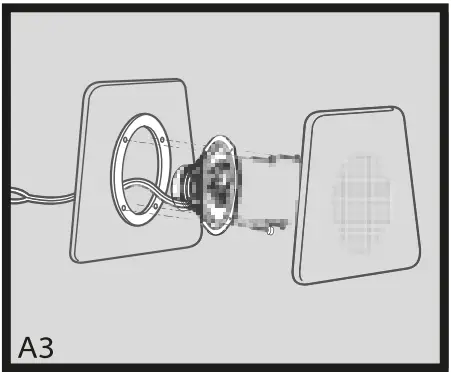

A

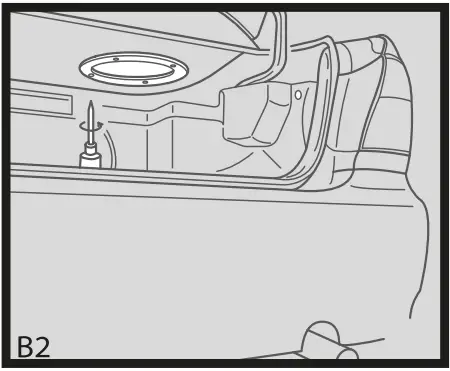

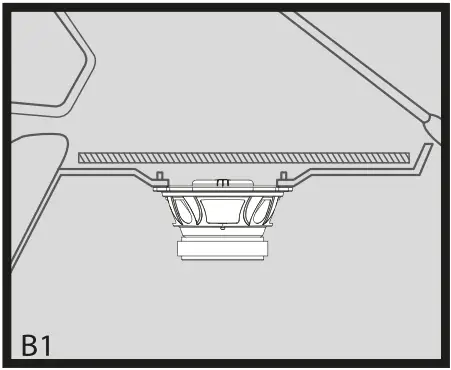

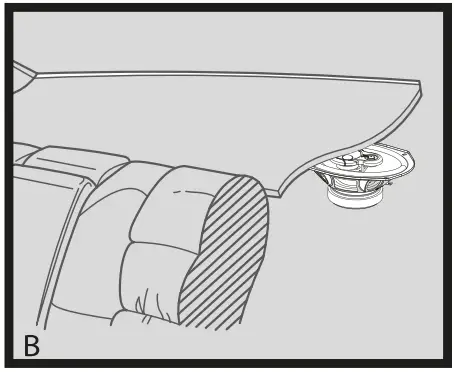

B

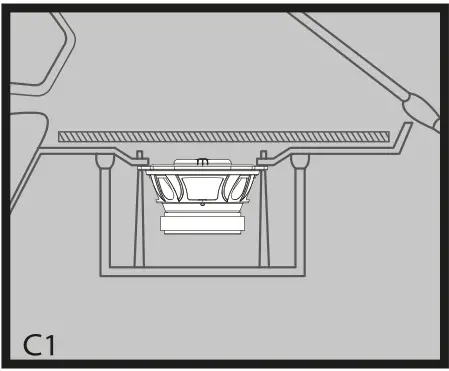

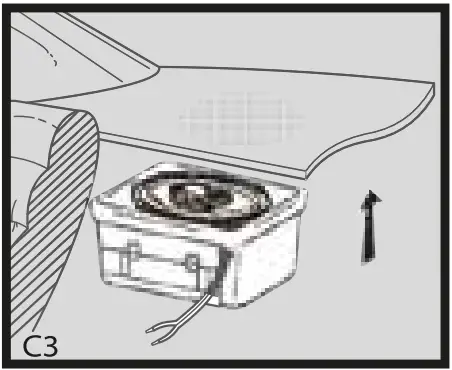

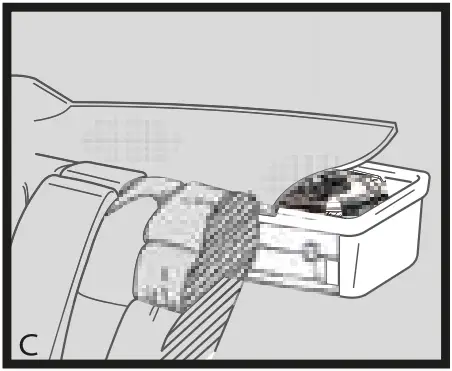

C

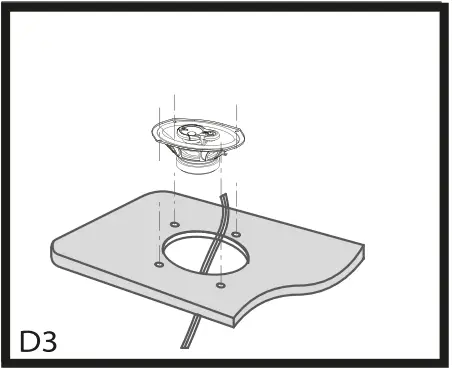

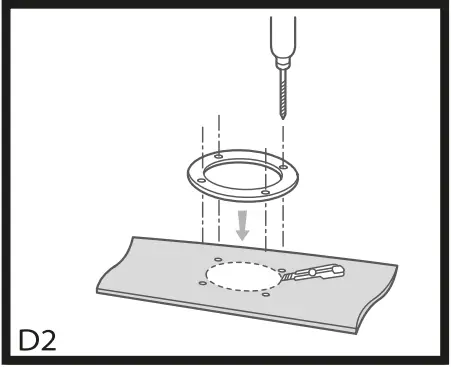

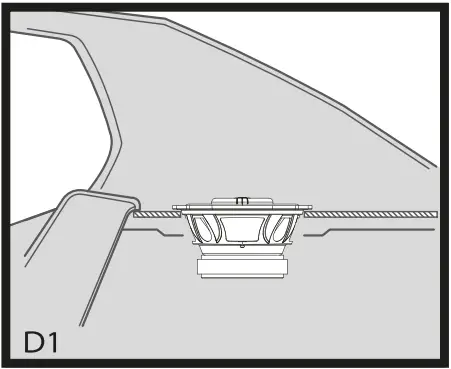

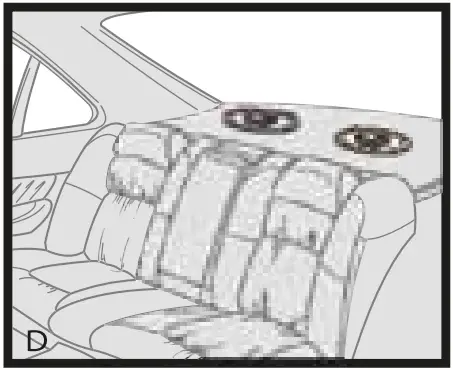

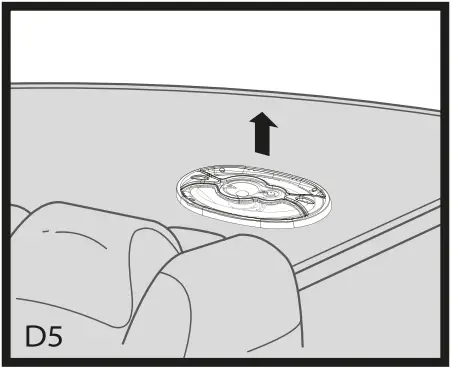

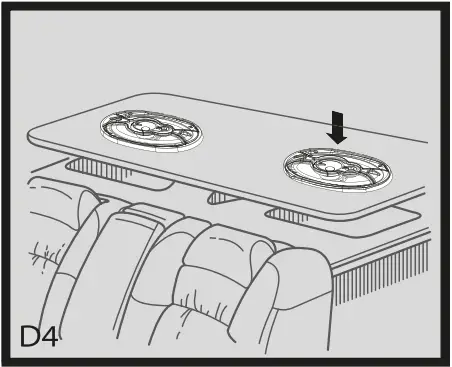

D

Specifications

Nominal Diameter …………. 6.5″
Nominal Impedance ………… 4 ohms
RMS Power Handling ……….. 50 Watts
MAX Power Handling ……….. 200 Watts
Sensitivity (1w/1m) ………. 84.9dB
Frequency Response ………… 65Hz-20KHz
Recommended Lo Pass Crossover … 70Hz

woofer

VC Diameter …………….. 3″
Cone Material …………… Injection Cone
Surround Material ……….. Rubber
Basket Material …………. Steel
Basket Color/Finish …….. Flat Black
Magnet Material …………. Ferrite
Magnet Weight …………… 12oz

Tweeter

Mylar Dome Tweeter Diameter .. 1″
Mylar Dome Tweeter VC …….. 0.54”
Piezo Super Tweeter ………. 2x 047″
Magnet Material ………….. Ferrite

Measurements

Overall Diameter …………. 6.22″ / 158mm
Overall Depth ……………. 2.83″ / 72mm
Front Mount Baffle Cutout …. 4.92″ / 125mm
Mouting Depth ……………. 2″ / 53mm
Motor Diameter …………… 3.11″ / 79mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
