Ds18 Nxl-69 High End Coaxial Speaker Pair Owner's Manual

OWNER’S MANUAL
NXL-69
6X9″ MARINE GRADE COAXIAL
SPEAKER WITH RGB LED LIGHTS

FEATURES

• 2-Way Coaxial Speaker for Marine & Motorsports.
• Continuous Power Handling 125W RMS
• Peak Music Power 375W MAX
• Sensitivity: 92dB at 1W/1M
• Nominal Impedance: 4 Ohm
• IP65 Marine Grade Compliant Specifications, 100% UV Stable.
• Motor Structure Use Y35 Ferrite Main Magnet and Reverse Neodymium Magnet.
• Copper Ring on Motor structure for far-field performance.
• Injection Molded Polypropylene Cone with UV Protection and Butyl (rubber) Surround.
• Injection Molded composite ASA Grill with UV protection Coating
• Integrated RGB LED Lighting
• LED Controller with Smartphone App Available For Multi-Function RGB LED Lighting option (Sold Separately)

PACKING INCLUDES

• One Pair 6×9” Marine Grade Coaxial Speaker with RGB LED Lights
• 2X1.5M #18 Speaker Input Wires With Fast Terminal
• 2X1.5M #22 RGB LED Power Input Wires With Fast Terminal
• 12XM4 Philips lnner Hex Head 304 Stailess Screw(3mm Hex Tool)
• Owners Manual

READ BEFORE INSTALLATION

1. Be sure to carefully read and understand the instructions before attempting to install these Speakers.
2. For Safety, Disconnect the Negative Battery Terminal from the Battery Prior to Beginning the installation process.
3. For Easier Assembly, We Suggest you Run all Wires Prior to Mounting Speakers in Place.
4. Use High-Quality Connectors for a Reliable lnstallation and to Minimize Signal or Power Loss.
5. Be Careful not to Drill or Cut into Gas Tanks, Fuel Lines, Brake or Hydraulic Lines, Vacuum Lines, or Electrical Wiring while installing. lf installation in a Boat, be Careful Not to Cut or Drill Through the Main Hull.
6. Never Run Wires Underneath the Vehicle. In order to provide the best Protection. Make Sure to RunWires lnside the Vehicle or Hull.
7. Avoid Running Wires Over or Through Sharp Edges. Use Rubber or Plastic Gromets to Protect any Wires Routed Through Metal, Specially the Firewall.

INSTALLATION

1. Determine where the Speakers will be mounted. Be sure that the Mounting Area is Deep and Wide Enough for the Speaker to Fit. PLEASE ONLY MOUNT ON A FLAT SURFACE.
2. Refer to the Specification Chart to Determine the Proper Diameter for the Hole you need to Cut.
3. Mark the Location for the Mounting Screws. Drill the Holes with a 1/8” bit.
4. Feed the Speaker wires through the cutout and Connect to the Speaker Terminals. Watch out for Proper Polarity when Connecting the Wires.
5. Fit Speaker and Mount into Place using 6 screws.
6. Tighten the Screws untill the Speaker is Snug in Place.
7. LED CONNECTIONS: There are two options to choose from:

WIRING

1. lf you have an LED Control Module (LED-BTC), Connect as shown in the Following diagram:

2. To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram:
   1. Green Color: “G” Fast Terminal Connect to Battery Negative
   2. Red Color: “R’ Fast Terminal Connect to Battery Negative
   3. Blue Color: “B” Fast Terminal Connect to Battery Negative
   4. Purple Color: “R” And “B” Fast Terminal Connect to Battery Negative
   5. Yellow Color: “R’ And “G’ Fast Terminal Connect to Battery Negative
   6. Cyan Color: “B” And “G” Fast Terminal Connect to Battery Negative
   7. While Color:”R’ And ‘B’ And “G’ Fast Terminal Connect to Battery Negative

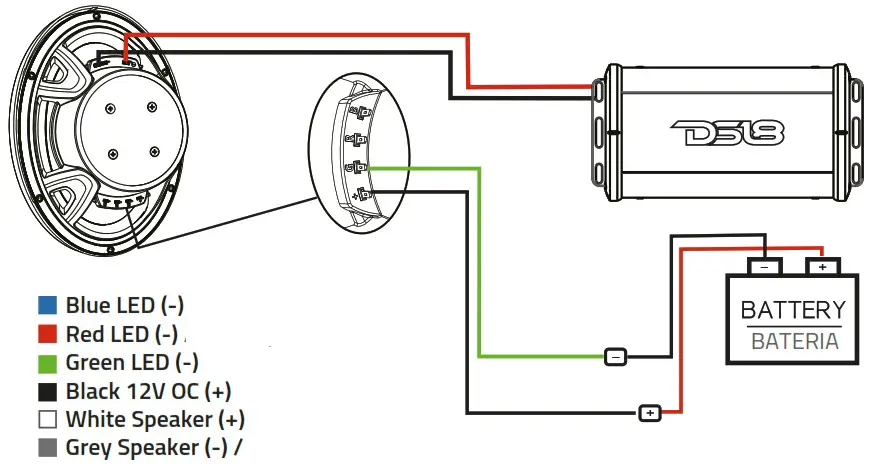

EXAMPLE OF GREEN LIGHT CONNECTION:

SPECIFICATIONS

GENERAL SPECIFICATIONS
Nominal Diameter………………………………………………………..6×9 ” / 152,4X228.6mMM
Nominal Impedance……………………………………………………..4 OHM
RMS Power Handling……………………………………………………125 Watts
MAX Power Handling ………………………………………………….375 Watts
Sensitivity (1w/1m)………………………………………………………..92OB
Frequency Response………………………………………………………4OHz-2OKHz
Recommended Hi Pass Crossover…………………………………60Hz

BODY – FEATURES
UV Compliant…………………………………………………………….YES, 100% Stable
Marine Grade Type……………………………………………………..IPOS
RGB LED…………………………………………………………………..YES, RGB integrated
Grill Type……………………………………………………………………Injection Molded Composite ASA with UV Protection coating
Sold as Pair…………………………………………………………………. Yes

WOOFER SPECIFICATIONS
Voice Coil Diameter…………………………………………………..1.4″ /35.5mmM
VC Former Material……………………………………………………Kapton
Winding Material…………………………………………………………SV
Cone Material………………………………………………………………on Molded Polypropylene + UV Compliant
Surround Material……………………………………………………… Butyl (Rubber)
Basket Material…………………………………………………………..High Temp Injection Molded Composite with UV Protection coating
Magnet Material………………………………………………………….Ferrite (Y35) + Neodymium (N35)
Magnet Weight……………………………………………………………24 OZ + 0.75 OZ

TWEETER SPECIFICATIONS
Voice Coil Diameter……………………………………………………1 / 25.4 MM
Voice Coil Former Material………………………………………..Kapton
Winding Material………………………………………………………..CCAW
Diaphragm Material……………………………………………………PEN
Magnet Material………………………………………………………….Neodimio (N38H)
Magnet Weight……………………………………………………………0.51 0z

THIELE & SMALL PARAMETERS

SPEAKER MEASUREMENTS
Overall Diameter……………………………………………………………..7.4″ x 10.2” / 189 x 260 mm
Overall Depth………………………………………………………………….4.52″ / 115 mm
Front Mount Baffle Cutout……………………………………………..8.6″ x 5.9” / 220 x 150 mm
Mounting Depth……………………………………………………………..3.11″ / 79 mm
Motor Diameter………………………………………………………………4.33″ / 110 mm

COLORS AVAILABLE
Satin Black………………………………………………………………………NXL-69/BK
Glossy White…………………………………………………………………. NXL-69 /WH

WARRANTY

Please visit our website DS18.com for more information on our warranty policy

We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.

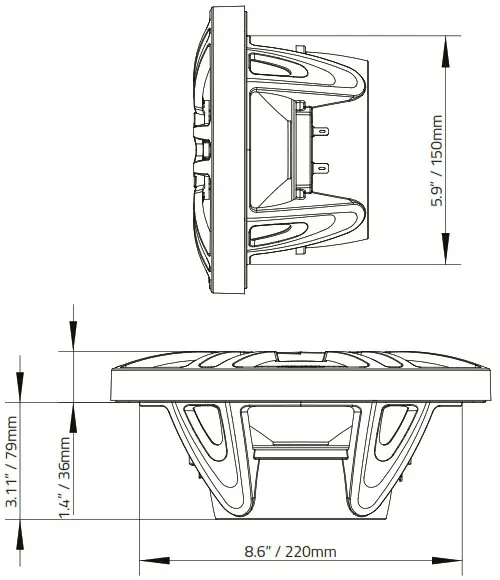

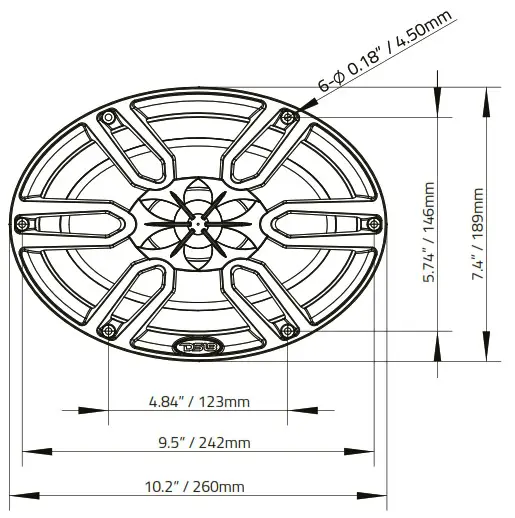

DIMENSIONS

2 – WAY SPEAKER

FOR MORE INFORMATION
PLEASE VISIT DS18.COM

WE LIKE IT LOUD
