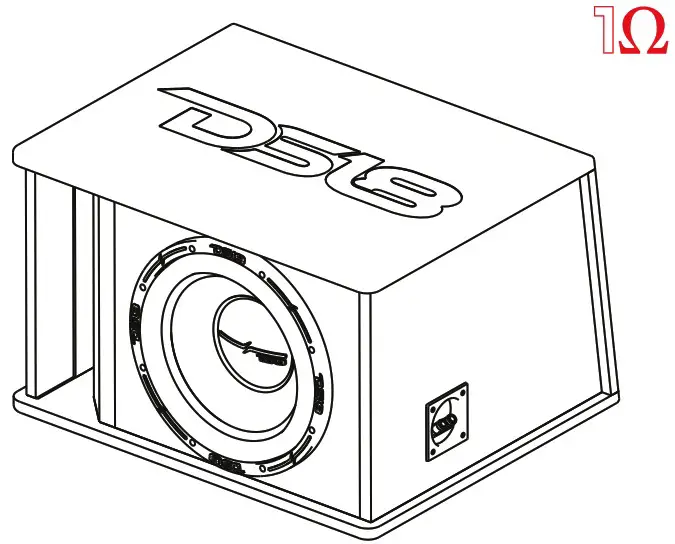

OWNER’S MANUAL
ZR112LD
SINGLE 12” SUBWOOFER WITH
LOW TUNE PORTED BOX LOADED
ZR112LD
SPECIFICATIONS
Speaker Type/Size………………………………………………………………………..Single 12″ / 316mm
Total Impedance…………………………………………………………………………. 1 ohm
Total RMS Power Handling…………………………………………………………..800W
Total MAX Power Handling ………………………………………………………..1600W
Sensitivity (1w/1m)……………………………………………………………………….84dB
Frequency Response ………………………………………………………………….. 20Hz-200Hz
Recommended Lo Pass Crossover……………………………………………… 70Hz
MOTOR
Voice Coil Diameter……………………………………………………………………2.5”/61.6 mm
Voice Coil Former Material ……………………………………………………….Aluminum
Winding Material……………………………………………………………………….Copper
Cone Material…………………………………………………………………………… Non-Pressed Paper
Dustcap Material……………………………………………………………………… PPI
Surround Material…………………………………………………………………….. Foam
Basket Material………………………………………………………………………….Steel
Magnet Material…………………………………………………………………………Ferrite
Magnet Weight………………………………………………………………………….100 oz
BOX SPECIFICATIONS
Internal Volume……………………………………………………………………… 79.3L
Port Tune……………………………………………………………………………….. 29 Hz
Load Configuration……………………………………………………………….. Ported Box
Box Type…………………………………………………………………………………Singe 12”
Box Material………………………………………………………………………….. 3/4” (19mm) MDF
Finish Material…………………………………………………………………………Black Carpet
Logo ……………………………………………………………………………………… Red Stitched
-3Db Dropping Point……………………………………………………………. 24 Hz

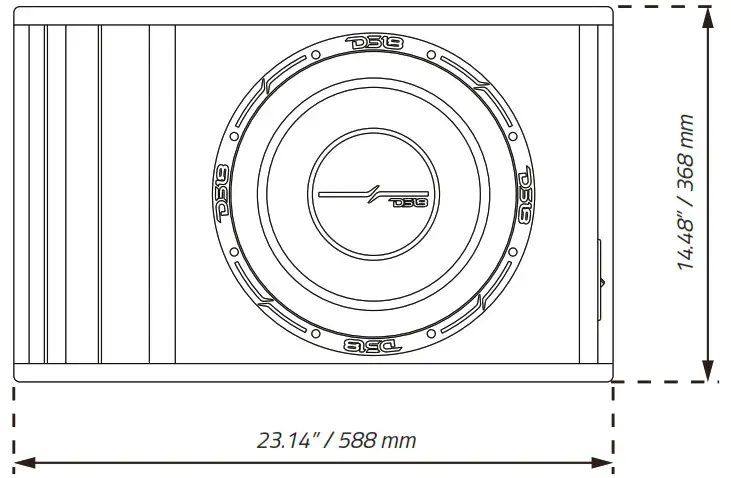

MEASUREMENTS
Height……………………………………………………………………………………. 14.48″ / 368 cm
Width……………………………………………………………………………………… 23.14″ / 588 cm

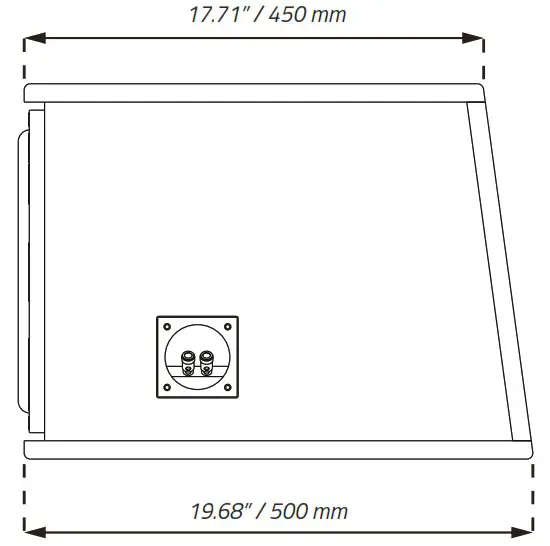

Depth 1……………………………………………………………………………………17.71″ / 450 mm
Depth 2………………………………………………………………………………….. 19.68″ / 500 mm
