DS18 ZR212LD Dual 12 Inch Subwoofer

ZR212LD

SPECIFICATIONS

• Speaker Type/Size: Dual 12/ 316mm
• Total Impedance :1 ohm
• Total RMS Power Handling:1600W
• Total MAX Power Handling:3200W
• Sensitivity (1w/1m): 86dB
• Frequency Response:20Hz-200Hz
• Recommended Lo Pass Crossover:86dB

MOTOR

• Voice Coil Diameter: 2.5/61.6 mm
• Voice Coil Former Material ;Aluminum
• Winding Material:Copper
• Cone Material:Non-Pressed Paper
• Dustcap Material:PPI
• Surround Material : Foam
• Basket Material:Steel
• Magnet Material :Ferrite
• Magnet Weight :100 oz

BOX SPECIFICATIONS

• Internal Volume:141.6L / 5 ft3
• Port Tune:29 Hz
• Load Configuration:Ported Box
• Box Type: Double 12
• Box Material: 3/4 (19mm) MDF
• Finish Material :Black Carpet
• Logo:Red Stitched
• -3Db Dropping Point: 24 Hz

MEASUREMENTS

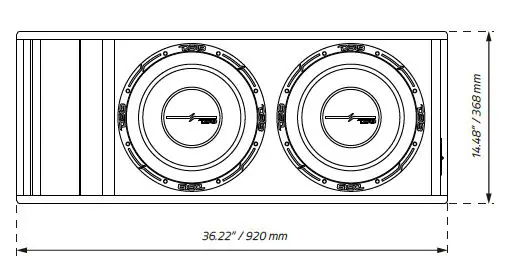

• Height: 14.48 / 368 cm
• Width : 36.22 / 920 cm

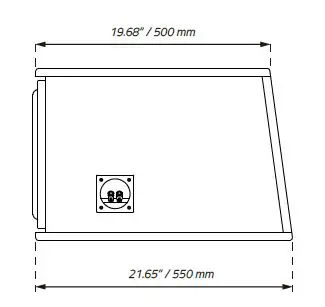

• Depth 1 :19.68 / 500 mm
• Depth 2 : 21.65 / 550 mm

FOR MORE INFORMATION PLEASE    VISIT DS18.COM
