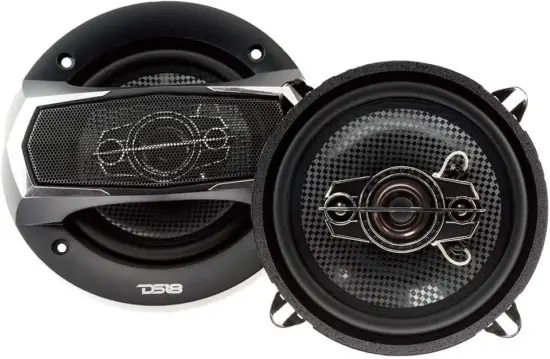

DS18 SLC-N525X 5.25 Inch 4-Way Coaxial Speaker

INSTALLATION

Refer to your car stereo owner’s manual

Specifications

• Nominal Diameter:  5.25
• Nominal Impedance: 4 OHMS
• RMS Power Handling: 40 Watts
• MAX Power Handling: 160 Watts
• Sensitivity (1w/1m):  84.5dB
• Frequency Response:  80Hz-20KHz
• Recommended Lo Pass: 90Hz

woofer

• VC Diameter:  Injection Cone
• Cone Material:  Rubber
• Surround Material: Steel
• Basket Color/Finish:  Flat Black
• Magnet Material:  Ferrite
• Magnet Weight:  100z

Tweeter

• Mylar Dome Tweeter Diameter:  1″
• Mylar Dome Tweeter VC:  0.54″
• Piezo Super Tweeter:  Ferrite
• Magnet Material:  2x 047″

Measurements

• Overall Diameter:  5.11″/ 130mm
• Overall Depth:  2.55″/65mm
• Front Mount Baffle Cutout:  4.56″/ /116mm
• Mounting Depth:  1.96″/5Omm
• Motor Diameter:3.    11″/ 79mm
