Lighting Olympia Fi5 Tunable white LED neon flex

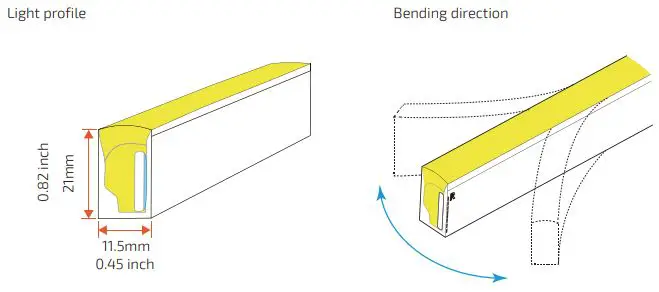

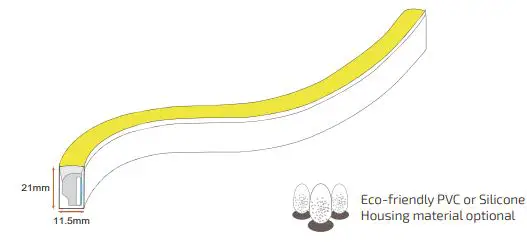

Dimension
- Gross weight: 0.4kg/m
- Dimmable: DALI, PWM, DMX, Triac
- Installation Temp.: 0°C to +55°C
- Ambient Temp.: -25°C to +55°C
- Min. Bending : 80mm
- Beam Angle : 120 degree
Features
- Uniform and even light output
- Flat surface with 120 degree beam angle
- Dimmable with Dali, PWM, DMX,Triac
- Available color both warm white and cold white
- Full encapsulated with IP68 Level
- High Reliability
- 3 or 5 Years warranty
Applications
- Building facade, outline
- Applications
- Cove lighting
- Sign and advertising lighting
- Linear lighting
- Additional lighting
- Decorative lighting

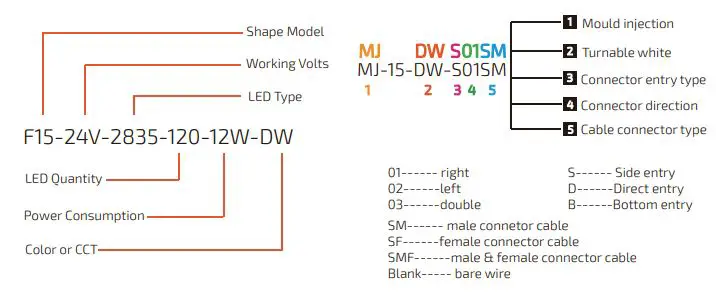

Model Encoding
Technical Specification
| Model | F15-24V-2835-120-DW |
| Operating voltage | 24V |
| Power consumption | 15W/M |
| Working Mode | PWM CV |
| LED type | SMD2835 |
| LED Quantity | 120 pcs/m |
| Available Color | 2200K/2700K/3000K+5700K |
| Min. cutting Unit | 12 LEDs |
| Min. cutting length | 10cm |
| Max. length single feed | 10m |
| Max. length double feed | 20m |
| Bending direction | Horizontally |
| Lumen maintenance | 70 000 Hours L70 25°C , 50 000 Hours L70 50°C |
| Housing material | Eco PVC or silicone |
| Installation temperature | 0°C to +55°C |
| Ambient temperature | -25°C to +55°C |
| Ingress protection | IP68 wet location submersible* to 2m |
| Warranty | 3 years as standard, 5 years warranty maximum |

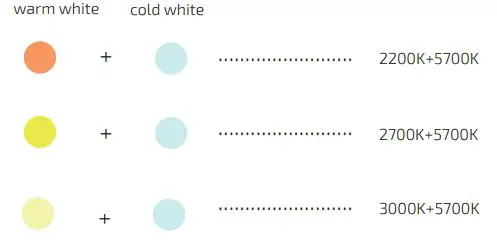

Color Combination

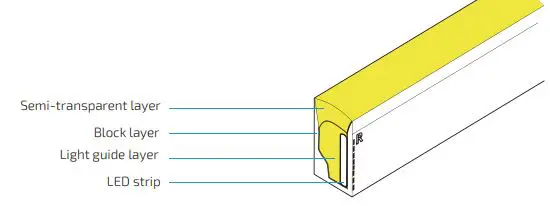

Construction
Physical Specification

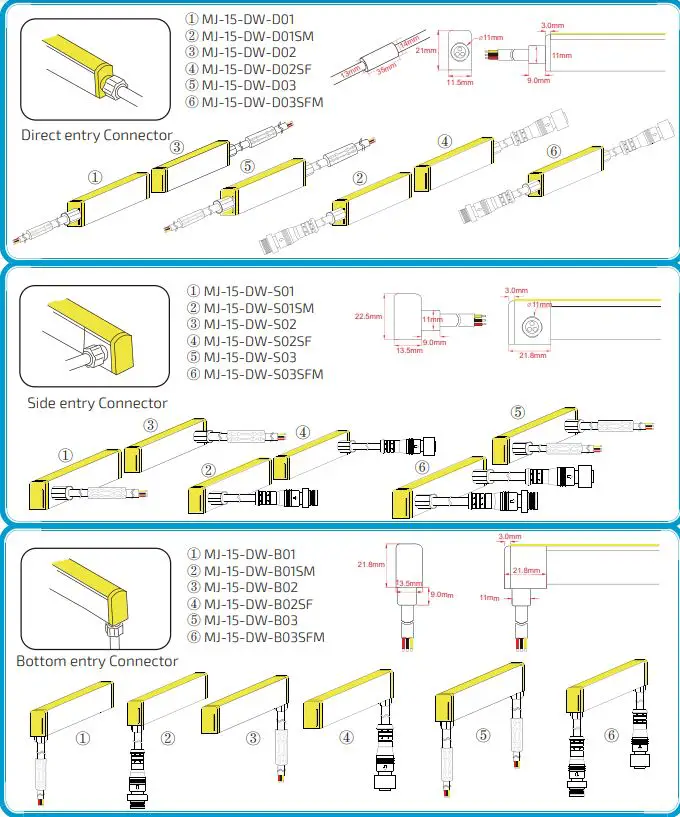

Mold injection connector

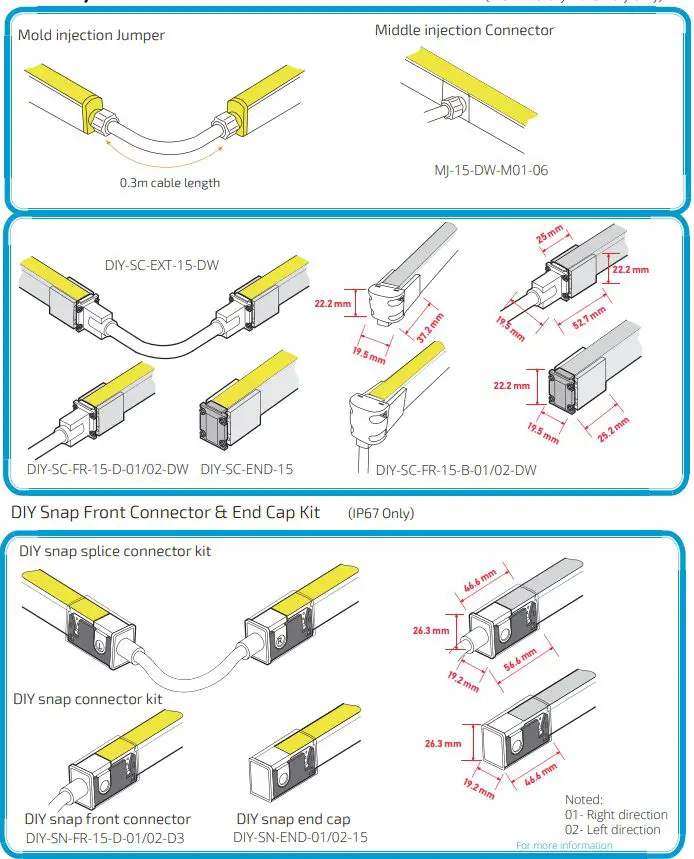

Other Accessories
Mounting Channel
Packing
- Fixture Length
787.4in(20m)
787.4in(30m - Paper Reel
D12.99*H6.18in(33*15.7cm)
D12.99*H6.18in(33*15.7cm) - Carton Dimension
33*33*18cm
33*33*18cm - Gross Weight
17.63 lbs ( 8 kg )
26.45 lbs ( 12 kg )
- White box Dimension
- 13.78*1.65*18.11in(38*3*38 cm)
- 21.6*1.38*18.9in(55*3.5*48cm)
- Carton Dimension
- 41*41*16cm
- 57*49*19cm
- Gross Weight
- 17.63 lbs ( 8 kg)
- 44.09 lbs ( 20 kg)
- Fixture Length W
- 196.85in(5m)
- 393.7in(10m)
- White box Quantity
- Max 4pcs
- Max 5pcs

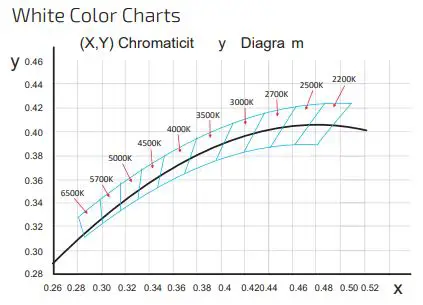

Testing
| 2200K | 2238±102 | 0.0000 Tx: CCT of the source |
| 2500K | 2460±120 | 0.0000 for Tx<2870K 0.000±0.0060 |
| 2700K | 2725±145 | 0.0000 For Tx≥2870K |
| 3000K | 3045±175 | D uv (Tx)±0.0060 0.0001 where |
| 3500K | 3465±245 | 0.0005 D uv(Tx)=57700x(1/Tx)2 |
| 4000K | 3985±275 | -44.6x(1/Tx) 0.0010 +0.00854 |
| 4500K | 4503±243 | 0.0015 Remark: |
| 5000K | 5029±283 | 1) TF is choosen to be at 100K steps (2300,2400…. 6400K) 0.0020 the ten nominal CCTs listed in table 1. |
| 5700K | 5667±355 | 0.0025 2) Δ T=1.1900×108 x T 3_ |
| 6500K | 6532±510 | 0.0031 3) Same as in the DUV tolerance range |
Loading Chart
| Rated power | 35W | 60W | 75W | 80W | 100W | 120W | 150W | 185W | 240W | 320W |
| 15W | 1.5m | 3m | 4m | 4.2m | 5m | 6m | 8m | 9.8m | 12.5m | 17m |
Recommendation of extension wire
| Watts of light | 22AWG | 20AWG | 18AWG | 17AWG | 16AWG | 14AWG | 12AWG | 10AWG |
| 0.34mm2 | 0.53mm 2 | 0.82mm2 | 1.04mm2 | 1.38mm2 | 2.07mm2 | 3.29mm2 | 5.62mm2 | |
| 10W | 36m | 60m | 100m | 120m | 140m | 240m | 400m | 600m |
| 20W | 18m | 30m | 50m | 60m | 70m | 120m | 200m | 300m |
| 30W | 12m | 20m | 30m | 38m | 45m | 80m | 130m | 200m |
| 40W | 8m | 15m | 22m | 28m | 35m | 60m | 95m | 140m |
| 50W | 6m | 12m | 18m | 22m | 28m | 48m | 75m | 105m |
| 60W | 5m | 10m | 15m | 18m | 22m | 36m | 60m | 88m |
| 70W | / | 8m | 12m | 14m | 18m | 30m | 50m | 72m |
| 80W | / | 6m | 10m | 11m | 14m | 24m | 40m | 58m |
| 90W | / | 4m | 7m | 8m | 10m | 18m | 30m | 45m |
| 100W | / | / | 5m | 6m | 7m | 12m | 22m | 32m |
| 110W | / | / | 3m | 4m | 5m | 8m | 15m | 22m |
| 120W | / | / | 2m | 2.5m | 3m | 0m | 8m | 12m |

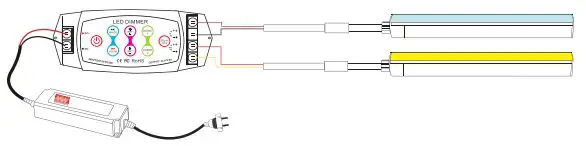

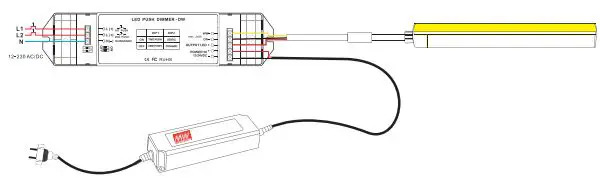

Controller Diagram
BC-310 LED CCT Controller
K2 CCT Rotary Controller
BC-422 Constant Voltage CCT Controller
