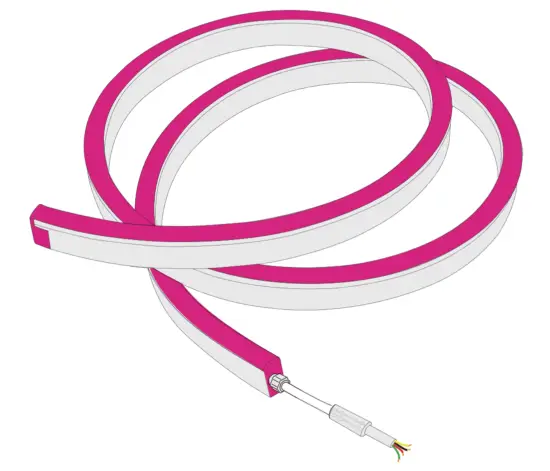

Lighting Olympia F5 Multi color RGB series LED neon flex

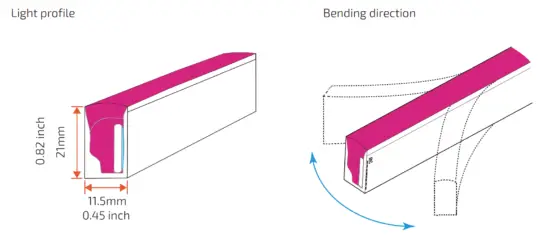

Dimension

Features

Uniform and even light output
Flat surface with 120 degree beam angle
60LEDs or 72LEDs,24V or 48V optional

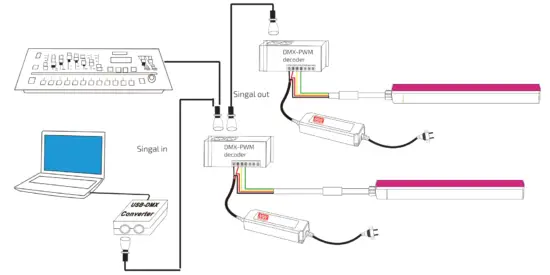

Dimmable with Dali, 0/1-10, DMX,PWM
Full encapsulated with IP68 Level
High Reliability
3 or 5 Years warranty

Applications

Building facade, outline
Cove lighting
Sign and advertising lightin
Linear lighting
Additional lighting
Decorative lighting

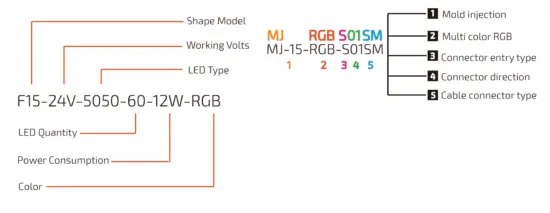

Model Encoding

S—— Side entry
D——Direct entry
B——Bottom entry

01—— right
02——left
03——double
SM—— male connetor cable
SF——female connector cable
SMF——male & female connector cable
Blank—–bare wire

Technical Specification

Model	F15-24V-5050-60-RGB	F15-24V-5050-72-RGB	F15-48V-5050-60-RGB
Operating voltage	24V	24V	48V
Power consumption	12W/M	13W/M	12W/M
Working Mode	PWM CV	PWM CV	PWM CV
LED type	SMD5050	SMD5050	SMD5050
LED Quantity	60 pcs/m	72 pcs/m	60 pcs/m
Available Color	RGB	RGB	RGB
Min. cutting Unit	6 LEDs	6 LEDs	15 LEDs
Min. cutting length	10cm	8.33cm	25cm
Max. length single feed	10m	10m	20m
Max. length double feed	20m	20m	40m
Bending direction	Horizontally
Lumen maintenance	70 000 Hours L70 25°C , 50 000 Hours L70 50°C
Housing material	Eco PVC or Silicone
Installation temperature	0°C to +55°C
Ambient temperature	-25°C to +55°C
Ingress protection	IP68 wet location submersible* to 2m
Warranty	3 years as standard, 5 years warranty maximum

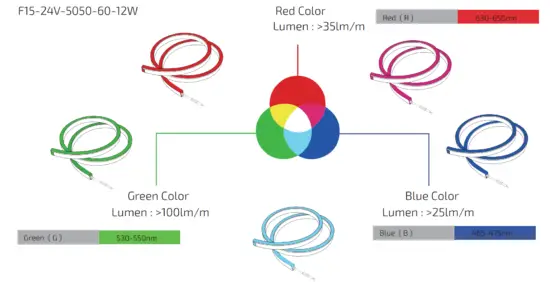

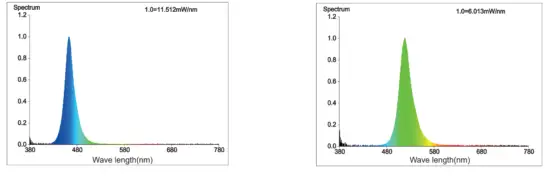

Lumen Output

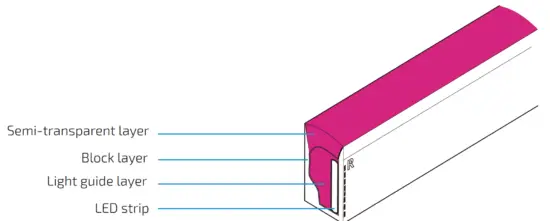

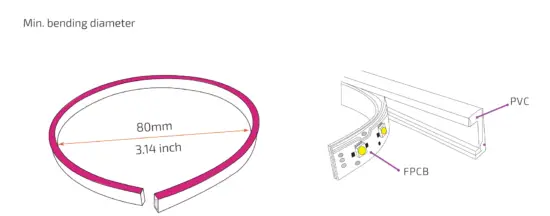

Construction

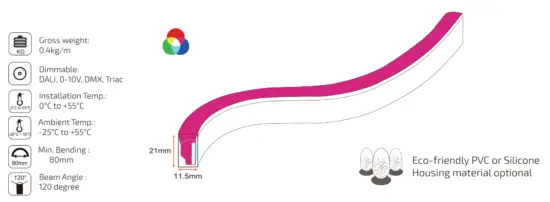

Physical Specification

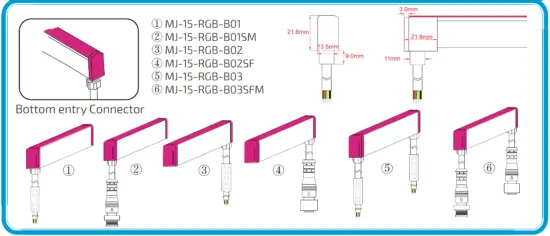

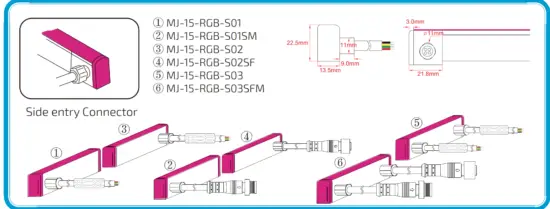

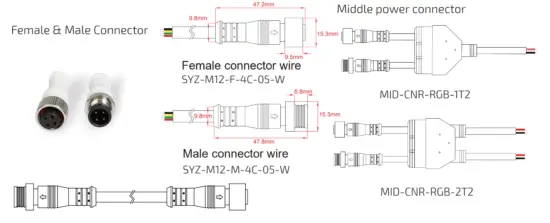

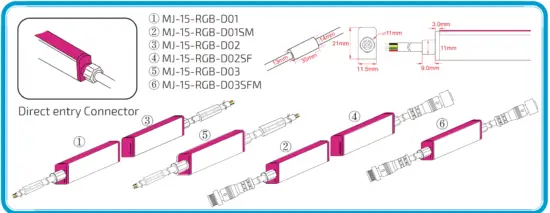

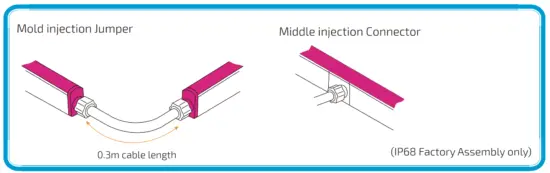

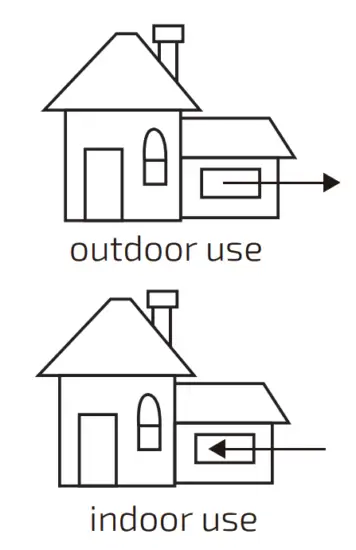

Mold injection connector

(IP68 Factory Assembly only)

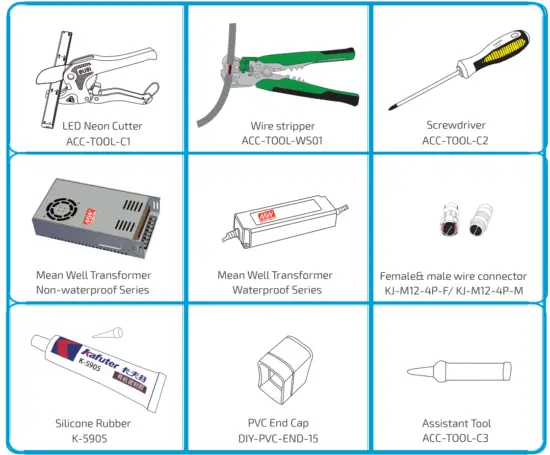

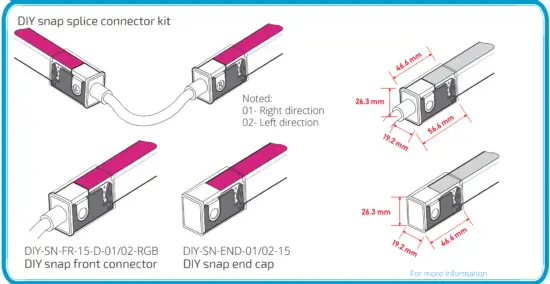

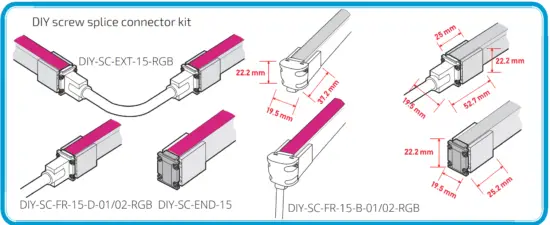

DIY Screw & Snap Connector Kit (IP67 Only)

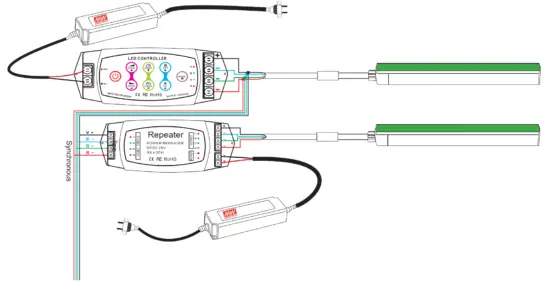

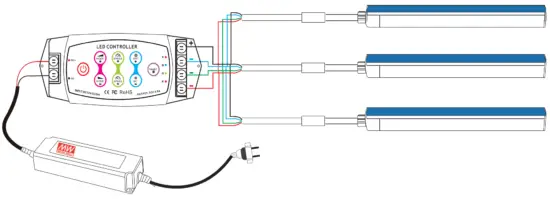

Other Accessories

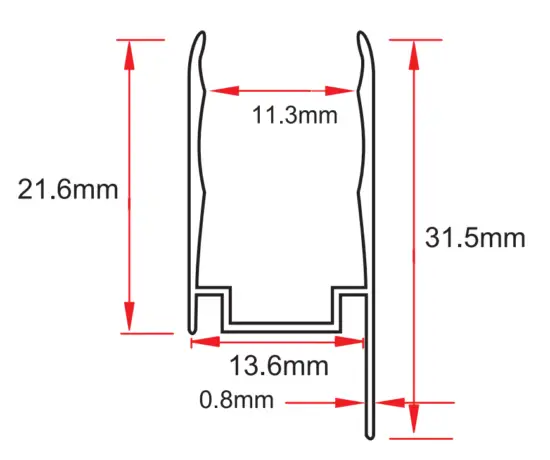

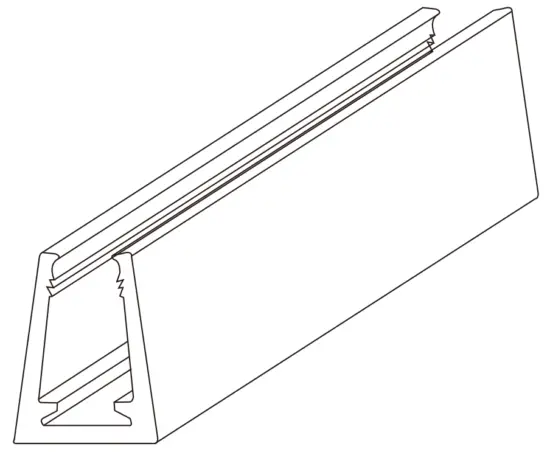

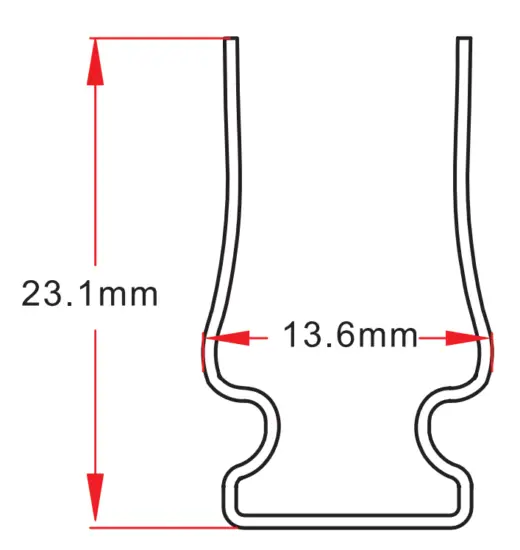

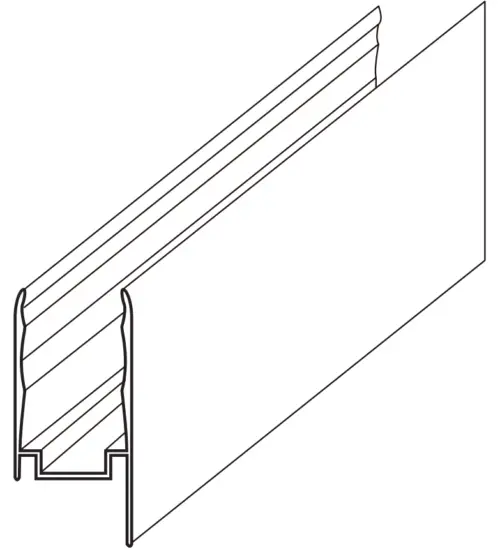

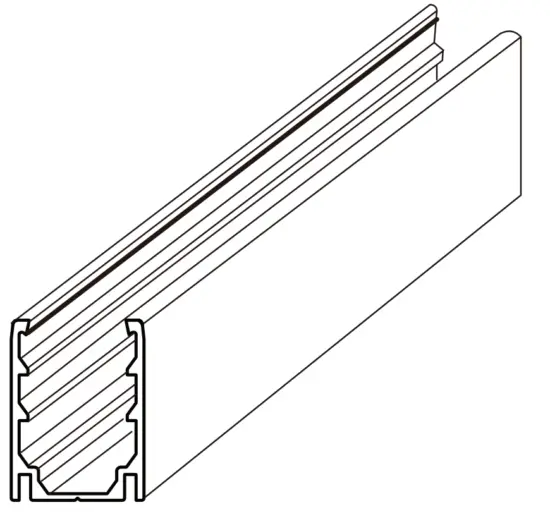

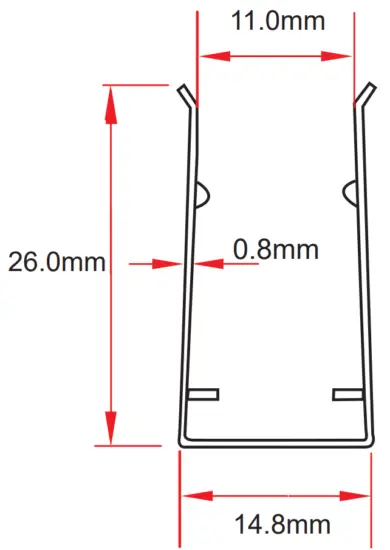

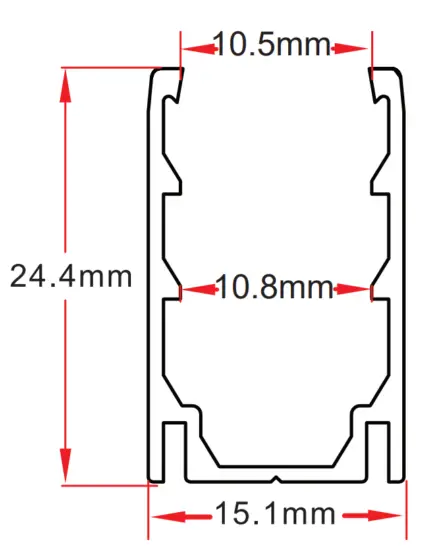

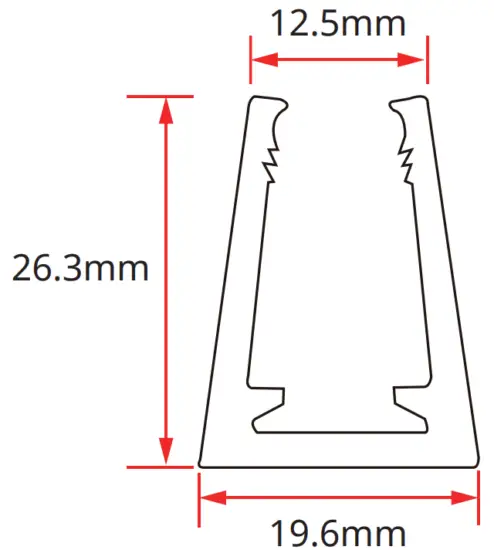

Mounting Channel

Model	Description	Dimension	Drawing

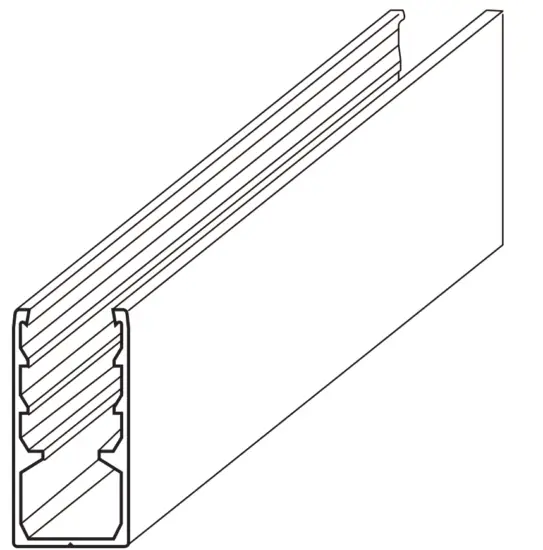

ALC15S01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Standard

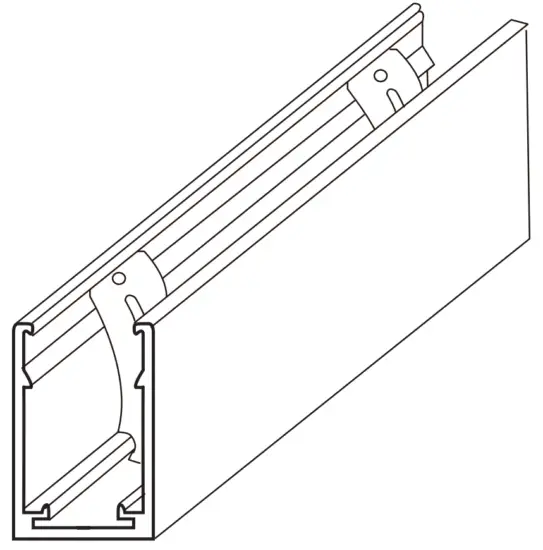

ALC15S01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Anti-drop for upside down installation

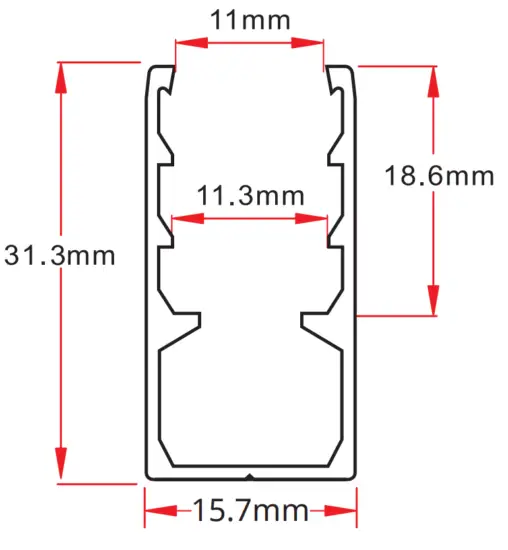

ALC15H01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Cable hiding

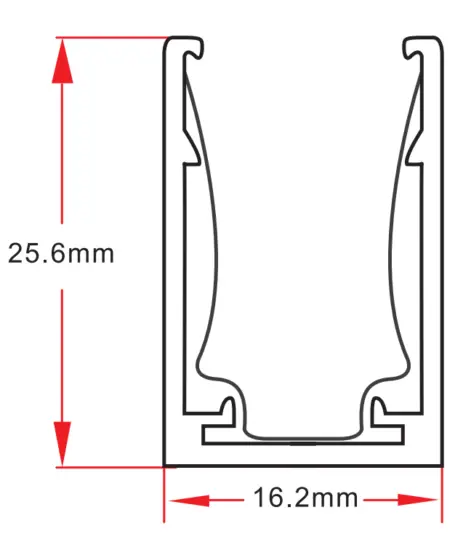

ALC15V01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Vertical installation

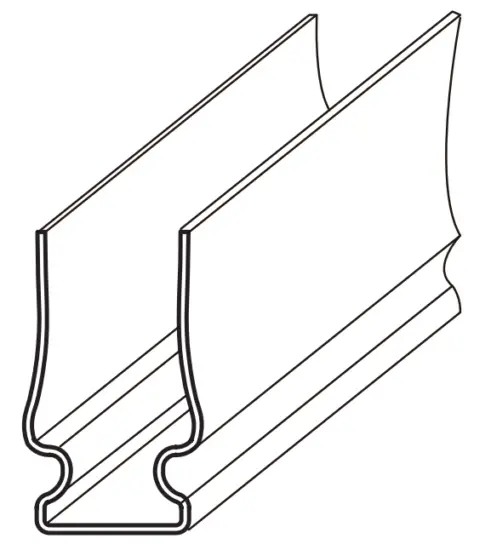

PC15/21S01-T	Use for : F15 & F21 Length option:1m,2m,35mm Material:Plastic Color: Transparent Type: Standard

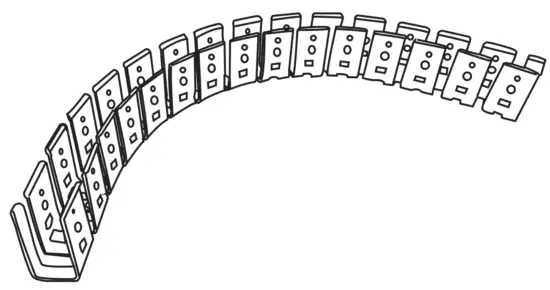

SSC15FLX	Use for : F15 & F21 Length option:10cm,30cm,50cm,100cm Material: Stainless steel Optional color: Polished Type: Flexible
SSC15S01	Use for : F15 & F21 Length option: 5cm Material: Stainless steel Optional color: Natural color Type: 316 stainless steel

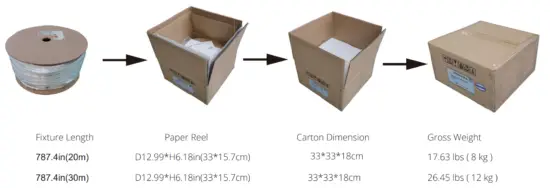

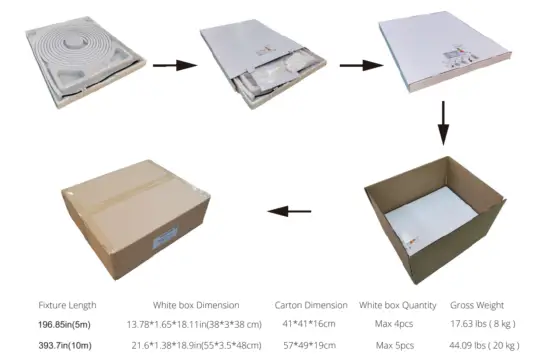

Packing

Standard: Carton ( Paper reel inside)

Custom: Carton ( White box+plastic plate inside)

Testing

Please note it is under normal range if there is 20-30% yellowing of PVC housing material when the product is used under direct sunlight or long-term high temperature & wet enviroment in 3 years.
About the tolerance range of optical parameters (luminance, CCT, Watt, RA) for all product, the volume is plus and minus 10% fluctuation refering to IEC Standard.
It’s normal for the tolerance range in total length, it occurs from the different production technology, environmental temperature and installation. the volume would be 0.1-5M±7mm, 5.1-10M±15mm, 10.1-20M±30mm.

Loading Chart

Power supply

Rated power	35W	60W	75W	80W	100W	120W	150W	185W	240W	320W
12W	2m	4m	5m	6m	7.5m	8m	10m	12.3m	16m	20m
13W	2m	3.5m	4.5m	4.8m	6m	7m	9m	10m	13.5m	19m

Note: These are the max recommended run lengths based on power supply
For example: It is recommended to use one 80W power supply for a single-feed run of 6m at 12W/m.

Recommendation of extension wire

Maximum extension wire length according to Light power

Watts of light	22AWG	20AWG	18AWG	17AWG	16AWG	14AWG	12AWG	10AWG
	0.34mm²	0.53mm ²	0.82mm²	1.04mm²	1.38mm²	2.07mm²	3.29mm²	5.62mm²
10W	36m	60m	100m	120m	140m	240m	400m	600m
20W	18m	30m	50m	60m	70m	120m	200m	300m
30W	12m	20m	30m	38m	45m	80m	130m	200m
40W	8m	15m	22m	28m	35m	60m	95m	140m
50W	6m	12m	18m	22m	28m	48m	75m	105m
60W	5m	10m	15m	18m	22m	36m	60m	88m
70W	/	8m	12m	14m	18m	30m	50m	72m
80W	/	6m	10m	11m	14m	24m	40m	58m
90W	/	4m	7m	8m	10m	18m	30m	45m
100W	/	/	5m	6m	7m	12m	22m	32m
110W	/	/	3m	4m	5m	8m	15m	22m
120W	/	/	2m	2.5m	3m	0m	8m	12m

Note:

The values doesn’t include the 0.6m cable connected to the front connector.
To ensure the reliability of wire connection and avoid problem of voltage drop, the extension wire length should be smaller than the above recommended values.
