Lighting Olympia F16 Pixel chasing series led neon flex

Contents hide

5 Technical Specification

6 Construction

7 Physical Specification

8 Mold injection connector

14 Recommendation of extension wire

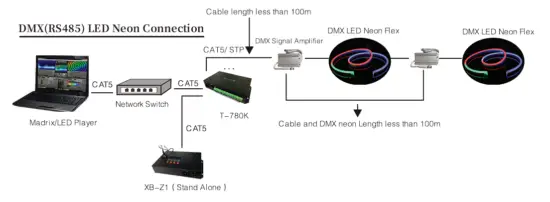

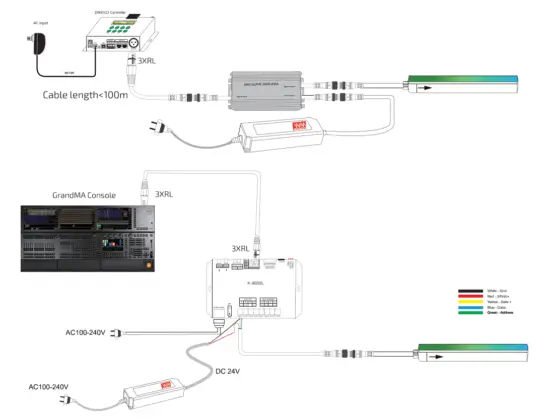

15 Connection Diagram

16 Documents / Resources

16.1 References

17 Related Posts

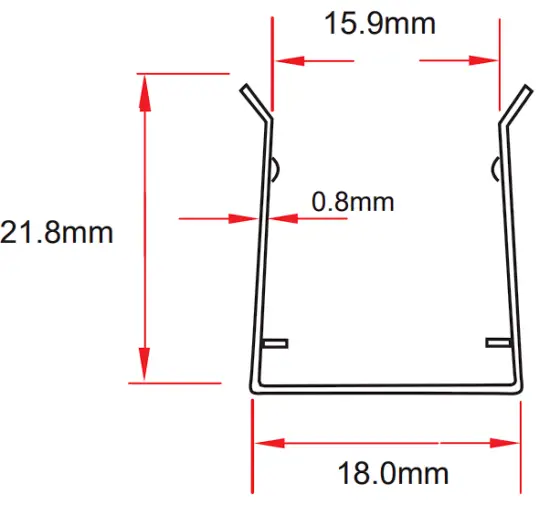

Dimension

Features

Uniform and even light output
Flat surface with 120 degree beam angle
RS485 IC built in, 10 pixels per meter
Connect with DMX Controller
Full encapsulated with IP68 Level
High Reliability
3 or 5 Years warranty

Applications

Building facade, outline
Applications
Cove lighting
Sign and advertising lighting
Linear lighting
Additional lighting
Decorative lighting

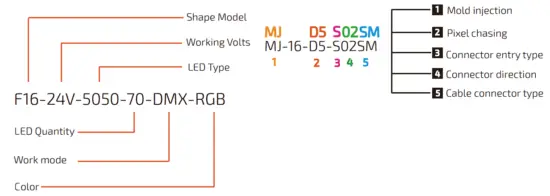

Model Encoding

S—— Side entry
D——Direct entry
B——Bottom entry

01—— right
02——left
03——double
SM—— male connetor cable
SF——female connector cable
SMF——male & female connector cable

Technical Specification

Model	F16-24V-5050-70-DMX-RGB	F16-24V-5050-70-DMX-RGBW
Operating voltage	24V	24V
Power consumption	15W/M	18W/M
Working Mode	DMX(RS485)	DMX(RS485)
LED type	SMD5050	SMD5050
LED Quantity	70 pcs/m	70 pcs/m
Available Color	RGB/3000K/DW	RGBW(2200K/3000K/4000K)
Min. cutting Unit	7 LEDs	7 LEDs
Min. cutting length	10cm	10cm
Pixels Qty/m	10 Pixels	10 Pixels
Max. length single feed	8m	8m
Max. length double feed	16m	16m
Bending direction	Vertically
Lumen maintenance	70 000 Hours L70 25°C , 50 000 Hours L70 50°C
Housing material	Eco PVC or Silicone
Installation temperature	0°C to +55°C
Ambient temperature	-25°C to +55°C
Ingress protection	IP68 wet location submersible* to 2m
Warranty	3 years as standard, 5 years warranty maximum

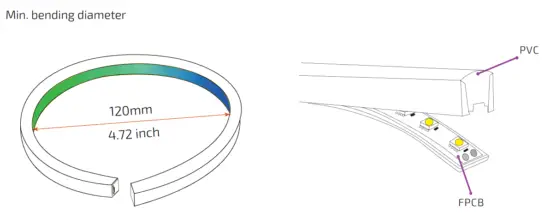

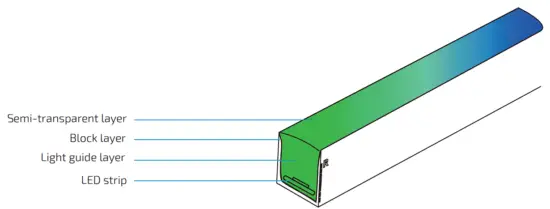

Construction

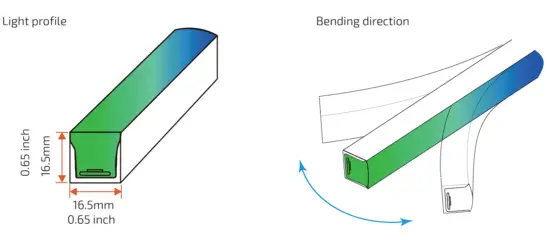

Physical Specification

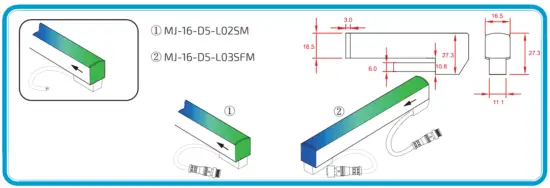

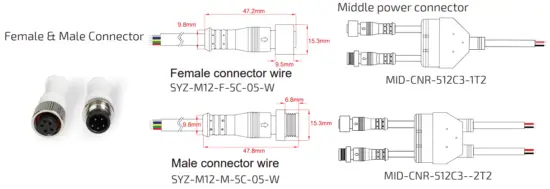

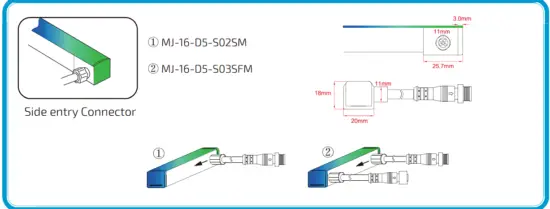

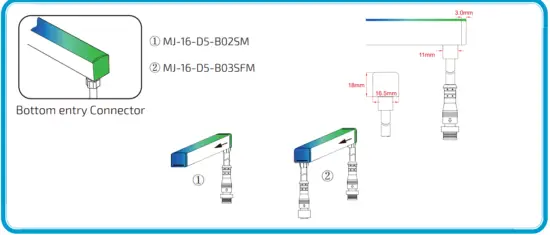

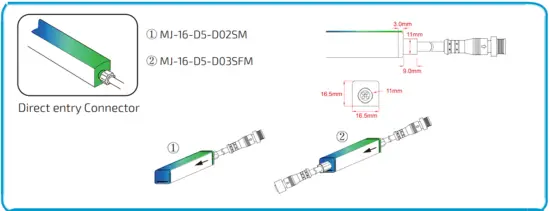

Mold injection connector

(IP68 Factory Assembly only)

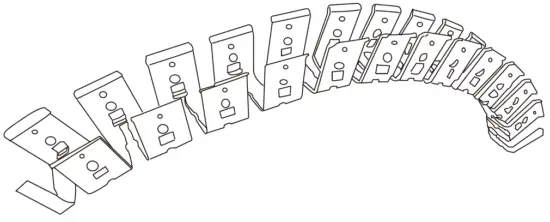

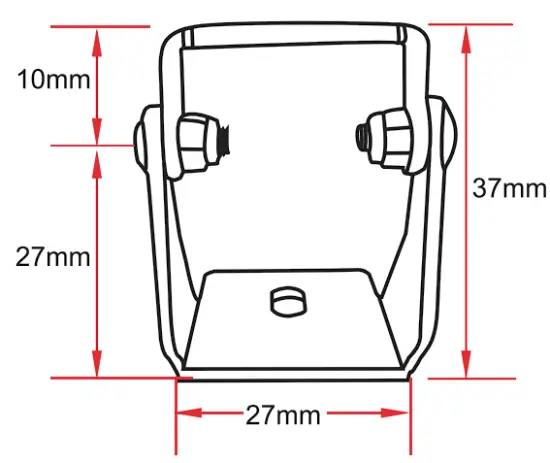

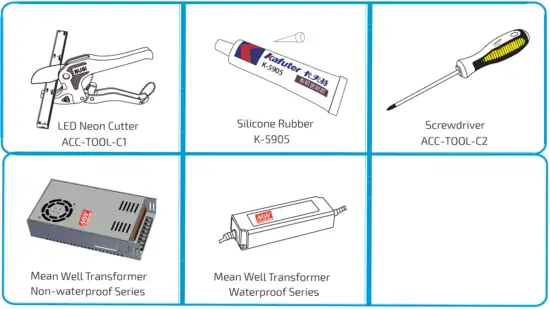

Other Accessories

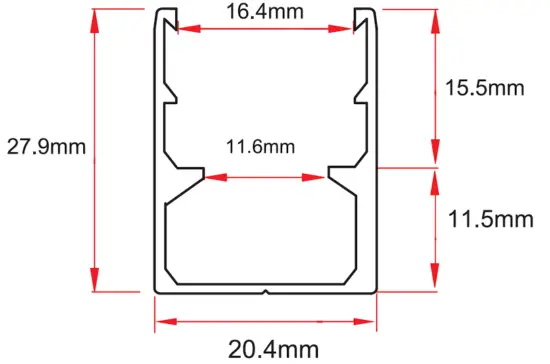

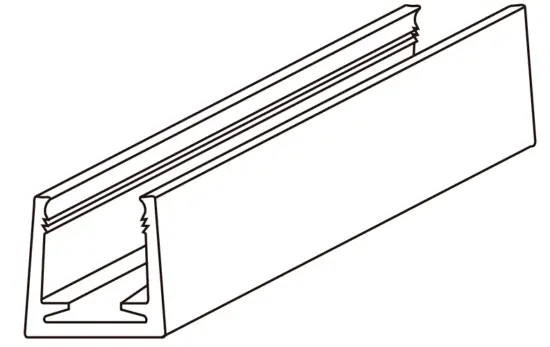

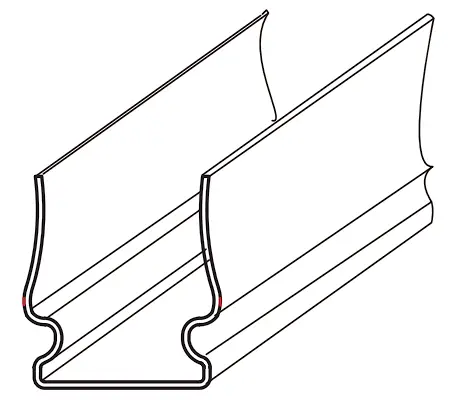

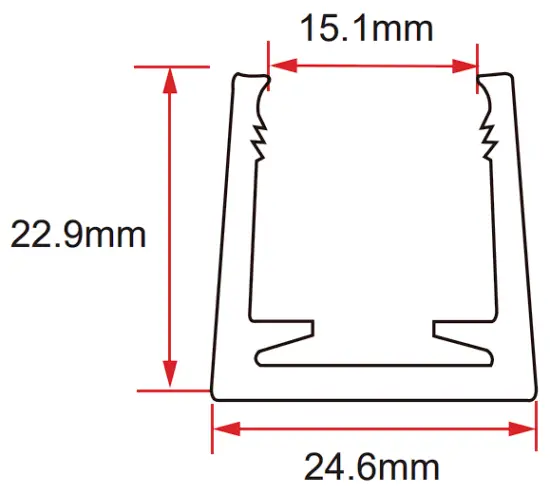

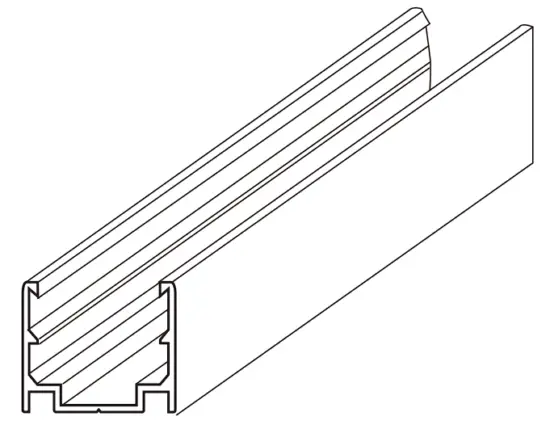

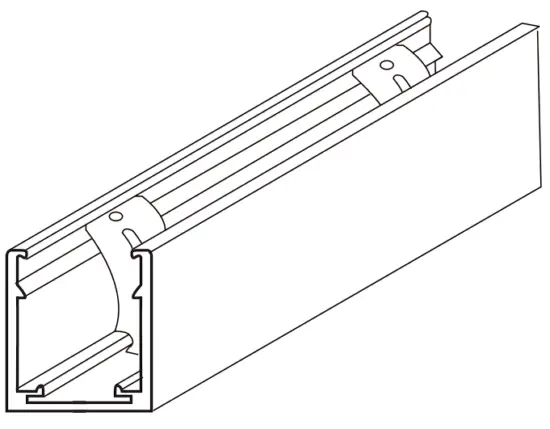

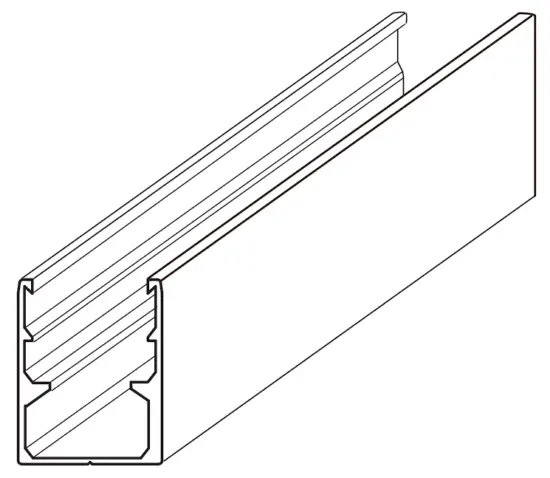

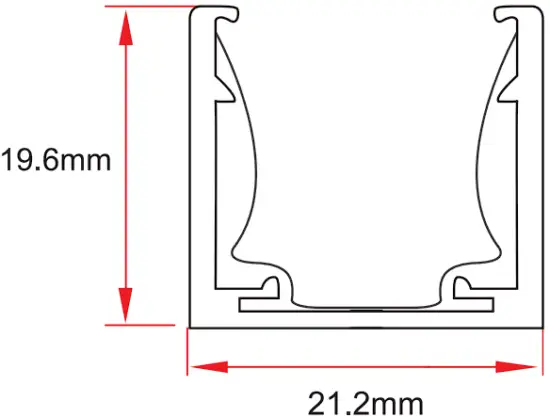

Mounting Channel

Model	Description	Dimension	Drawing
ALC16S02
ALC16S03
ALC16H01
PC16/17S02-T
SSC16FLX
SSC16S01
ACC-HX-S2830C2

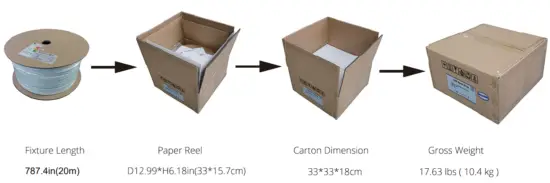

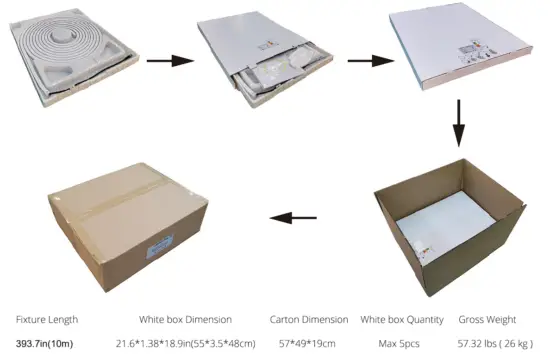

Packing

Standard: Carton ( Paper reel inside)

Custom: Carton ( White box+plastic plate inside)

Testing

Please note it is under normal range if there is 20-30% yellowing of PVC housing material when the product is used under direct sunlight or long-term high temperature & wet enviroment in 3 years.
About the tolerance range of optical parameters (luminance, CCT, Watt, RA) for all product, the volume is plus and minus 10% fluctuation refering to IEC Standard.
It’s normal for the tolerance range in total length, it occurs from the different production technology, environmental temperature and installation. the volume would be 0.1-5M±7mm, 5.1 10M±15mm, 10.1-20M±30mm.

Loading Chart

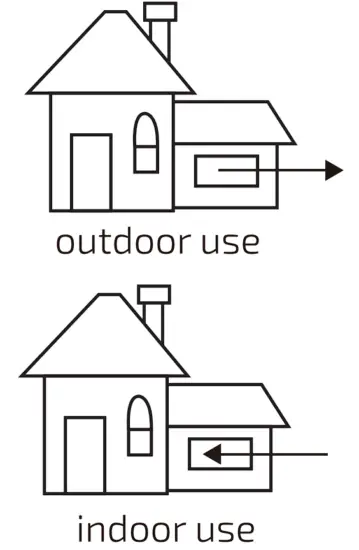

Power supply

Rated power	35W	60W	75W	80W	100W	120W	150W	185W	240W	320W
15W	1.5m	3m	4m	4.3m	5m	6m	6.5m	9.5m	12.5m	17m
18W	1.5m	2.5m	3m	3.5m	4m	5m	6m	8m	10.5m	14m

Note: These are the max recommended run lengths based on power supply, the signal transfers from the left end.
For example: It is recommended to use one 80W power supply for a single feed run of 4.3m at 15W/m.

Recommendation of extension wire

Maximum extension wire length according to Light power

Watts of light	22AWG	20AWG	18AWG	17AWG	16AWG	14AWG	12AWG	10AWG
	0.34mm²	0.53mm ²	0.82mm²	1.04mm²	1.38mm²	2.07mm²	3.29mm²	5.62mm²
10W	36m	60m	100m	120m	140m	240m	400m	600m
20W	18m	30m	50m	60m	70m	120m	200m	300m
30W	12m	20m	30m	38m	45m	80m	130m	200m
40W	8m	15m	22m	28m	35m	60m	95m	140m
50W	6m	12m	18m	22m	28m	48m	75m	105m
60W	5m	10m	15m	18m	22m	36m	60m	88m
70W	/	8m	12m	14m	18m	30m	50m	72m
80W	/	6m	10m	11m	14m	24m	40m	58m
90W	/	4m	7m	8m	10m	18m	30m	45m
100W	/	/	5m	6m	7m	12m	22m	32m
110W	/	/	3m	4m	5m	8m	15m	22m
120W	/	/	2m	2.5m	3m	0m	8m	12m

Note:

The values doesn’t include the 0.6m cable connected to the front connector.
To ensure the reliability of wire connection and avoid problem of voltage drop, the extension wire length should be smaller than the above recommended values.
