Lighting Olympia F21 Pixel Chasing Series Led Neon Flex Installation Guide

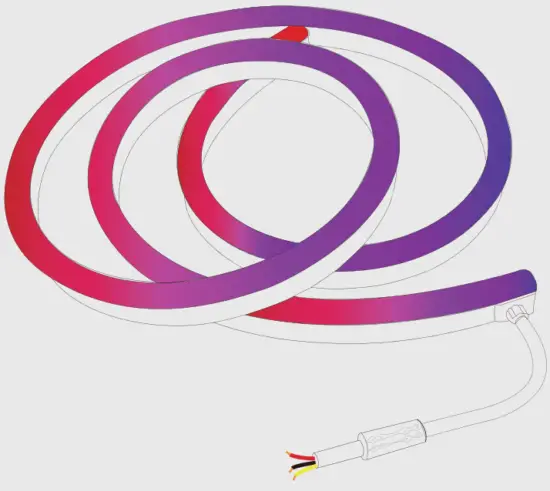

Lighting Olympia F21 Pixel chasing series led neon flex Installation Guide

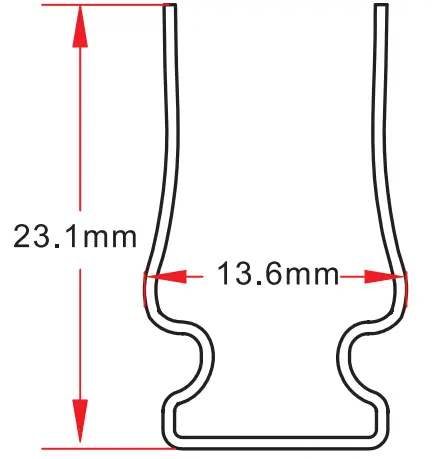

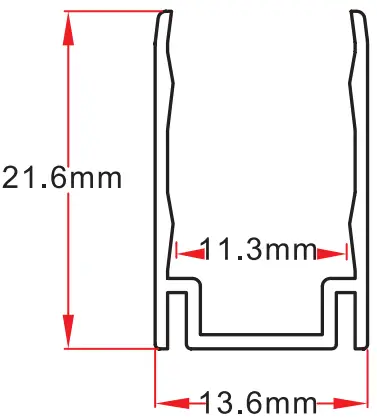

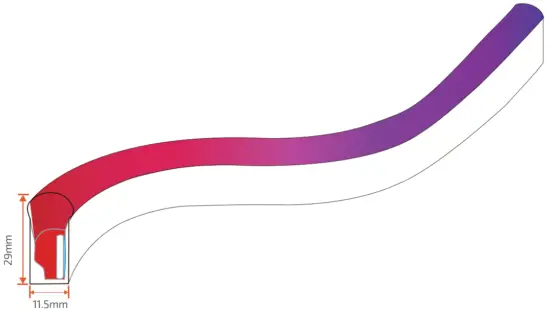

Dimension

• Gross weight: 0.52kg/m

• Controlled: SPI controller

• Installation Temp.: 0°C to +55°C

• Ambient Temp.: -25°C to +55°C

• Min. Bending : 120mm

• Beam Angle : 270 degree


Eco-friendly PVC Housing material

Features

• Uniform and even light output
• Dome surface with 270 degree beam angle
• UCS8903, 8904 IC built in
• Connect with SPI/TTL Signal Controller
• Full encapsulated with IP68 Level
• High Reliability
• 3 or 5 Years warranty

Applications

• Building facade, outline
• Applications
• Cove lighting
• Sign and advertising lighting

• Linear lighting
• Additional lighting
• Decorative lighting

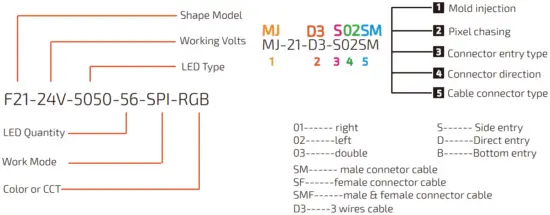

Model Encoding

Technical Specification

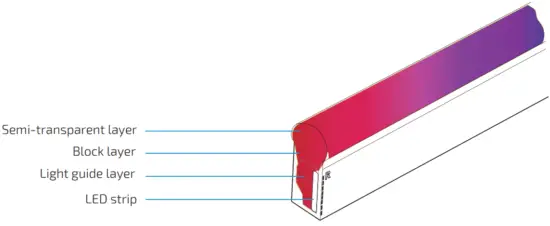

Construction

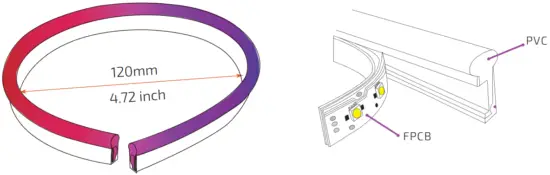

Physical Specification

Min. bending diameter

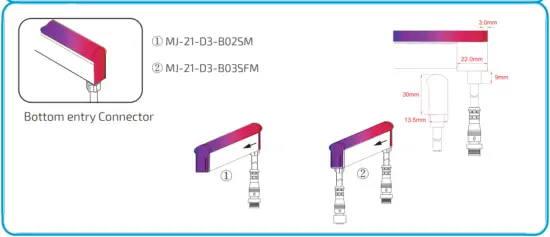

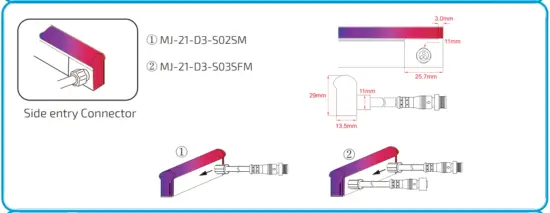

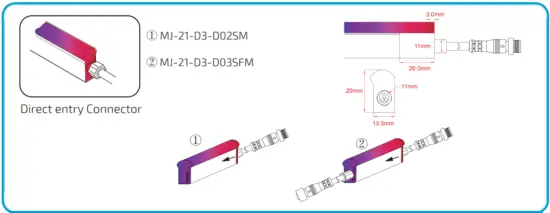

Mold injection connector

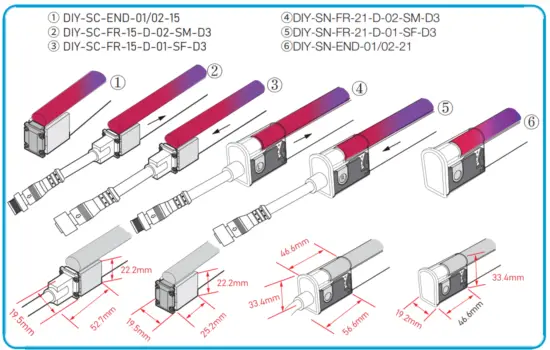

DIY snap & screws kit (IP67 Only)

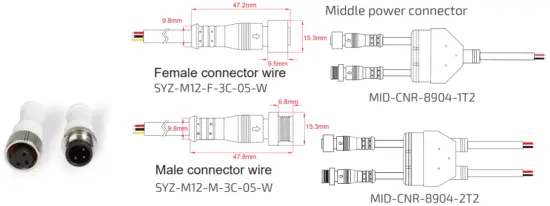

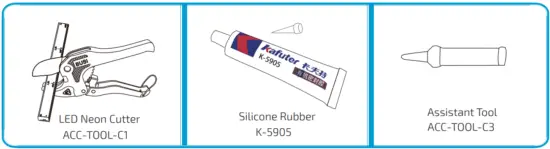

Other Accessories

Female & Male Connector

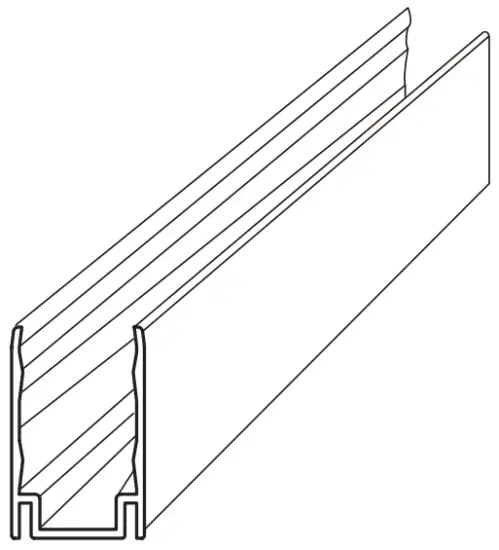

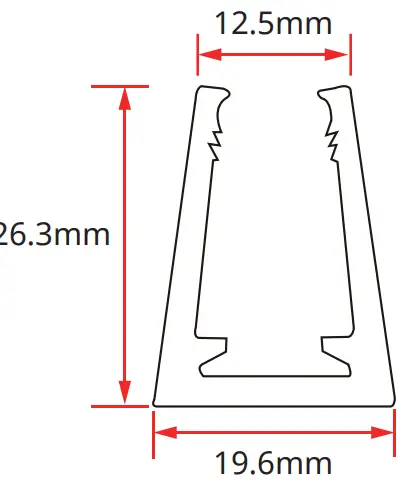

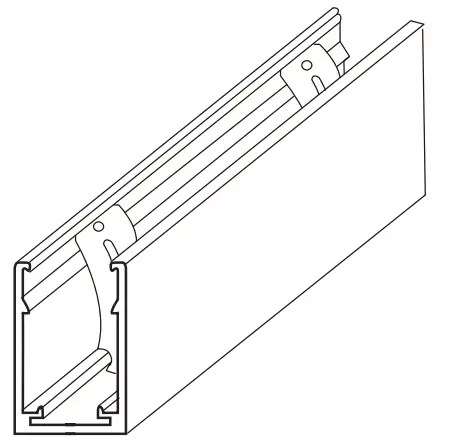

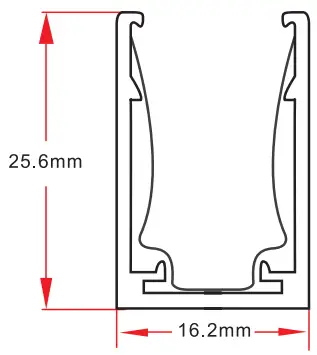

Mounting Channel

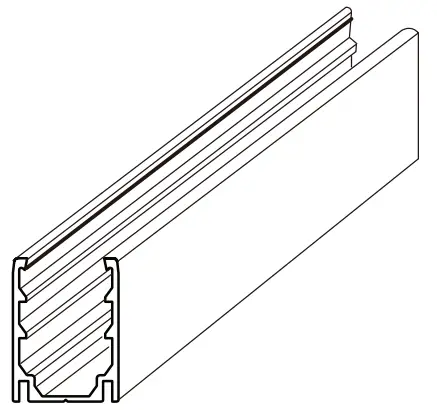

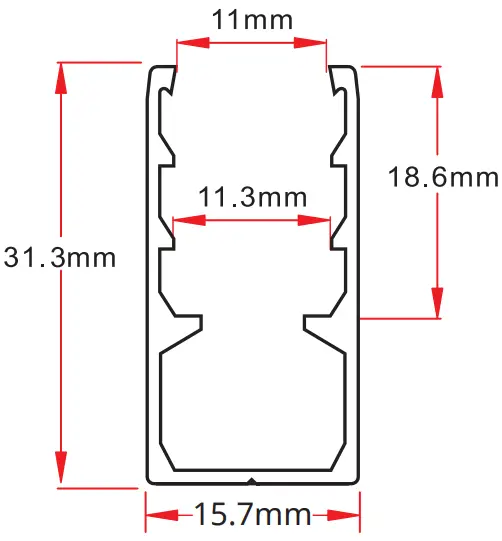

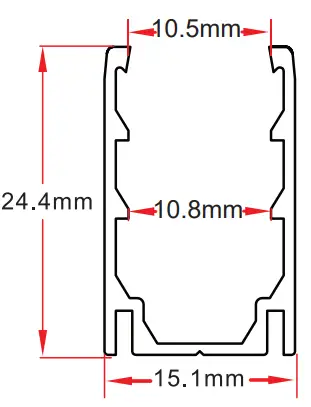

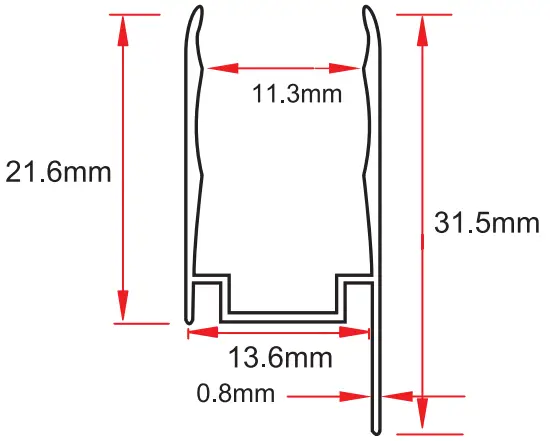

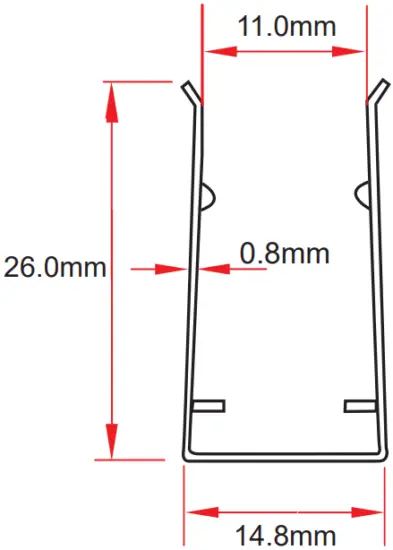

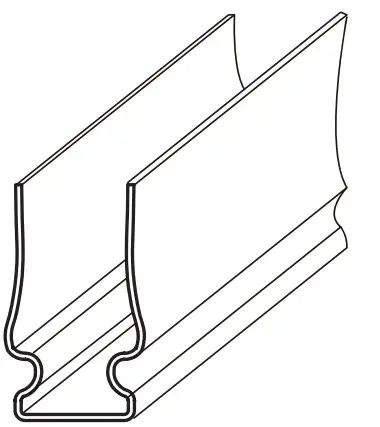

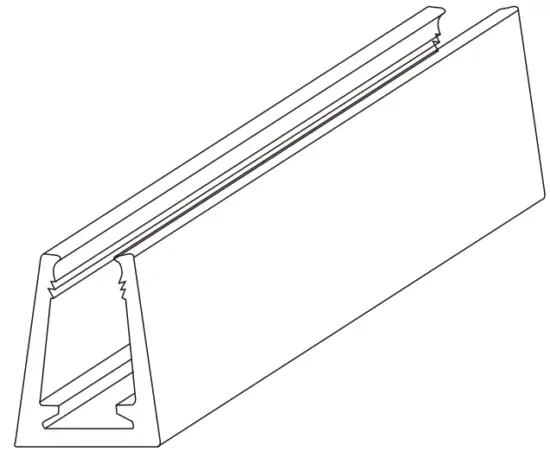

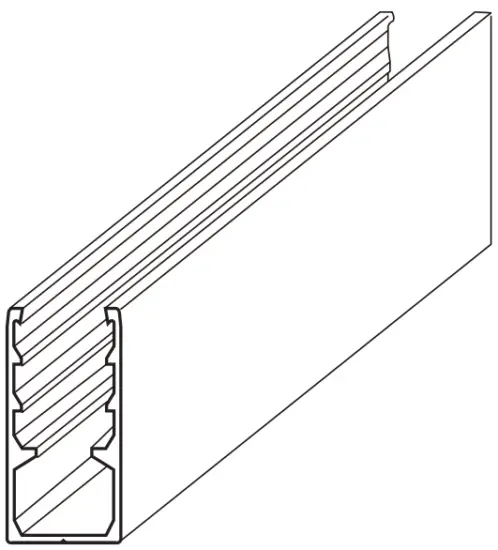

Model	Description	Dimension	Drawing
ALC15S01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Standard
ALC15S02	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Anti-drop for upside down installation
ALC15H02	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Cable hiding
ALC15V01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Vertical installation
ALC21S01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Aluminum alloy Optional color:AS/AB/PW Type: Standard

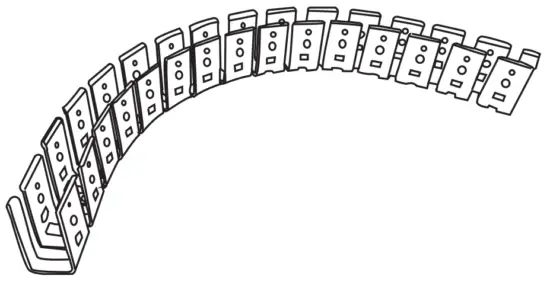

SSC15FLX	Use for : F15 & F21 Length option:10cm,30cm,50cm,100cm Material: Stainless steel Optional color: Polished Type: Flexible
SSC15S01	Use for : F15 & F21 Length option: 5cm Material: Stainless steel Optional color: Natural color Type: 316 stainless steel
PC15S01	Use for : F15 & F21 Length option:1m,2m,35mm Material:Plastic Color: Transparent Type: Standard

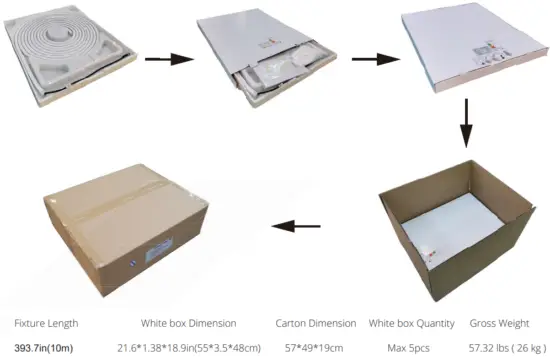

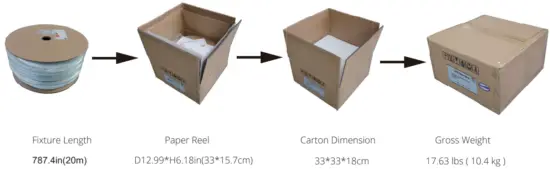

Packing

Standard: Carton ( Paper reel inside)

Custom: Carton ( White box+plastic plate inside)

Testing

1. Please note it is under normal range if there is 20-30% yellowing of PVC housing material when the product is used under direct sunlight or long-term high temperature & wet enviroment in 3 years.
2. About the tolerance range of optical parameters (luminance, CCT, Watt, RA) for all product, the volume is plus and minus 10% fluctuation refering to IEC Standard.
3. It’s normal for the tolerance range in total length, it occurs from the different production technology, environmental temperature and installation. the volume would be 0.1-5M±7mm, 5.1-10M±15mm, 10.1-20M±30mm.

Loading Chart

Power supply

Lead Type

Note: These are the max recommended run lengths based on power supply,the signals transfer from the left end. For example: It is recommended to use one 80W power supply for a single-feed run of 6m at 12W/m.

Recommendation of extension wire

Maximum extension wire length according to Light power

Note:

1. The values doesn’t include the 0.6m cable connected to the front connector.
2. To ensure the reliability of wire connection and avoid problem of  voltage drop, the extension wire length should be smaller than the above recommended values.

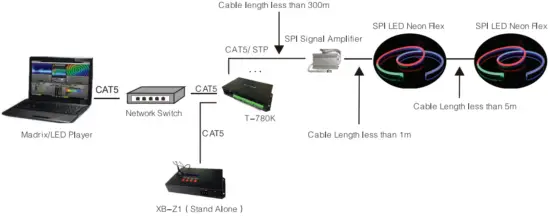

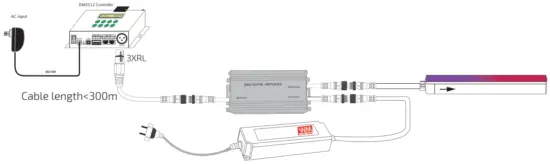

Connection Diagram

SPI LED NEON Connection
