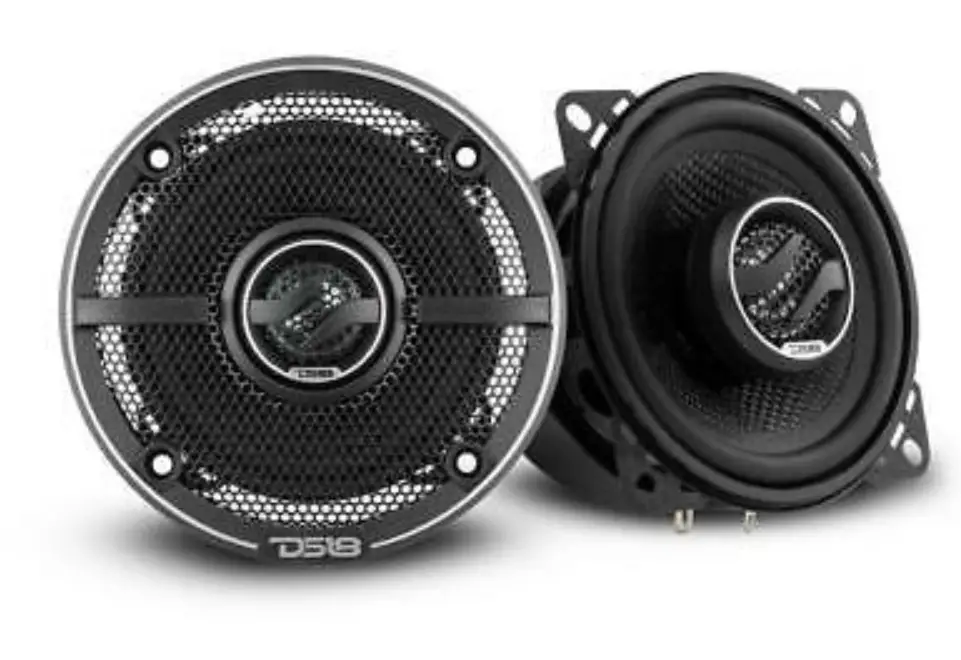

DS18 ZXI-44 ZXI Coaxial Speakers
SPECIFICATIONS
| SPECIFICATIONS | ZXI-44 | ZXI-354 | ZXI-464 | |
| Nominal Diameter | 4” | 3.5” | 4×6” | |
| Nominal Impedance | 4 ohm | 4 ohm | 4 ohm | |
| RMS Power Handling | 50 Watts | 40W | 60 Watts | |
| MAX Power Handling | 150 Watts | 120W | 180 Watts | |
| Sensitivity (1w/1m) | 88dB | 86dB | 87dB | |
| Frequency Response | 80Hz-20Khz | 120Hz-20KHz | 80Hz-20KHz | |
| Recommended HI Pass Crossover | 100Hz | 140Hz | 100Hz | |
| Speaker Type | 2-Way | Full Range | 2-Way | |
| MOTOR | ||||
| Voice Coil Diameter | 1” / 25.5mm | 1” / 25.5mm | 1” / 25.5mm | |
| Voice Coil Former Material | KSV | KSV | KSV | |
| Winding Material | EISV | EISV | EISV | |
| Cone Material | Glass fiber | Glass fiber | Glass fiber | |
| Surround Material | Rubber | Rubber | Rubber | |
| Basket Material | Steel | Steel | Steel | |
| Magnet Material | Barium Ferrite | Barium Ferrite | Barium Ferrite | |
| Magnet Weight | 10.9 oz / 310g | 10.9oz / 310g | 10.9 oz / 310g | |
| TWEETER | ||||
| Nominal Diameter | 1″ (25.4mm) | – | 1″ (25.4mm) | |
| Voice Coil Diameter | 0.8″(ø20.4mm) | – | 0.8″(ø20.4mm) | |
| Voice Coil Former Material | KSV | – | KSV | |
| Winding Material | EISVM | – | EISVM | |
| Diaphragm Material | PEI | – | PEI | |
| Magnet Material | Neodymium | – | Neodymium | |
| Magnet Weight | 0.3 oz / 8.5g | – | 0.3 oz / 8.5g | |
| THIELE & SMALL PARAMETERS | ||||
| Equivalent Volume | Vas | 1.59L | 0.55L | 1.989L |
| Excursion (one way) | Xmax | 2.3mm | 1.4mm | 2.3mm |
| Free Air Resonance | Fs | 95Hz | 140Hz | 77Hz |
| Mechanical Factor | Qms | 9.00 | 7.08 | 5.97 |
| Electrical Factor | Qes | 0.8 | 1.37 | 1.15 |
| Total Factor | Qts | 0.74 | 1.15 | 0.97 |
| Mechanical Mass | Mms | 8.47g | 3.2g | 9.79g |
| Mechanical Compliance | Cms | 364.9mm/N | 402mm/N | 232mm/N |
| BL Factor | BL | 4.583 | 2.938 | 4.44 |
| Voice Coil Inductance | Le | 216mH | 169mH | 216mH |
| Cone Area | Sd | 55.4cm2 | 32cm2 | 77.7cm2 |
| DC Resistance | Re | 3.5 ohm | 4.2 ohm | 3.5 ohm |
| Mechanical Mass w/o air | Mmd | 8.0g | 3.0g | 9g |
| MEASUREMENTS | ||||
| Overall Diameter | 3.94“ / 100mm | 3.50” / 89mm | 3.82×5.94” / 97x151mm | |
| Overall Depth | 2.80” / 71mm | 1.65” / 42mm | 2.80” / 71mm | |
| Front Mount Baffle Cutout | 3.66” / 93mm | 2.80” / 71mm | 3.46×5.51” / 87.8x140mm | |
| Mouting Depth | 2.20” / 56mm | 1.49” / 37.8mm | 2.05” / 52mm | |
| Motor Diameter | 3.31” / 84mm | 2.36” / 60mm | 3.31” / 84mm | |
| SPECIFICATIONS | ZXI-654 | ZXI-694 | ZXI-5254 | |
| Nominal Diameter | 6.5” | 6X9” | 5.25” | |
| Nominal Impedance | 4 ohm | 4 ohm | 4 ohm | |
| RMS Power Handling | 80 Watts | 120 Watts | 60 Watts | |
| MAX Power Handling | 240 Watts | 360 Watts | 180 Watts | |
| Sensitivity (1w/1m) | 89dB | 92dB | 89dB | |
| Frequency Response | 40Hz-20KHz | 31.5Hz-20KHz | 40Hz-20Khz | |
| Recommended HI Pass Crossover | 60Hz | 50Hz | 60Hz | |
| Speaker Type | 2-Way | 2-Way | 2-Way | |
| MOTOR | ||||
| Voice Coil Diameter | 1” / 25.5mm | 1.2” / 30.4mm | 1” / 25.5mm | |
| Voice Coil Former Material | KSV | KSV | KSV | |
| Winding Material | EISV | EISV | EISV | |
| Cone Material | Glass fiber | Glass fiber | Glass fiber | |
| Surround Material | Rubber | Rubber | Rubber | |
| Basket Material | Steel | Steel | Steel | |
| Magnet Material | Barium Ferrite | Barium Ferrite | Barium Ferrite | |
| Magnet Weight | 14.46 oz / 410g | 19.4 oz / 550g | 10.9 Oz / 310g | |
| TWEETER | ||||
| Nominal Diameter | 1″ (25.4mm) | 1″ (25.4mm) | 1″ (25.4mm) | |
| Voice Coil Diameter | 0.8″(ø20.4mm) | 0.8″(ø20.4mm) | 0.8″(ø20.4mm) | |
| Voice Coil Former Material | KSV | KSV | KSV | |
| Winding Material | EISVM | EISVM | EISVM | |
| Diaphragm Material | PEI | PEI | PEI | |
| Magnet Material | Neodymium | Neodymium | Neodymium | |
| Magnet Weight | 0.3 oz / 8.5g | 8.5g | 0.3 oz / 8.5g | |
| THIELE & SMALL PARAMETERS | ||||
| Equivalent Volume | Vas | 10.84L | 17.52L | 4.86L |
| Excursion (one way) | Xmax | 2.7mm | 3.3mm | 2.3mm |
| Free Air Resonance | Fs | 64Hz | 58Hz | 77Hz |
| Mechanical Factor | Qms | 9.44 | 5.77 | 8.39 |
| Electrical Factor | Qes | 0.79 | 1.18 | 0.87 |
| Total Factor | Qts | 0.73 | 0.98 | 0.79 |
| Mechanical Mass | Mms | 13.72g | 23.44g | 9.93g |
| Mechanical Compliance | Cms | 444mm/N | 286mm/N | 457mm/N |
| BL Factor | BL | 5.1 | 5.18 | 4.321 |
| Voice Coil Inductance | Le | 228mH | 178mH | 216mH |
| Cone Area | Sd | 131cm2 | 207.7cm2 | 86.5cm2 |
| DC Resistance | Re | 3.5 ohm | 3.5 ohm | 3.5 ohm |
| Mechanical Mass w/o air | Mmd | 12g | 20g | 9.0g |
| MEASUREMENTS | ||||
| Overall Diameter | 6.50” / 165mm | 6.37×9.25” /162x235mm | 5.08” / 129mm | |
| Overall Depth | 2.83” / 72mm | 3.66” / 93mm | 2.80” / 71mm | |
| Front Mount Baffle Cutout | 5.55” / 141mm | 5.94×8.70” / 151x221mm | 4.45” / 113mm | |
| Mouting Depth | 2.36” / 60mm | 3.22” / 82mm | 2.28” / 58mm | |
| Motor Diameter | 3.70” / 94mm | 4.09” / 104mm | 3.31” / 84mm | |
| GENERAL | ZXI-62C | |
| Nominal Diameter | 6.5” / 165mm | |
| Nominal Impedance | 4 ohm | |
| RMS Power Handing | 80W | |
| MAX Power Handing | 240W | |
| Sensitivity (1w/1m) | 88dB | |
| Frequency Response | 40Hz-20Khz | |
| Recommended HI Pass Crossover | 60Hz | |
| Speaker Type | 2-Way | |
| WOOFER | ||
| Voice Coil Diameter | 1” / 25.5mm | |
| Voice Coil Former Material | KSV | |
| Winding Material | EISV | |
| Cone Material | Glass fiber | |
| Surround Material | Rubber | |
| Basket Material | Steel | |
| Magnet Material | Barium Ferrite | |
| Magnet Weight | 14.4 oz / 410g | |
| Grill Included | Yes | |
| Pair | Yes | |
| TWEETER | ||
| Nominal Diameter | 1.25″ (31.7mm) | |
| Voice Coil Diameter | 1″(ø25.5mm) | |
| Voice Coil Former Material | ASV | |
| Winding Material | EISVM | |
| Diaphragm Material | SILK | |
| Magnet Material | Neodymium | |
| Magnet Weight | 0.46 oz / 13g | |
| Pair | Yes | |
| CROSSOVER SPECIFICATIONS & FEATURES | ||
| Passive Crossover Ways | 2 Ways | |
| Frequency Crossover point | 3.5Khz | |
| Cut-Off Slope | 12 dB/Oct | |
| Tweeter Attenuation | (+/- 3dB) | |
| Capacitor Type | NP | |
| Coil Type | KSV | |
| Terminal Type | Screw-On | |
| Housing Material | ABS / Acrylic | |
| Adjustments | Tw Attenuation | |
| Extra Features | Pt Tw protection | |
| Pair | Yes | |
| THIELE & SMALL PARAMETERS | ||
| Equivalent Volume | Vas | 10.36L |
| Excursion (one way) | Xmax | 2.7mm |
| Free Air Resonance | Fs | 64Hz |
| Mechanical Factor | Qms | 9.50 |
| Electrical Factor | Qes | 0.85 |
| Total Factor | Qts | 0.78 |

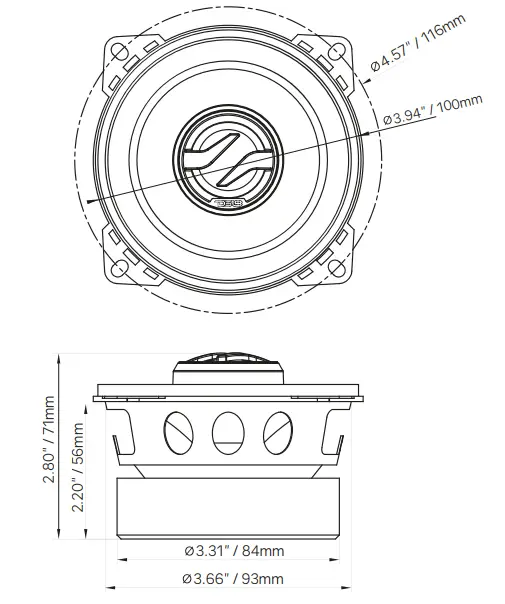

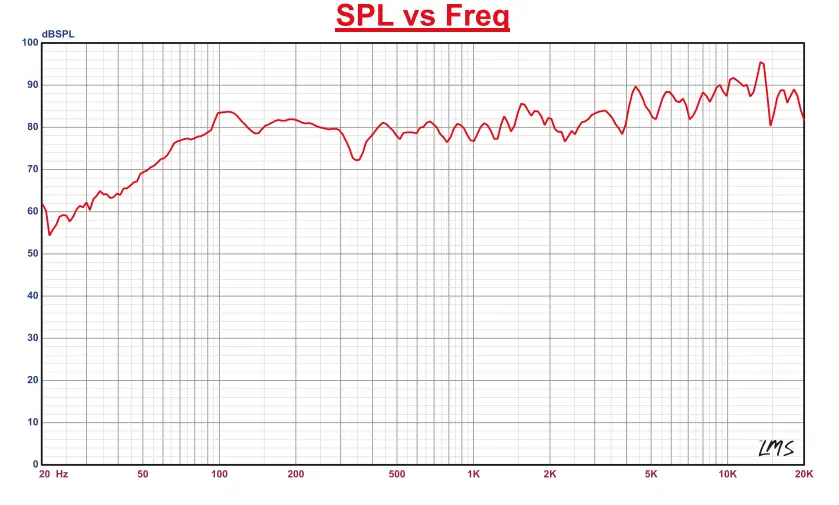

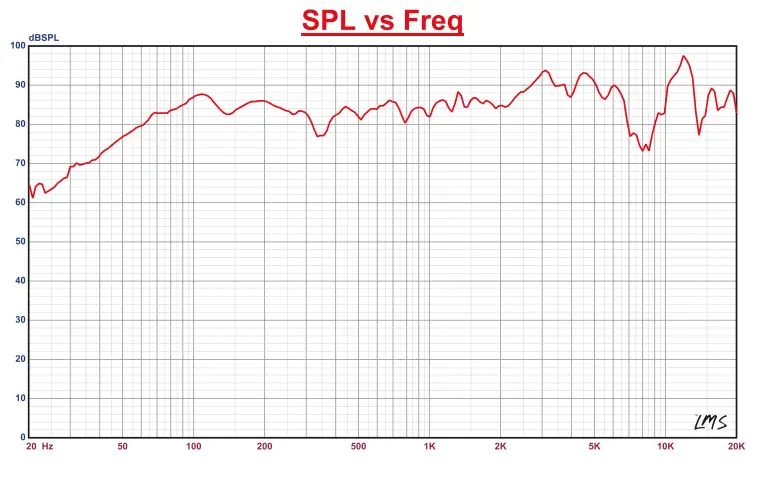

ZXI-44

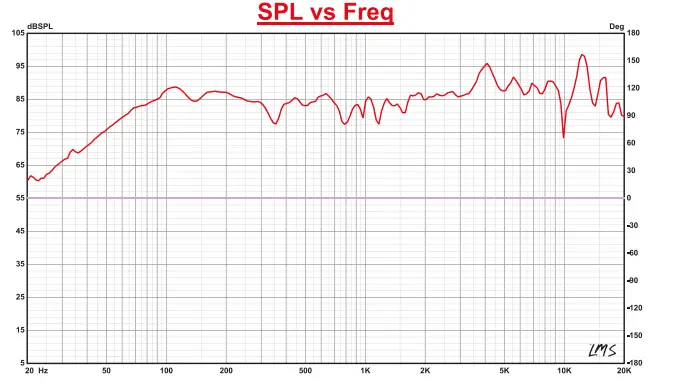

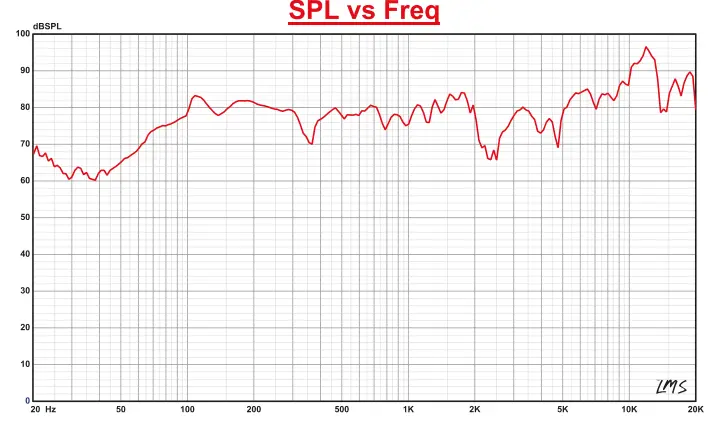

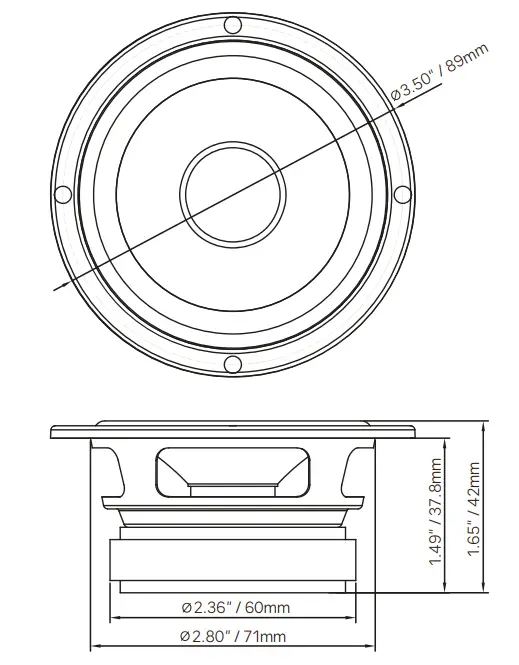

ZXI-354

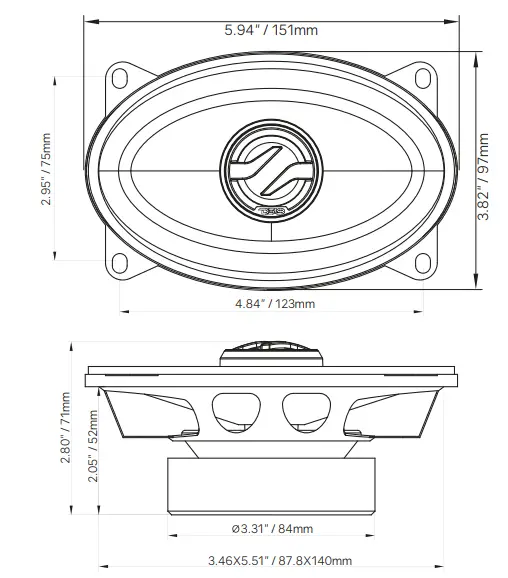

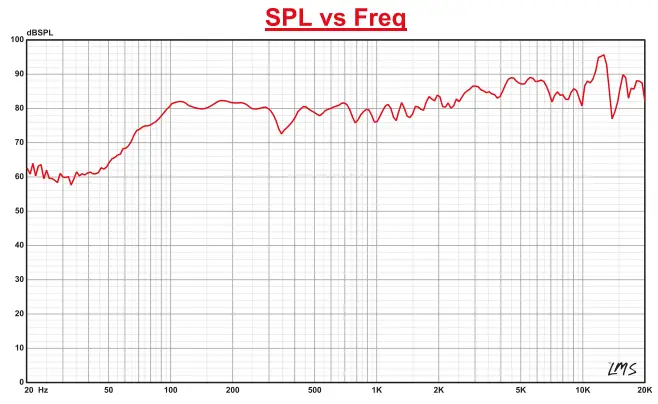

ZXI-464

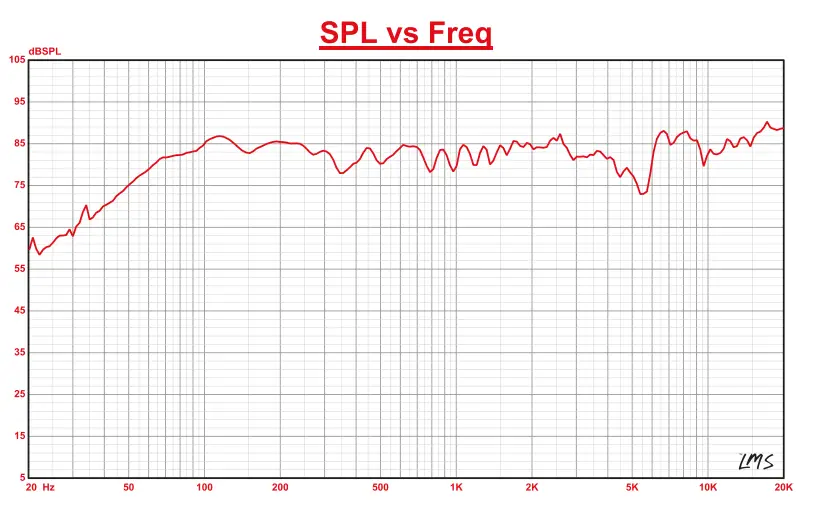

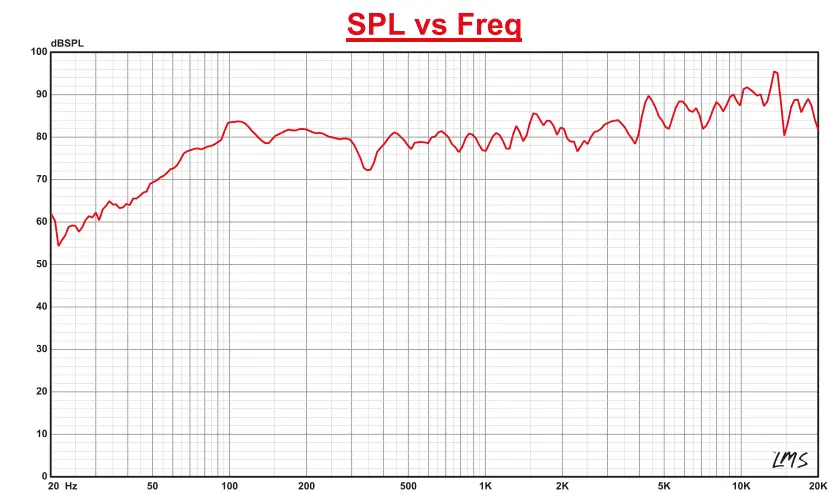

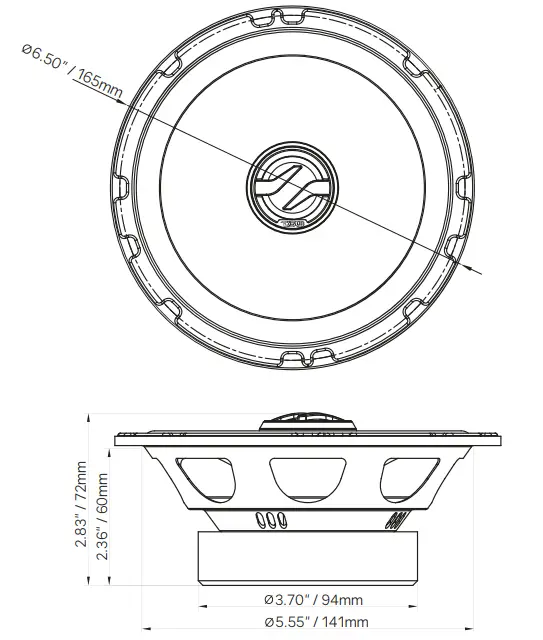

ZXI-654

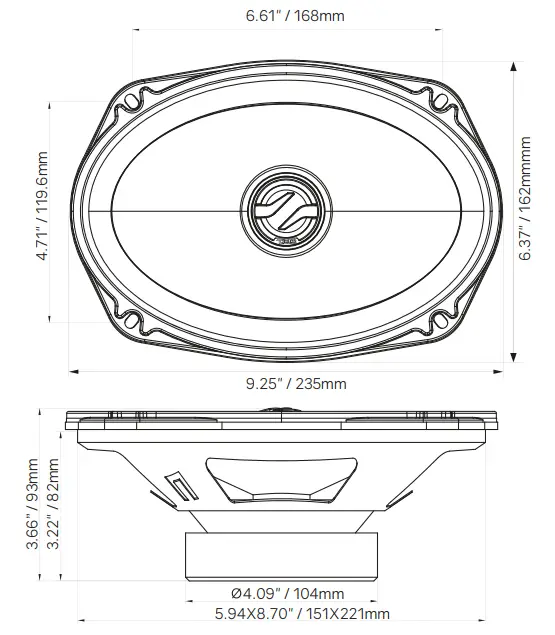

ZXI-694

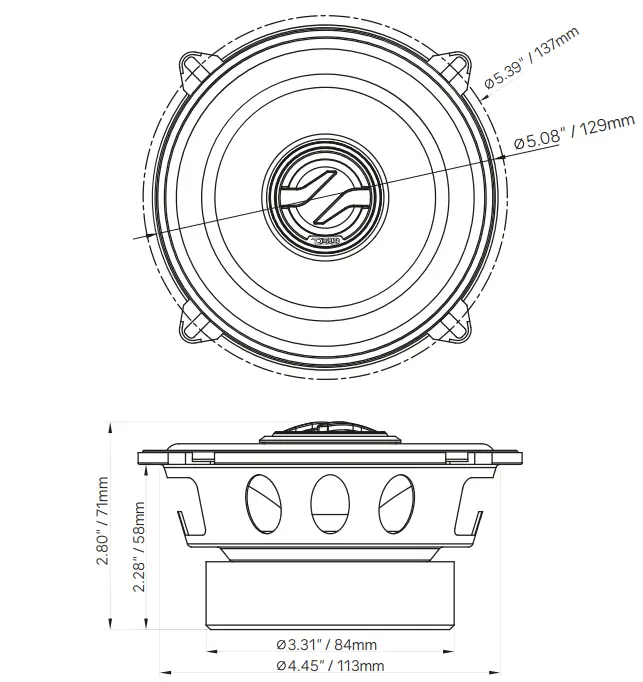

ZXI-5254
ZXI-62C

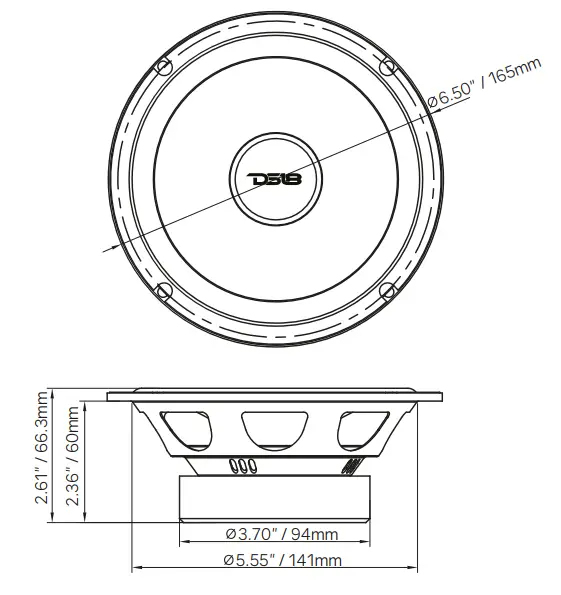

Woofer Measurements
- Overall Diameter ……………………………..6.50” / 165mm
- Overall Depth…………………………………..2.61” / 66.3mm
- Front Mount Baffle Cutout…………………5.55” / 141mm
- Mouting Depth…………………………………2.36” / 60mm
- Motor Diameter………………………………..3.70” / 94mm
ZXI-62C

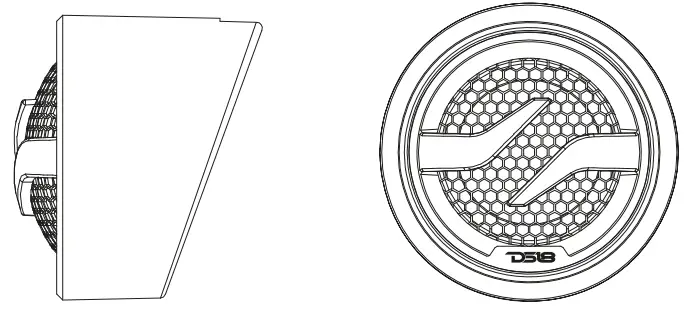

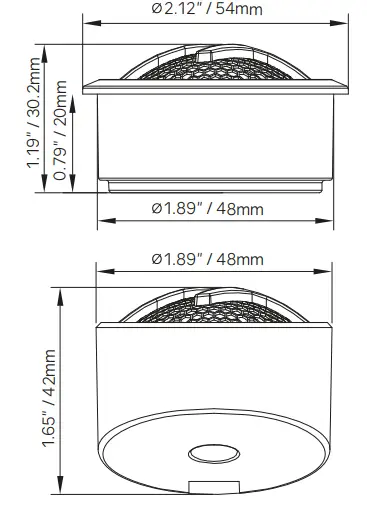

TWEETER
Tweeter Measurements
- Overall Diameter ……………………………..2.12″ / 54mm
- Overall Depth…………………………………..1.19″ / 30.2mm
- Front Mount Baffle Cutout…………………1.89″ / 48mm
- Mouting Depth…………………………………0.79″ / 20mm
ZXI-62C

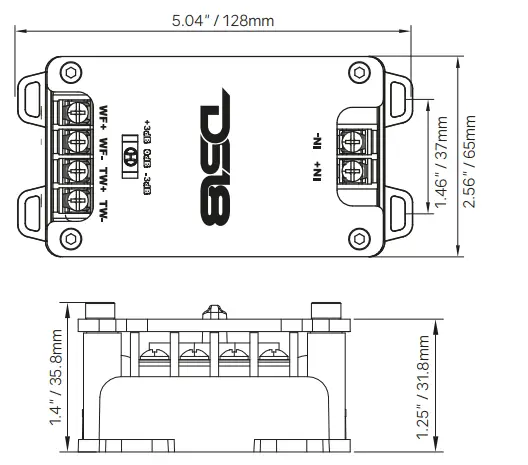

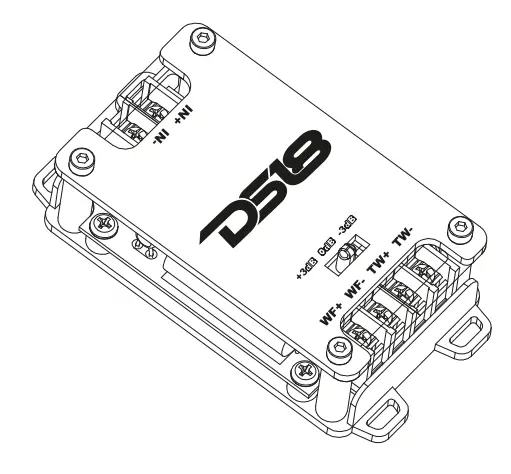

CROSSOVER
Crossover Measurements
- Overall Length ……………………………….2.56″ / 65mm
- Overall Depth…………………………………5.04″ / 128mm
- Overall Height………………………………..1.4″ / 35.8mm
ZXI-62C

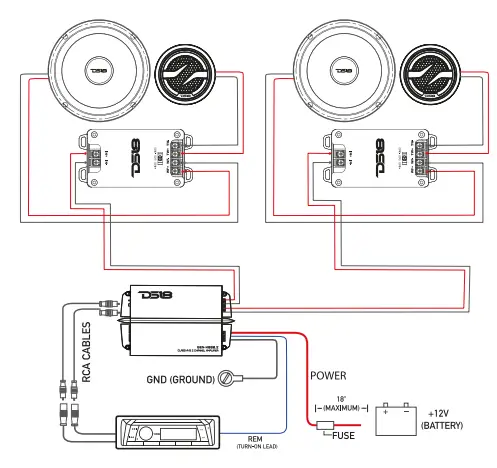

INSTALLATION
