Pioneer Ts-a692f 6" X 9" 4-way Coaxial Speaker System Instruction Manual

TS-A692F
4-WAY SPEAKER / HP 4 VOTES
Instruction Manual

Be sure to read this instruction manual before installing this speaker.

WARNING
Over time, your hearing comfort level” adapts to high volumes of sound, so that what sounds “normal” can actually be doing harm.
To protect against the ng loss, set your equipment’s volume at a low setting, slowly increase it until you can hear it comfortably and clearly, and leave it ere. Do not turn up the volume so high that you can’t hear what’s around you.

CAUTION

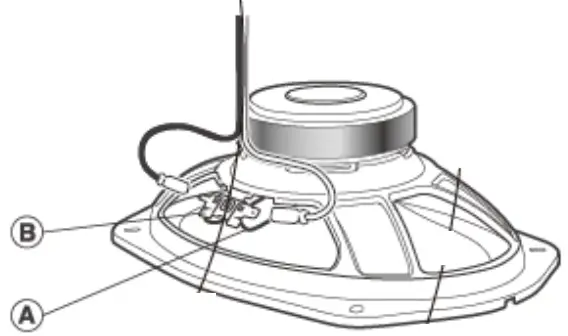

1. Do not touch the speaker flexible wire A.
2. Do not change the direction of the speaker terminal assembly B.
3. Make sure lead and speaker terminals do not contact metal.
4. When making connections refer also to the instruction manual of the car stereo used.

A-series sound design delivers better car-music-life
– Powerful and well-controlled bass
– High sensitivity and wide dynamic range
– Clarity of vocal

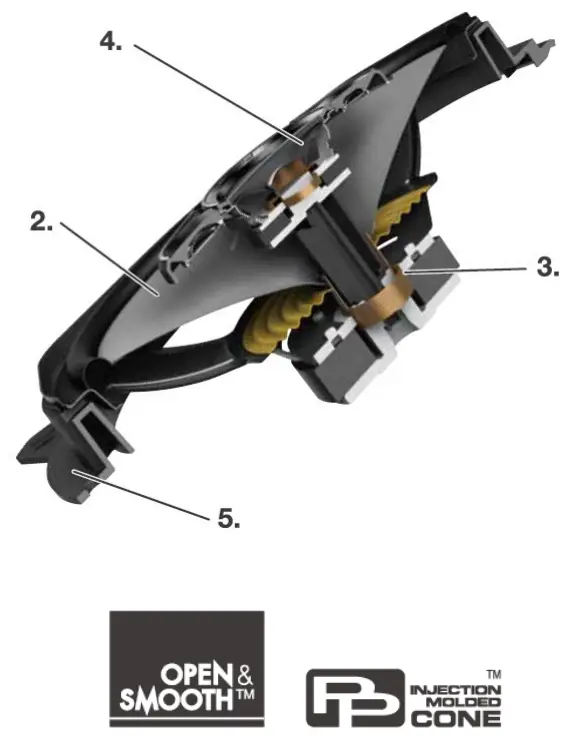

FEATURES

1. OPEN and SMOOTH delivers smooth frequency response and an expansive soundstage
2. Carbon and Mica reinforced IMPP cone provides fast response and solid bass
3. The optimized symmetrical motor design reproduces accurate sound
4. Cellulose fiber midrange cone provides natural vocals
5. Multi-fit adaptors expand installation flexibility and improve acoustic performance

PARTS INCLUDED

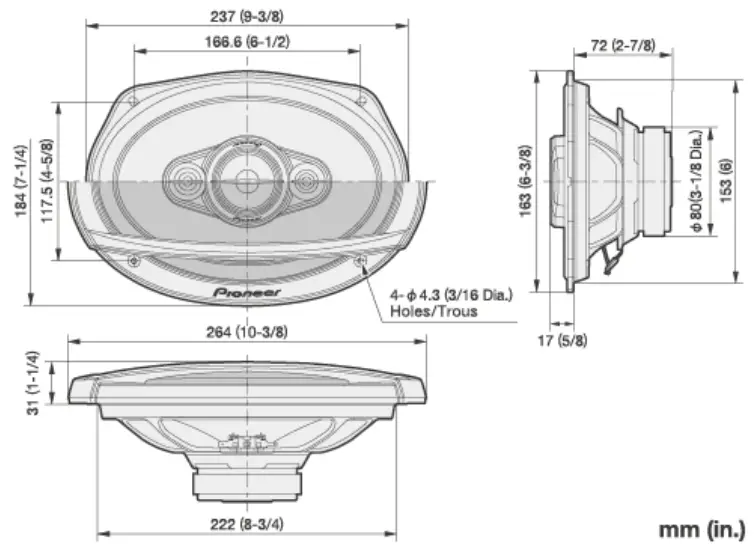

DIMENSIONS

Car Sound Simulator Application for a more in-car sound experience.

http://pioneer.jp/support/pcperipherals/app/iapp_car_sound_fit/en_download.php

SPECIFICATIONS

• Reproduction system——————————————— coaxial—four-way
• Speaker specifications
  Woofer ————————————————————–163 mm x 237 mm (6″ ×9″)
  Midrange———————————————————– Ø57 mm (2-1/4″ dia.)
  Tweeter————————————————————- Ø18 mm (3/4″ dia.)
  Super Tweeter —————————————————–Ø11 mm (3/8″ dia.)
• Continuous power handling (RMS)—————————–90 W
• Maximum music power ——————————————-450 W
• Sensitivity ———————————————————–89 dB (1 W/1 m) 95 dB (1 W/O 5 m)
• Frequency response ———————————————–35 Hz to 24 kHz (-20 dB)
• Nominal impedance———————————————– 4 Ω
• Cutout diameter —————————————————153 mm x 222 mm (6″x 8-3/4″)

EXAMPLE OF COVERAGE

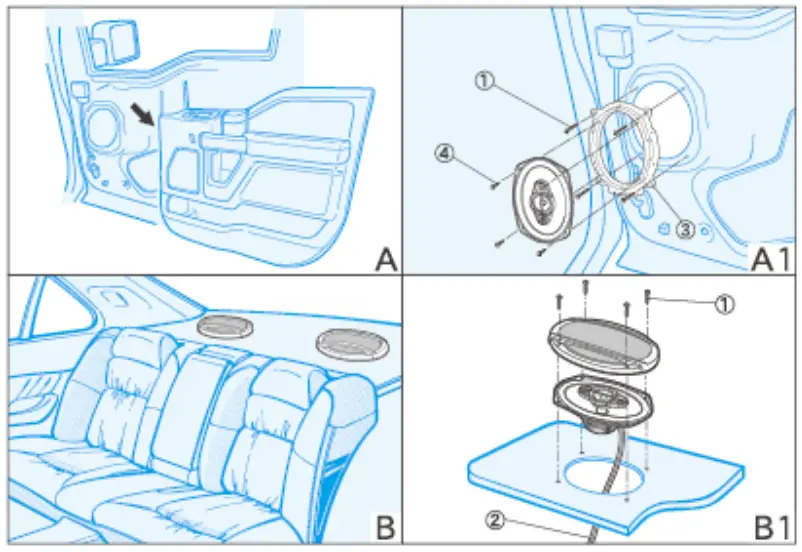

HOW TO INSTALL

Installation

Fitting Guide To find more information about various vehicles and adaptor compatibility

http://www.pioneer-carglobal.com/speakerfitting2
