TS-A879 2-Way Max Power Coaxial Speaker
Instruction Manual
TS-A879 2-Way Max Power Coaxial Speaker
Be sure to read this instructiorrmanual before installing this speaker.
WARNING Over time, your hearing “comfort level” adapts to higher volumes of sound, so that what sounds “normal” can actually be doing harm. To protect against hearing loss, set your equipment’s volume at a low setting, slowly increase it until you can hear it comfortably and clearly, and leave it there. Do not turn up the volume so high that you can’t hear what’s around you. CAUTION

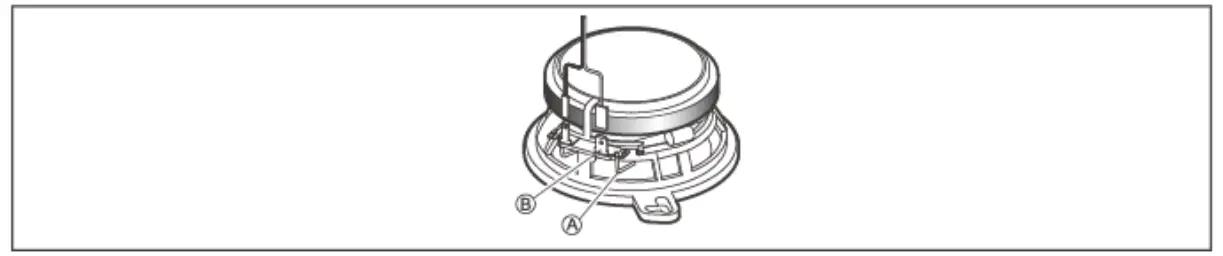

- Do not touch the speaker flexible wire A.
- Do not change the direction of the speaker terminal assembly B.
- Make sure lead and speaker terminals do not contact metal.
- When making connections, refer also to the instruction manual of the car stereo used.
A-series sound design delivers better car-music-life
- Powerful and well controlled bass
- High sensitivity and Wide dynamic range
- Clarity of vocal
Example of coverage
| MAKE | MODEL |
| RAM | RAM TRUCKS |
| JEEP | RENEGADE |
| TOYOTA | CAMRY |
INSTALLATION FIT GUIDE
(For information about specific vehicles applications
http://www.pioneer-carglobal.com/speakerfitting6
How to Install

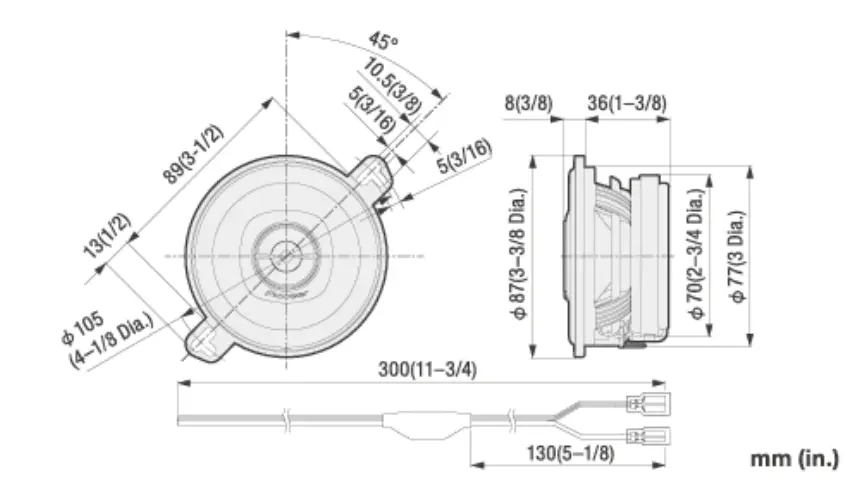

Dimensions
SPECIFICATIONS
- Speaker specifications
| Size | 87 mm (3-1/2″ dia.) |
| • Continuous power handling (RMS) | 100 W |
| • Maximum music power | 450 W* With packaged crossover network |
| • Sensitivity | 85 dB (1 W/1 m) 91 dB (1 W/0.5 m) |
| • Frequency response | 52 Hz to 33 kHz (-20 dB) |
| • Nominal impedance | 4Q |
| • Crossover frequency | 850 Hz* ‘ lnline crossover network |
| • Cutout diameter | 77 mm (3″ dia.) |

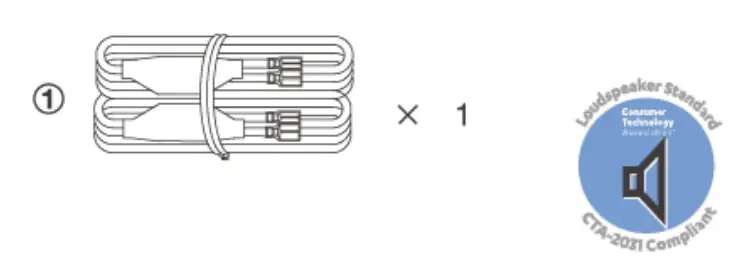

Parts Included
