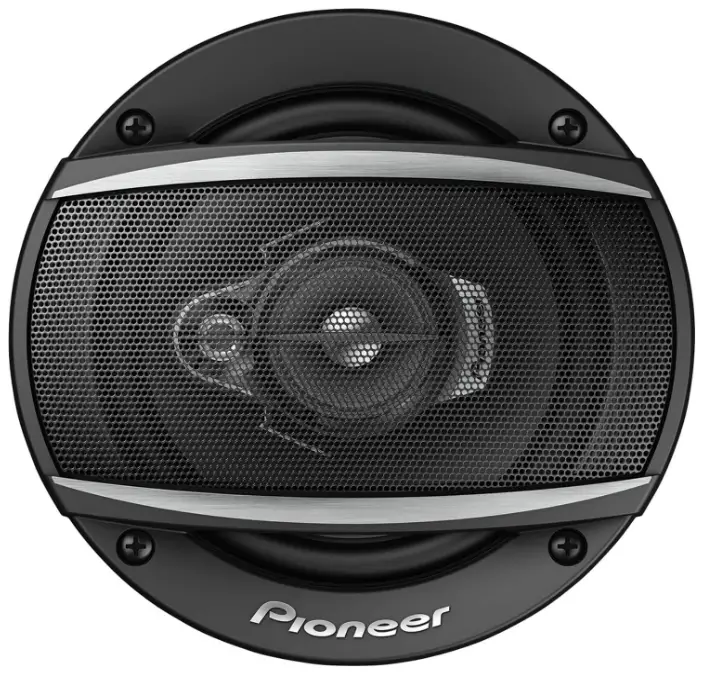

PIONEER TS-A1370F 3-Way Coaxial Car Speakers

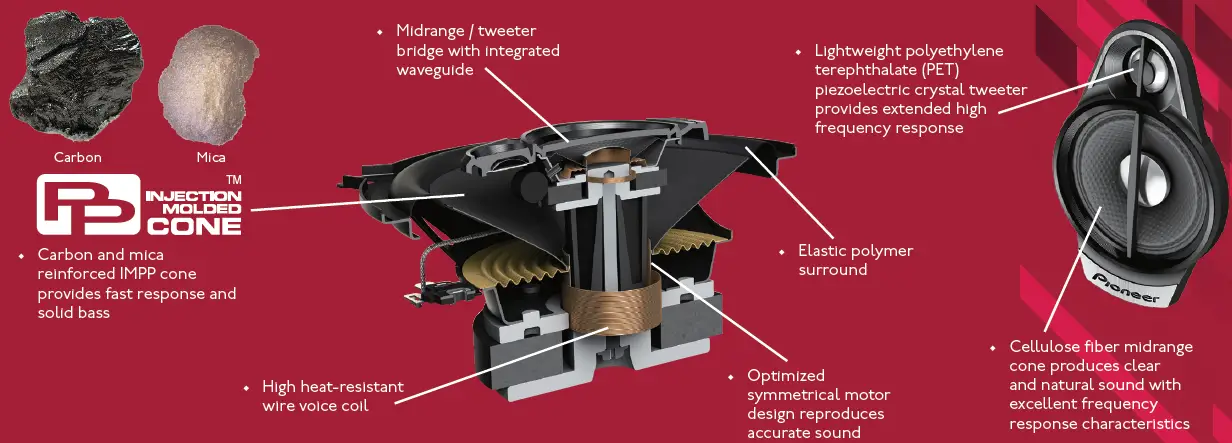

FEATURES AND TECHNOLOGY
- 11mm polyethylene terephthalate (PET) hard dome tweeter
- 1-5/8˝ cellulose fiber cone midrange
- 5-1/4˝ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction

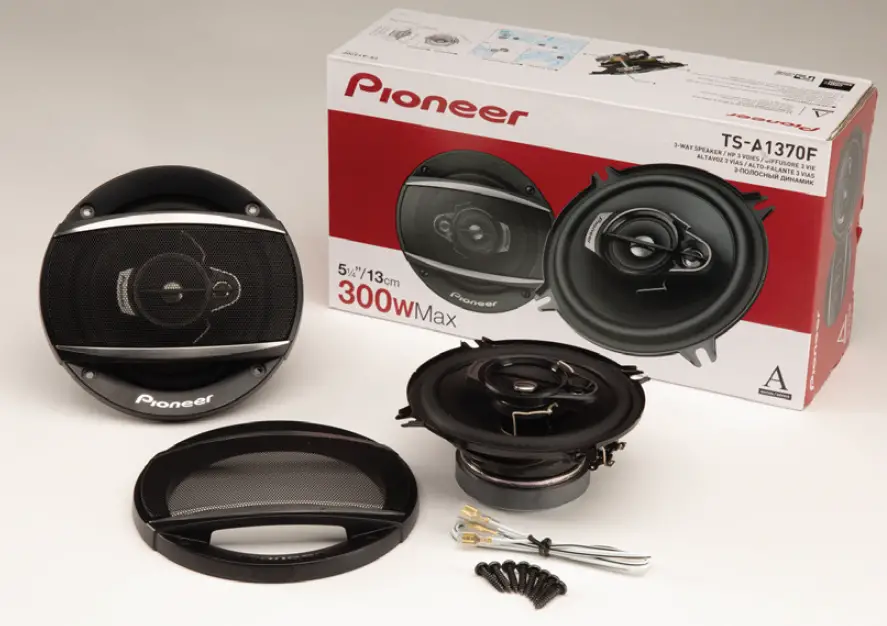

WHAT’S IN THE BOX
EASILY UPGRADE TO HIGH PERFORMANCE
Upgrade Your Sound
- OPEN & SMOOTH™ delivers smooth frequency response and an expansive soundstage
- Clear high frequencies
- Deep, rich bass
- Low distortion, even at high output
EASY INSTALLATION
- Custom-fit for original equipment (OE) 5-1/4˝ or 13cm speaker sizes
- Drop-in replacement installation with improved acoustic performance
Pioneers OPEN & SMOOTH sound concept provides a seamless and smooth transition between the woofer and midrange /tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners™ ears.
SUPPORT
For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer Car Sound Fit app.

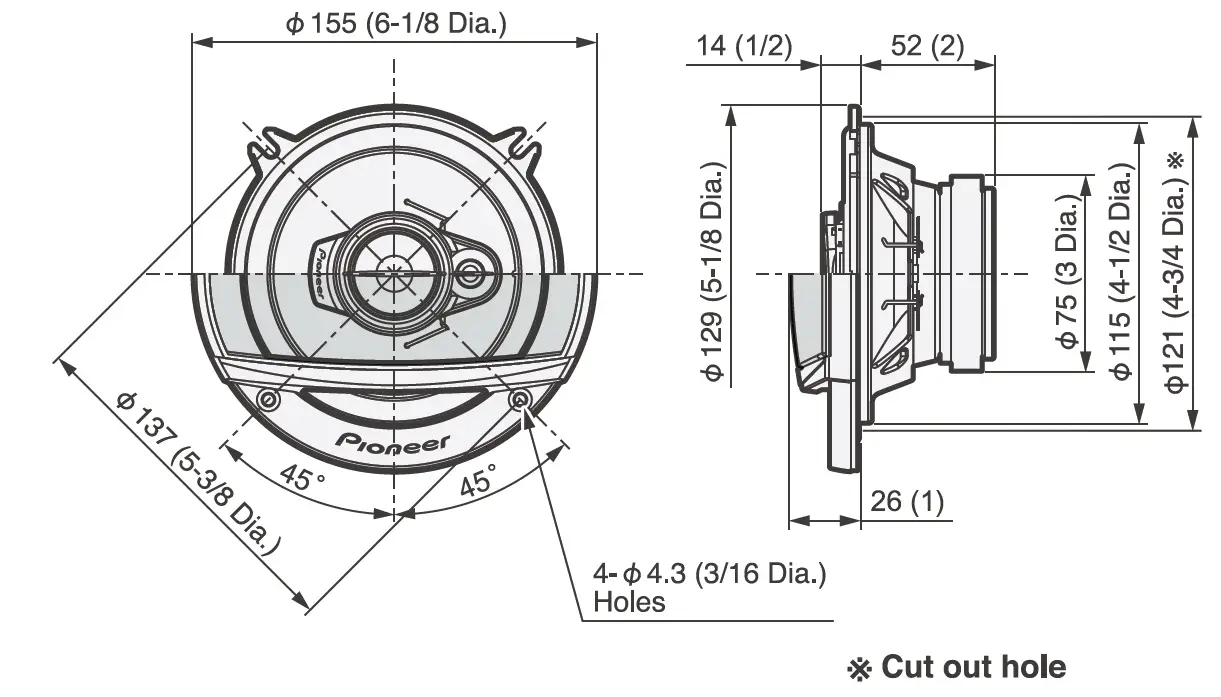

DIMENSIONS
SPECIFICATION
WARNING
Over time, your hearing comfort level adapts to higher volumes of sound, so that what sounds normal can actually be doing harm. To protect against hearing loss, set your equipment’s volume at a low setting, slowly increase it until you can hear it comfortably and clearly, and leave it there. Do not turn up the volume so high that you can’t hear what’s around you.
Protect your investment. Purchase from an Authorized Pioneer Dealer. Only products purchased from an Authorized Pioneer Dealer (or Authorized Pioneer Internet Dealer) qualify for the manufacturer’s warranty and manufacturer’s rebates.
Pioneer Electronics (USA) Inc., Post Office Box 1760, Long Beach, California 90801 Pioneer Customer Service Department: 1-800-PIONEER
Note: Specifications, designs, and user interfaces are subject to modification without notice. Product colors and illumination may differ in photographs from actual appearance due to effects of printing and photography.
PIONEER, OPEN & SMOOTH and the Pioneer logo are trademarks or registered trademarks of Pioneer Corporation.
All other brand, product names, or logos are trademarks or registered trademarks of their respective holders. 2018 TS-A1370F- 9/18 2018 Pioneer Electronics (USA) Inc.
Pioneer Electronics (USA) Inc. proudly supports and encourages you to support the Consumer Technology Association (CTA), Mobile Electronics Certification Program (MECP) for installers and the Specialty Equipment Market Association (SEMA).
FAQs
Are PIONEER TS-A1370F 3 way speakers good for cars?
In conclusion, a 2-way speaker is preferable if you have a limited budget, while a 3-way speaker is fantastic if you enjoy music and care about sound quality. The professionals at El Cajon’s Audio Shack will assist you if you’re still undecided about whether you want a 2-way or 3-way speaker system.
Do PIONEER TS-A1370F 3 way coaxial speakers need a crossover?
You generally don’t need a second crossover if your automobile audio system uses coaxial speakers. The frequencies that reach each driver are already filtered by passive crossovers that are already present in full-range speakers. The built-in speaker crossovers should be more than plenty, even if you add an amplifier to the mix.
Are PIONEER TS-A1370F coaxial car speakers any good?
In conclusion, coaxial speakers are far superior to the single-cone speakers found on factory vehicles in terms of sound quality and range coverage. Coaxial speakers can be 3-way as well, but they are less common than 2-way speakers.
When should you use a PIONEER TS-A1370F 3 way speaker?
Mid frequencies are more perceptible to the human ear. For this reason, a speaker system needs at least two different speaker types: one for midrange and the other for high-frequency, or tweeter, sound. A subwoofer is a third type of three-way speaker that is particularly made for low frequencies, or bass output.
Do you need an amp for PIONEER TS-A1370F 3 way speakers?
In essence, a door speaker amplifier is necessary.
Do PIONEER TS-A1370F coaxial speakers need amp?
Component speakers and coaxial speakers can be powered by your car radio without the need for an amplifier. However, an amp will enable you to receive a lot cleaner sound without distortion, a greater volume, and power for a subwoofer, allowing you to get the most from your speakers.
What is a good crossover frequency for PIONEER TS-A1370F 3-way speakers?
The recommended crossover frequencies for 3-way speakers are 500 Hz and 3.5 kHz. A 3-way system’s middle drivers are most likely unable to provide high-quality audio below 500 Hz or 250 Hz.
How does a PIONEER TS-A1370F 3-way crossover work?
In order to create a 3-way crossover, low-pass, band-pass, and high-pass filters are combined (LPF, BPF and HPF respectively). The HPF and LPF sections are combined to form the BPF part.
Are PIONEER TS-A1370F coaxial speakers full range?
Due to their ability to reproduce a wider range of audio frequencies from a single speaker, coaxial speakers are frequently referred to as “full-range” speakers. The drivers in these speakers are identical to those in component speakers, but they have been merged to save space and money.
What are PIONEER TS-A1370F coaxial speakers good for?
In professional audio, coaxial loudspeakers allow sound from two drivers to emanate from a single source. In comparison to loudspeaker enclosures featuring physically isolated drivers, this feature enables a larger field of listening to a synchronised summation of speaker drivers.
What are PIONEER TS-A1370F 3-way coaxial speakers?
A coaxial speaker, to put it simply, combines a woofer and a tweeter into one component. There is an additional midrange driver in the three-way variant. On a pole that extends to the centre, the tweeter and midrange speaker are mounted. They now have access to the entire audio spectrum in a little package.
How does a PIONEER TS-A1370F 3 way speaker work?
A speaker with three distinct drivers—a bass, midrange, and treble driver—is known as a three-way speaker. The bass component is frequently handled by the woofer. The treble and super-treble sections are solely the responsibility of the tweeter, while the midrange driver is in charge of the midrange or mid-high frequency.
Do PIONEER TS-A1370F coaxial speakers go in the front or back?
The back of the car is often where coaxial speakers are located.
Do you need a PIONEER TS-A1370F crossover for coaxial speakers?
You generally don’t need a second crossover if your automobile audio system uses coaxial speakers. The frequencies that reach each driver are already filtered by passive crossovers that are already present in full-range speakers. The built-in speaker crossovers should be more than adequate, even if you add an amplifier to the mix.
How do PIONEER TS-A1370F coaxial speakers work?
Coaxial speakers, or numerous speakers incorporated into one speaker assembly, are 2-way speakers located on the same “axis.” The majority of coaxial speakers have a separate tweeter with crossover and a separate woofer cone for better sound quality than a typical single cone speaker.
