PIONEER TS-G1620F 2-Way Coaxial Speaker
PIONEER TS-G1620F 2-Way Coaxial Speaker
INTRODUCTION
Be sure to read this instruction manual before installing this speaker.
WARNING
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe level-a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL
- Set your volume control at a low setting.
- Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
- Once you have established a comfortable sound level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES
- Do not turn up the volume so high that you can’t hear what’s around you.
- Use caution or temporarily discontinue use in potentially hazardous situations.
- Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.
CAUTION

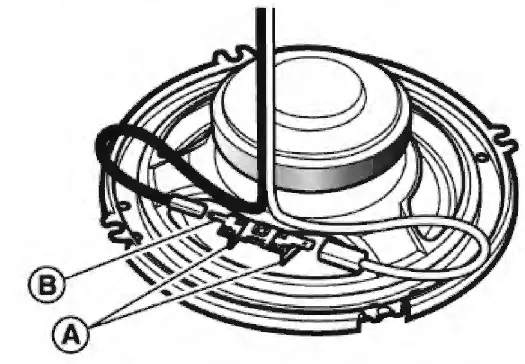

- Do not touch the speaker flexible wire A.
- Do not change the direction of the speaker terminal assembly B.
- Make sure lead and speaker terminals do not contact metal.
- When making connections, refer also to the instruction manual of the car stereo used.

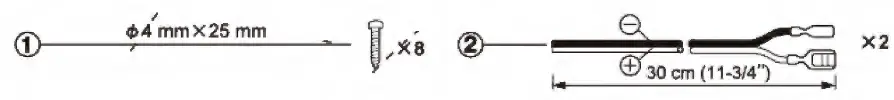

PARTS INCLUDED

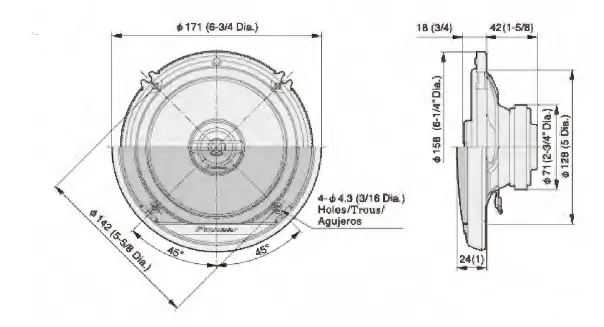

DIMENSION

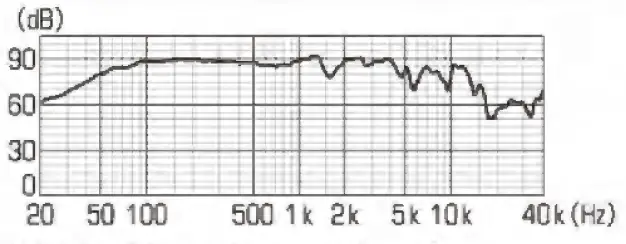

CHARACTERISTICS
Output Sound Pressure Frequency Characteristics Input Voltage 2 V

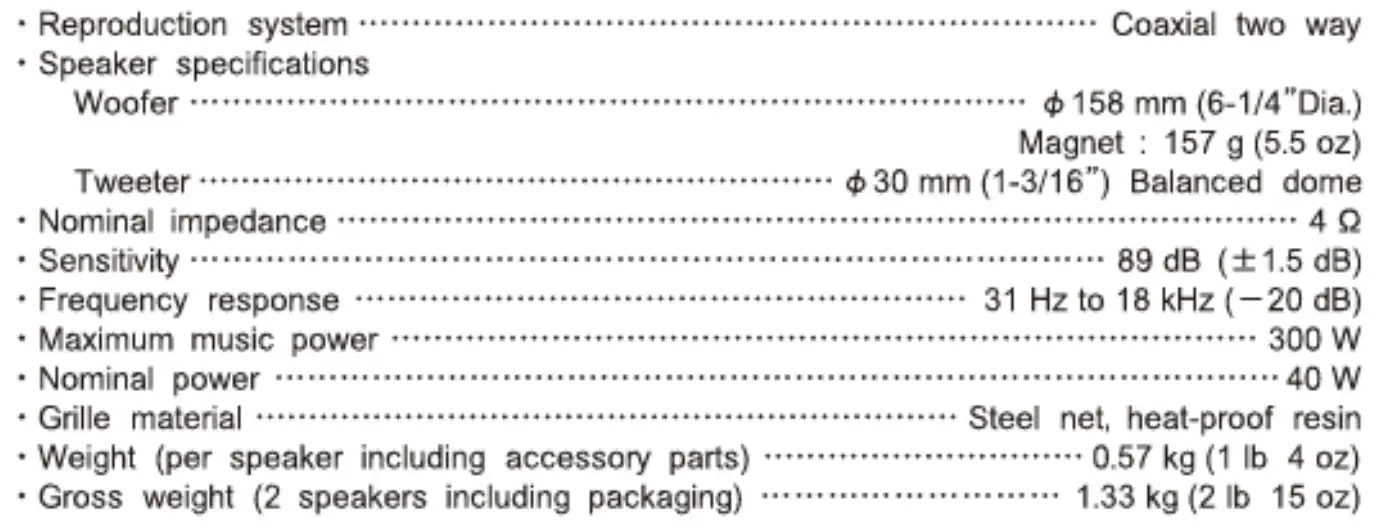

SPECIFICATI0NS

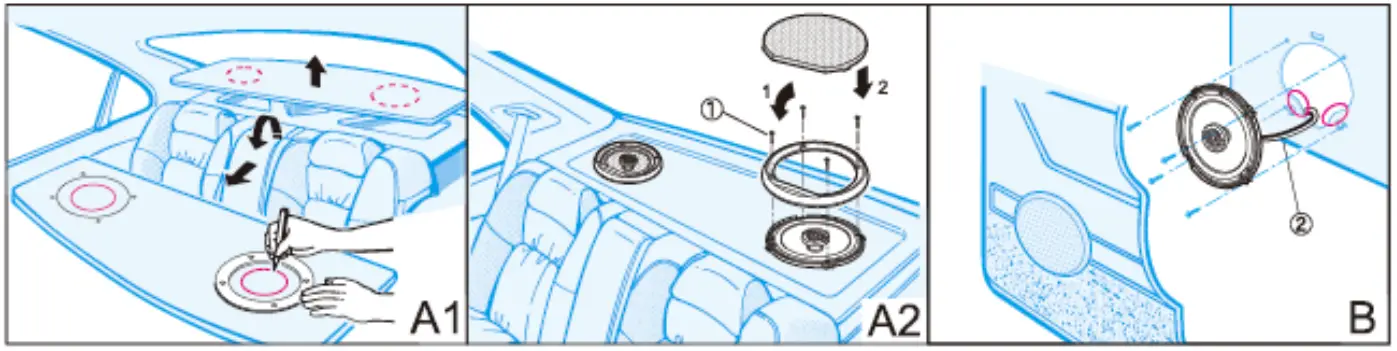

HOW TO INSTALL
Note: Be Careful to avoid interference between the cone vibration and the metal plate protrusion (indicated in pink in the Illustration).
FAQs
What Advantages Do PIONEER TS-G1620F 2-Way Speakers Offer?
The primary benefit of a 2-way speaker is the passive crossover that is integrated into the speaker box, allowing the speaker to operate as effectively as possible. If a signal is only divided into high frequencies and low frequencies, the sound quality is typically better.
Do the two-way coaxial Pioneer TS-G1620F speakers require a crossover?
If your car’s audio system employs coaxial speakers, you typically don’t require a second crossover. Passive crossovers found in full-range speakers already filter the frequencies before they reach each driver. Even if you add an amplifier, the built-in speaker crossovers should be more than sufficient.
What are the applications for PIONEER TS-G1620F coaxial speakers?
Coaxial loudspeakers in professional audio enable sound from two drivers to come from a single source. This characteristic offers a larger field of hearing to a synchronised summation of speaker drivers than loudspeaker enclosures featuring physically isolated drivers.
What do two-way coaxial Pioneer TS-G1620F speakers do?
Coaxial speakers are those that are wrapped around one another. A typical two-way coaxial speaker has a woofer and a tweeter in the centre. The woofer handles the lower frequencies, and the tweeter handles the higher frequencies.
Full range coaxial speakers PIONEER TS-G1620F?
Coaxial speakers are frequently referred to as “full-range” speakers because they can reproduce a larger range of audio frequencies from a single speaker. These speakers’ drivers are the same as component speakers’ drivers, but they have been combined to save space and money.
Are PIONEER TS-G1620F two-way speakers amplified?
Getting an amp for these is highly recommended even though it’s not really necessary. It might involve more than just enjoying great sound while driving.
How effective are the coaxial speakers PIONEER TS-G1620F?
Coaxial speakers are an excellent option for mid-range speakers. Despite the fact that they do offer greater sound quality, it won’t be the best. Additionally, it is more reasonably priced than more advanced ones. However, you can still buy wonderful full-range speakers that sound great on your bike.
Is break-in necessary for PIONEER TS-G1620F coaxial speakers?
Even though it is true that the suspension of a speaker will loosen with time, there is no need to play it at half power or low volumes for an extended period of time in order to help or ease into this.
Have bass PIONEER TS-G1620F 2-way speakers?
Two-way speakers are good for bass because they have a dedicated woofer. The woofer handles low frequency, however if you want to improve the low bass tones and your listening experience, you may add an extra subwoofer.
Do Pioneer TS-G1620F 2-way speakers require a subwoofer?
Although adding a subwoofer to a set of speakers almost always makes sense, especially for smaller bookshelf speakers, a subwoofer is not required for speakers to function.
Need an amplifier for PIONEER TS-G1620F coaxial speakers?
Your car radio may power coaxial and component speakers without the use of an amplifier. To get the most out of your speakers, an amp will allow you to receive a lot cleaner sound without distortion, a greater volume, and power for a subwoofer.
Are tweeters necessary for PIONEER TS-G1620F coaxial speakers?
Coaxial speakers sacrifice some features in order to be affordable and compact. It is usually recommended to use tweeters with a crossover of -6dB/octave. however, the vast majority of producers use a less expensive tweeter material.
Is it possible to use the Pioneer TS-G1620F coaxial speaker at home?
The connectors will need to be replaced if coax is to be utilised as speaker cable. The standard F-connectors must be changed for RCA connectors in order for them to work with your speakers. Though there will be a tonne of problems, theoretically they could work with most speaker kinds and a subwoofer.
Where should PIONEER TS-G1620F coaxial speakers be placed?
Coaxial speakers are generally seen in the back of vehicles.
