Pioneer Ts-a653r 3-way Speaker Instruction Manual

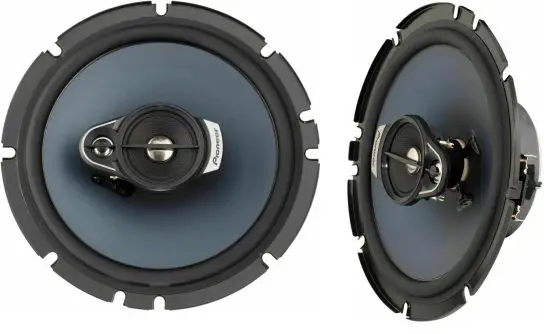

Pioneer TS-A653R 3-Way Speaker

Be sure to read this instruction manual before installing this speaker.

WARNING
Over time, your hearing “comfort leyel” adapts to higher volumes of sound, so that what sounds “normal” can actually be doing harm To protect against hearing loss, set your eqoipment’s volume at a low setting, slowly increase it until you can hear it comfortably and clearly and leave it there. Do not tum up the volurrie so high that you can’t hear what’s around you.

CAUTION

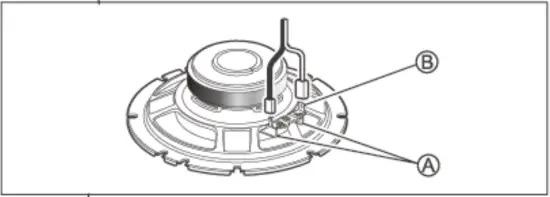

1. Do not touch the speaker flexible wire Ⓐ.
2. Do not change ‘the direction of the speakier terminal assembly Ⓑ.
3. Make sure lead and spea~er terminals do not contact metal.
4. When making ponnection refer also to the instruction manual of the car stereo used.


A-series sound design delivers better car-music-life Powerful and well controlled bass High sensitivity and Wide dynamic range Clarity of vocal

FEATURES

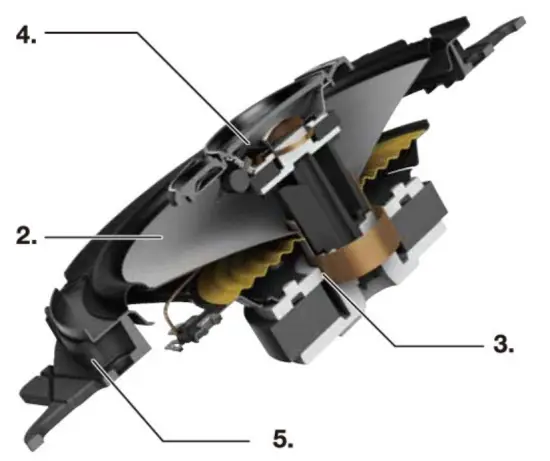

1. OPEN and SMOOTH delivers smooth frequency response and an expansive soundstage
2. Carbon and Mica reinforced IMPP cone provides fast response and solid bass
3. Optimized symmetrical motor design reproduces accurate sound
4. Cellulose fiber midrange cone provides natural vocal
5. Multi-fit adaptors expand installation flexibility and improve acoustic performance



CarSoundFit App Download

Car Sound Simulator Application for more in-car sound experience

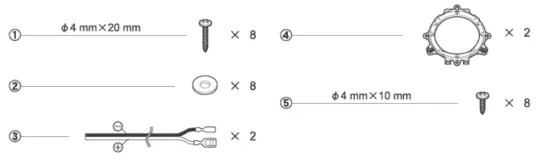

PARTS INCLUDED

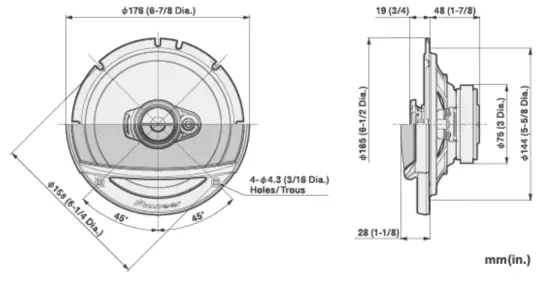

DIMENSIONS

SPECIFICATIONS

EXAMPLE OF COVERAGE

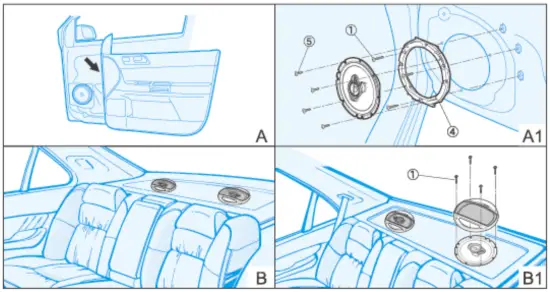

HOW TO INSTALL

Installation Fitting Guide

To find more information for various vehicles and adaptor compatibility
http://www.pioneer-cargfobal.com/speakerfitting2
