TS-A878
2-WAY SPEAKER
HP 2 Voies
Altavoz 2 Vias
87 mm
Instruction Manual
Be sure to read this instruction manual before installing this speaker.
WARNING
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe level a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL:
- Set your volume control at a low setting.
- Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
- Once you have established a comfortable sound level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
- Do not turn up the volume so high that you can’t hear what’s around you.
- Use caution or temporarily discontinue use in potentially hazardous situations.
- Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

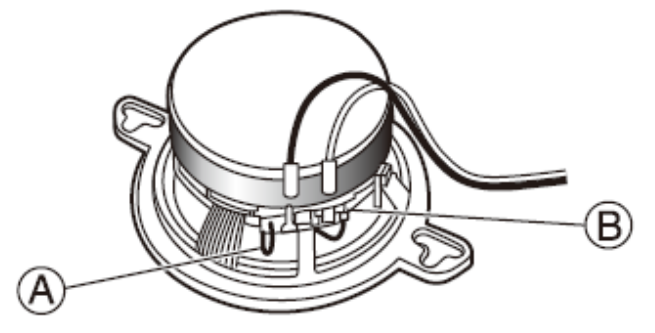

CAUTION
- Do not touch the speaker flexible wire A.
- Do not change the direction of the speaker terminal assembly B.
- Make sure lead and speaker terminals do not contact metal.
- When making connections, refer also to the instruction manual of the car stereo used.
Flush-Mount Car Speaker
3-½ ” (87 mm) COAXIAL 2-WAY
- CUSTOM-FIT
- CARBON GRAPHITE BLENDED IMPP CONE
- PEI DOME TWEETER WITH NEODYMIUM MAGNET
- ELASTOMER SURROUND
- MAX. MUSIC POWER 60 W
- NOMINAL POWER 15 W
- WOOFER Ø3-1/2″
- TWEETER Ø1″ DOME
- IMPEDANCE 4 Ω
- SENSITIVITY 88 dB/W(1 m)
- FREQUENCY RESPONSE 60 Hz TO 28 kHz
- GROSS WEIGHT 0.85 kg 1 lb 14 oz
PARTS INCLUDED
PIECES COMPRISES

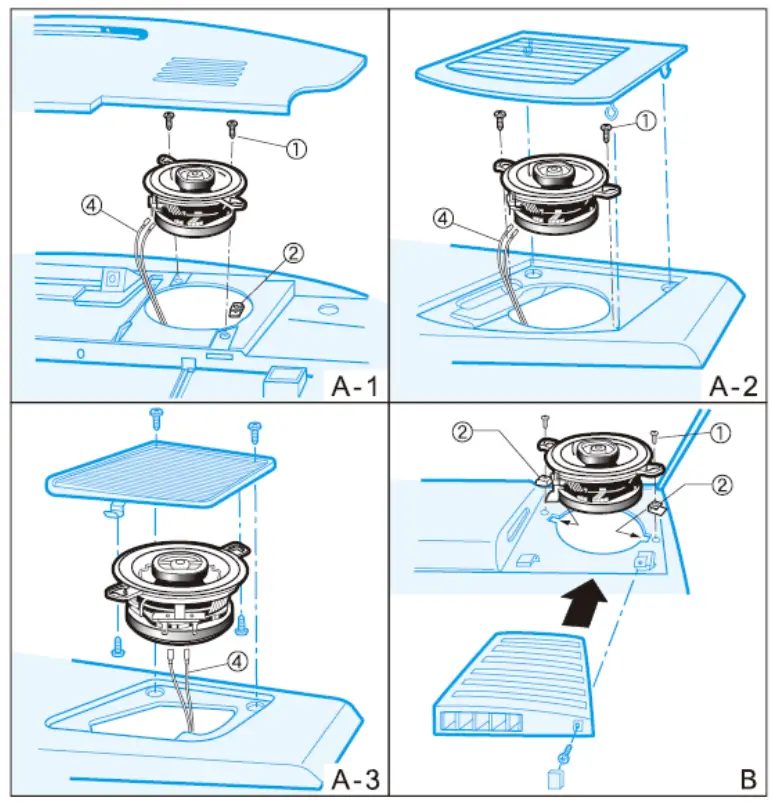

EXAMPLE OF MOUNTING
| VEHICLE MANUFACTURER | MODEL | APPLICABLE YEARS | INSTALLATION METHOD |
| GM | CAVALIER | 1982-1985 | A |
| REGAL | 1984-1987 | A | |
| SKYHAWK | 1983-1989 | A | |
| SUNBIRD | 1982-1993 | A | |
| CUTLASS | 1984-1987 | A | |
| LE MANS | 1988-1993 | A | |
| MONTE CARLO | 1978-1987 | A | |
| EL CAMINO | 1978-1987 | A | |
| MALIBU | 1978-1983 | A | |
| SEVILLE | 1977-1983 | A | |
| COUPE DE VILLE | 1973-1976 | A | |
| FLEETWOOD | 1973-1976 | A | |
| CREW CAB DOOLEY | 1989-1991 | A | |
| JIMMY | 1989-1991 | A | |
| SUBURBAN | 1989-1991 | A | |
| BLAZER | 1989–1991 | A | |
| FORD | THUNDERBIRD | 1983-1984 | A |
| COUGAR | 1983– 1984 | A | |
| VOLKSWAGEN | GOLF (RABBIT) | 1984-1992 | B |
| JETTA | 1985-1992 | B |
HOW TO INSTALL
- The mounting recommendations which you find herein are just some examples. Install in the manner best suited to your car. However, Due to a design change of the car, PIONEER cannot guarantee the accuracy or completeness of all statements and technical information. Consult your dealer before installation.
