ADDAC218 ATTENUVERTERS
USER’S GUIDE
Revision.01
December.2020
Welcome to:
DESCRIPTION
Another addition to our ADDAC200’s CV Utilities
This module features 3 independent Attenuverters each with it’s input, output and 13mm knob
White areas allow the user to write down what is connected to each channel.
Channel 1 is normalled to Channels 2 and 3.
Specs:
4hp
±40mA
2.5cm deep

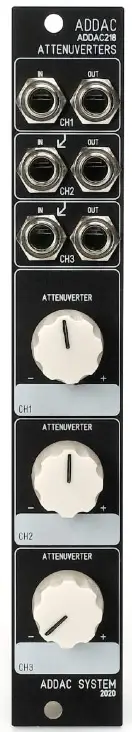

CONTROLS DESCRIPTION
ADDAC218

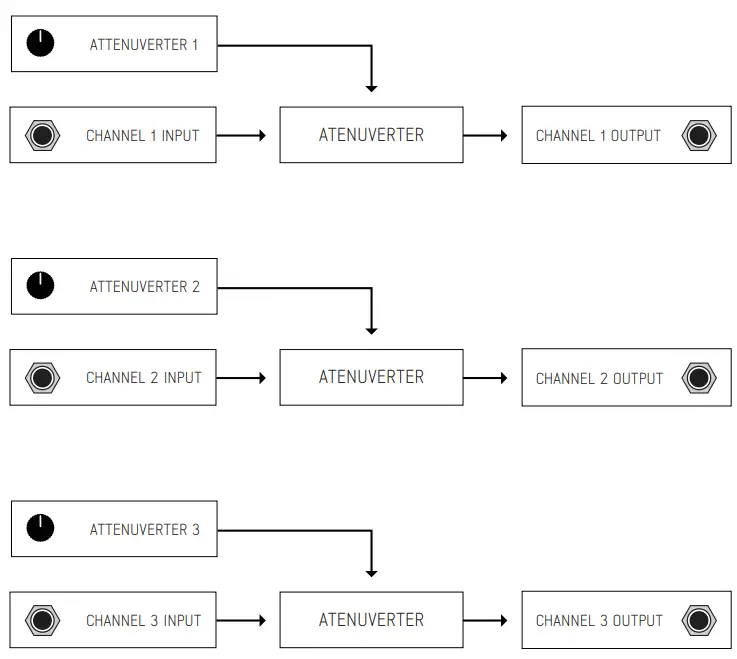

ATTENUVERTERS SIGNAL FLOW DIAGRAM
