Focal Pc 165 Sf Slatefiber 2 Way Coaxial Kit User Manual

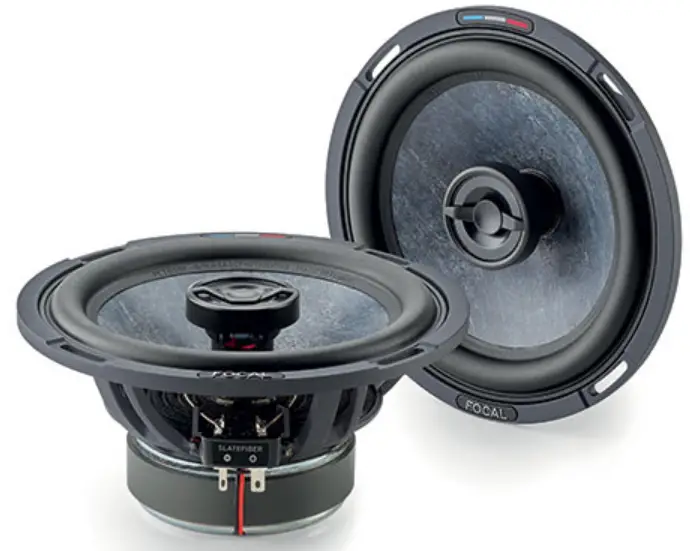

FOCAL PC 165 SF Slatefiber 2 Way Coaxial Kit

IMPORTANT SAFETY INSTRUCTIONS!

1.  Read these instructions.
2.  Keep these instructions.
3.  Heed all the warnings.
4.  Follow all the instructions.
5.  To avoid damaging your hearing, do not listen to loudspeakers at high volumes for long periods of time. Listening to loudspeakers at high volumes can cause damage to the user’s ears and may lead to hearing problems (temporary or permanent deafness. buzzing 1n the ears, tinnitus, hyperacus1s). Exposure to excessive volumes (over 85 dB) for more than one hour can cause irreparable damage to your hearing.
6.  If a subwoofer is installed in your vehicle. it is important to secure it firmly. We recommend that you attach the enclosure to the floor or chassis of the vehicle for safety. If the subwoofer is not properly secured, it could become a proJectile in the event of an accident. This point is even more important if the subwoofer is installed in a hatchback, a station wagon, a utility vehicle or a van.
7.  If cables or harnesses are provided. use them the proper way (like mentioned in this user manual) without replacing or modifying them.
8.  If a fuse is included in the kit or harness, use only same rating one in case of replacement.

SLATEFIBER

PC 165 SF

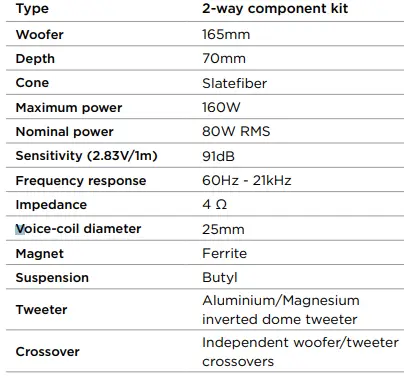

Specifications

Product sheet

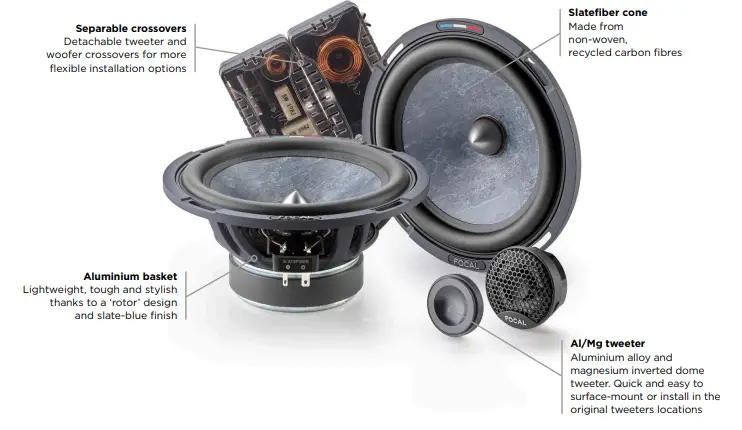

The 61/2″ (16.5cm) 2-way separate Slatefiber kit can be summed up in one word: efficient. This product incorporates the essence of Focal’s latest technologies to deliver performance, reliability and French manufacturing. With standard dimensions and a smart design, it can be installed in most vehicles on the market without the need for an additional dedicated amplifier. However, you can still link these speaker drivers to an amplifier if you want to get the very best performance out of them.

Key points

•  Made in France in the Focal workshops
•  High power handling for intensive use
•  Little amplification requirements due to high sensitivity
•  Tough design and high quality materials
•  Flexible installation options

SLATEFIBE PS 165 SF Technical Sheet

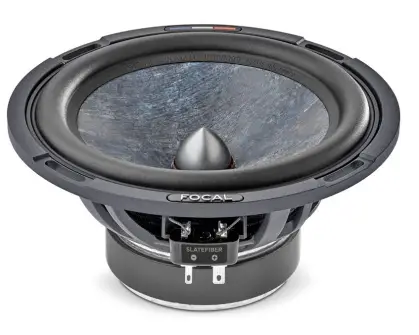

6.5″ Woofer

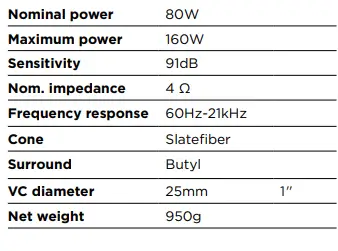

SPECIFICATIONS

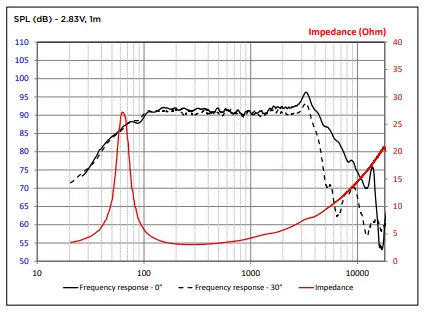

FREQUENCY RESPONSE/IMPEDANCE

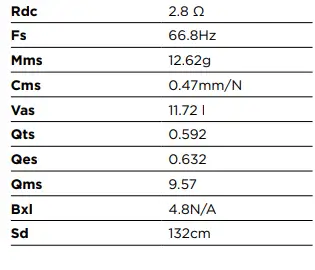

PARAMETERS

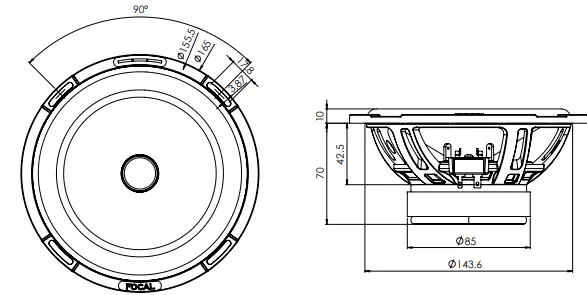

MECHANICAL DRAWING

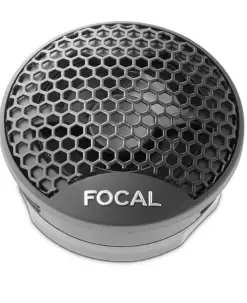

SLATEFIBER TWEETER Technical Sheet

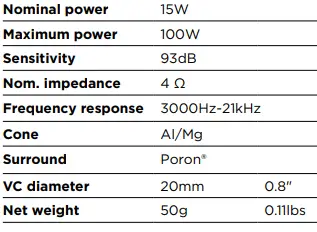

SPECIFICATIONS

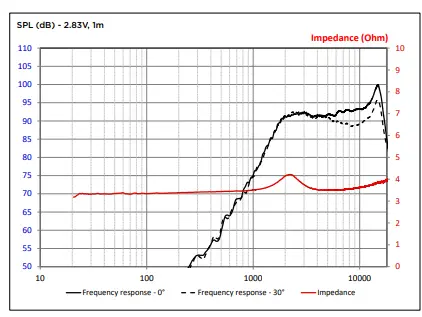

FREQUENCY RESPONSE/IMPEDANCE

PARAMETERS

MECHANICAL DRAWING

Focal’s perfectionist

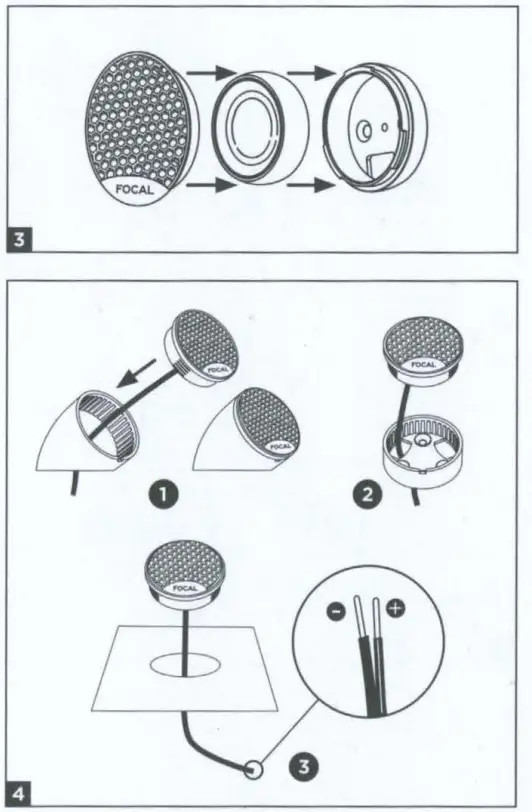

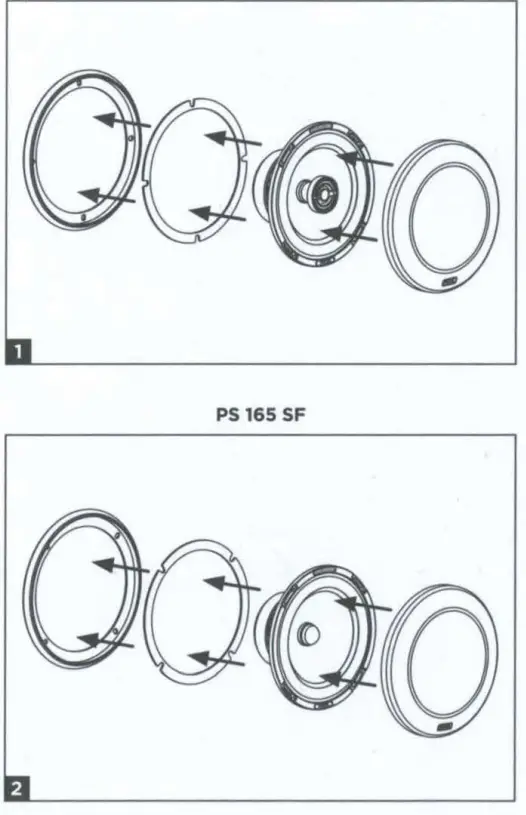

Thank you for choosing Focal kits PC 165 SF, PS 165 SF, and for sharing our passion for sound and for music. Designed using acoustic technologies, these speakers Integrate Focal’s perfectionist beliefs, developing products with high power handling, and unrivaled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained In this user’s manual. If not correctly followed, any fault observed may not be covered by the warranty. Important recommendations First of all, check the space available for fitting the speaker drivers (refer to the plans on the packaging) then proceed with the cutting required. If mounted in the factory location, check that there is sufficient space between the speaker driver and the protective grille

•  Clear the speaker drivers of any metal shavings and dust particles.
•  Clean carefully before mounting the speaker drivers.

Warranty

Conditions of warranty All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor rn your country. Your distributor can provide all details concerning the conditions of the warranty. Warranty cover extends at least to that granted by the legal warranty in force In the country where the original purchase invoice was issued

Correct elimination of this product.

This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchase the product. They can recycle this product safely
