BLAUPUNKT 2-WAY COAXIAL
User Manual
BGx 1602 N
Operating and installation instructions

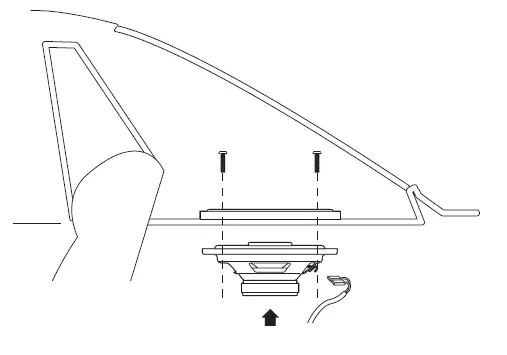

Diagram

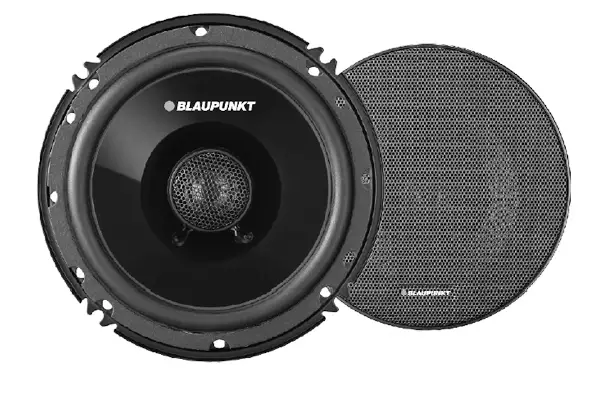

Pair of 6” 2-way coaxial speakers with PP injected cone including mounting hardware
- Max. output power : 100W
- Normal output power (RMS) : 30W
- Impedance : 4 ohms
- Frequency response : 70Hz – 20,000Hz
- Sensitivity : 88dB

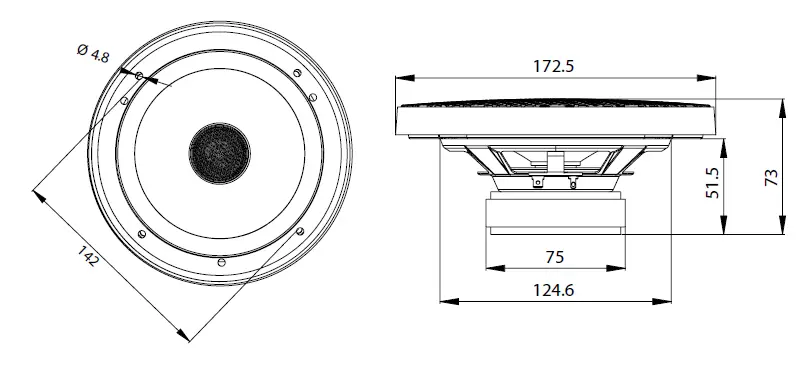

- Mounting depth : 52mm
- Diameter hole : 142mm
- Surround : Rubber
Designed and engineered by Blaupunkt Competence Center
