Oversteel 24vf16k Krypto Series Gaming Monitor User Manual

24VF16K Krypto Series Gaming Monitor
User Manual

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Important Safety Precautions

1. Please read all the instructions carefully before using this product.
2. BE SURE TO unplug the power cord when cleaning LCD. Never clean it with liquid detergent or spraying detergent, but wipe it with wet soft cloth. If it is still not clean, please use special detergent for LCD.
3. DO NOT use accessories not authorized by the manufacturer, other wise they may incur danger.
4. When disconnecting the power cord of display or power adapter, always remember to hold the plug instead of puling the wire to  unplug the power cord.
5. Keep the display away from water sources such as bath tub, washbasin, sink or washing machine.DO NOT place the display on wet floor or near a swimming pool, or press LCD surface with fingers or hard objects.
6. The grooves and openings on the back and bottom of the shell are for ventilation purpose and also for guaranteeing the reliability of the elements and preventing them from overheating; in order to prevent the vents from blocking; DO NOT place the display on bed, sofa, carpet or other similar surfaces; DO NOT place the display near to or on heat radiator or heater; DO NOT put the display into embedded device, unless it is provided with adequate ventilating equipment.
7. Only the type of power source indicated on the nameplate applies to this display. If you have any questions on the type of power source you use, please consult the dealer of the display or local administration of power supply.
8. For safety, the display or the power adapter is equipped with three-pin plug power cord. The third pin of this plug is for grounding, and only applicable to socket that is correctly grounded. In case that your socket is not available for the plug, please contact electrician to replace the socket.
9. Since there is high voltage or other risks when the shell is opened or moved, please DO NOT repair the display by yourself, but request qualified maintenance staff to carry out.
10.  In one of the following cases, please unplug the display or the power adapter and ask qualified maintenance staff for help:
    a. The power cord or the plug is impaired or worn.
    b. The display falls off or the shell is damaged.
    c. The display is obviously abnormal.
11. Please place the display in a cool, dry and well ventilated place.
12. Store the display in temperature range of -10°C~60°C, beyond which the display may be damaged permanently.

Power & Electrical Warnings
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.
The wall socket shall be installed near the equipment and shall be easily accessible.
Read the safety instructions carefully and thoroughly.
All cautions and warnings on the device or user’s manual should be noted. Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference.
To prevent fire or shock hazard, keep this device away from humidity and high temperature.
Lay this device on a reliable flat surface before setting it up.
Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before connecting the device to the power outlet. Do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socketoutlet. Always disconnect the power cord or switch the wall socket off if the devicewould be left unused for a certain time to  achieve  zero energy consumption. Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
The ventilator on the device is used for air convection and to prevent the device from overheating. Do not cover the ventilator.
Do not leave the device in an unconditioned environment with a storage temperature above 60OC or below -20OC, which may damage the device.
NOTE: The maximum operating temperature is around 40OC.
When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.
Always keep strong magnetic or electrical objects away from the device.
If any of the following situations arises, get the device checked by service personnel:

• The power cord or plug is damaged.
• Liquid has penetrated into the device.
• The device has been exposed to moisture.
• The device does not work well or you can not get it work according to user’s manual.
• The device has dropped and damaged.
• The device has obvious sign of breakage

Warning!
Overuse of screens is likely to affect eyesight.
Recommendations:

1. Take a 10-minute break for every 30 minutes of screen time.
2. Children under 2 years of age should have no screen time. For children aged 2 years and over, screen time should be limited to less than one hour per day

IMPORTANT SAFETY PRECAUTIONS

Do not place the monitor in rain, humid environment or open the monitor case to avoid any shock, electrical hazards, and/or mechanical hazards.
Operation

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.
• Keep the monitor out of water source
• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.
• Do not block the ventilation holes.
• Do not knock or drop the monitor during operation or transportation.
  Maintenance Guidelines

CAUTION

• Do not place the monitor in rain, humid environment or open the monitor case to avoid any shock, electrical hazards, and/or mechanical hazards.
•  Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

Caring for Your Monitor

• To clean your screen, slightly dampen a soft, clean cloth with water.
• If possible, use a special screen-cleaning tissue or solution. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a slightly dampened, warm cloth to clean the frame. Avoid using detergent of any kind as some detergents might leave a milky film on the plastics.
• Unplug the monitor if you are not going to use it for an extendedperiod of time.
• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment. If your monitor gets wet,
  wipe it with dry cloth as soon as possible.

Product Description

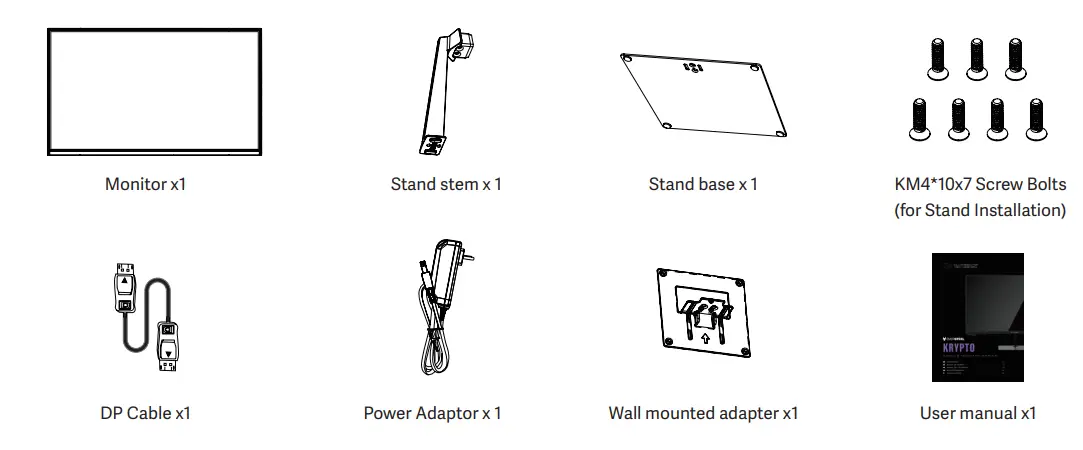

The screws come in different sizes: NO.1 (11mmx4pcs), NO.2 (35mmx4pcs). Extra screws may be included as backup.

 Product Overview

2.1 Monitor Buttons

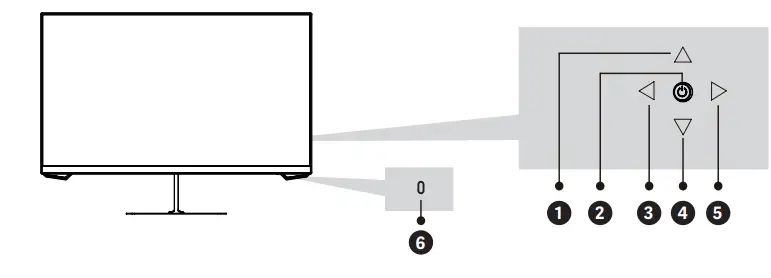

1	Press Rocker up	Scene mode.
2	Power Button	Turn off monitor (longpress).
3	Press Rocker to the left	Input selection.
4	Press Rocker own	Game Crosshair.
5	Press Rocker to the right	main menu.
6	LED Indicator	Changes colors to indicate status.

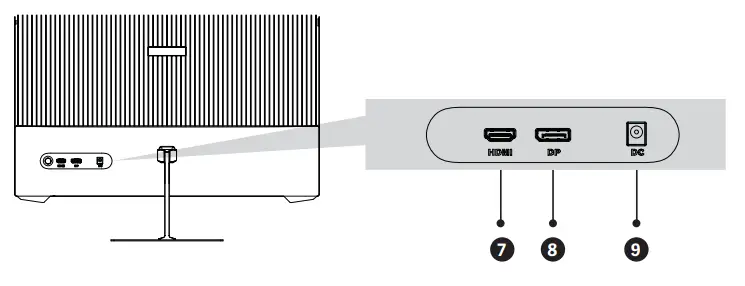

2.2 Monintor Ports

Stand Installation

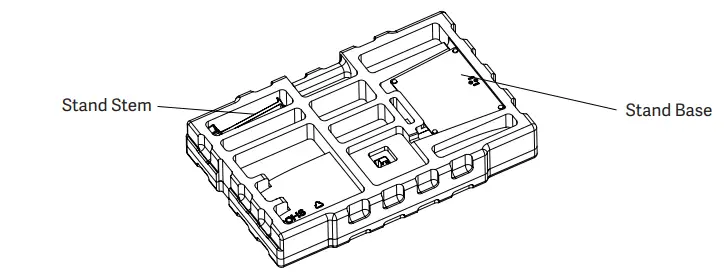

Keep the foam underneath the monitor before attaching the stand.

1. Open the package to take out foams and put them on a flat tabletop.

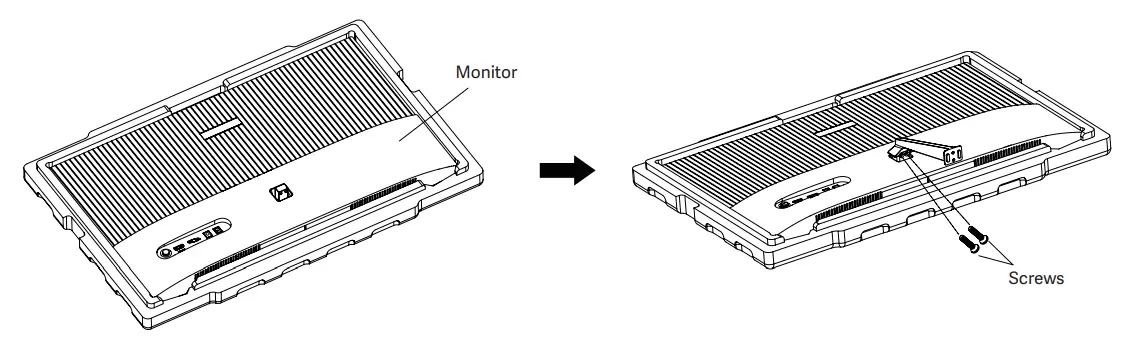

2. Take out the stand, install it on the rotary shaft 1 of the monitor and tighten them with 2 screws.
3. Open the package and take out the product with the foam still a ached. Carefully place it on a desk or table and shield the screen.
   Take out the base, align it with the bottom of the stand and tighten them with 2 screws.

Wall Mounting

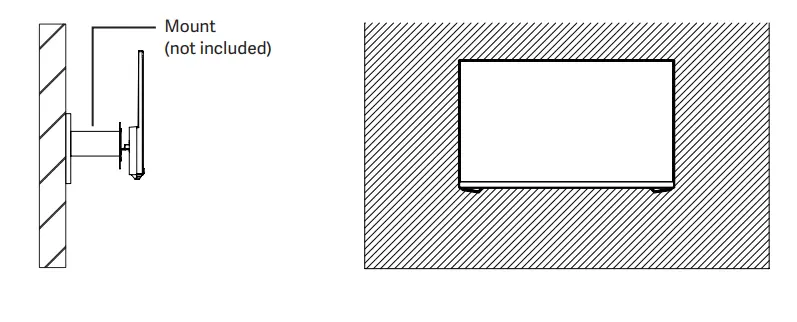

This monitor only includes screws which may be used when aaching the monitor to a VESA 75*75mm type mount. No VESA mount or mounting accessory is included.

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.

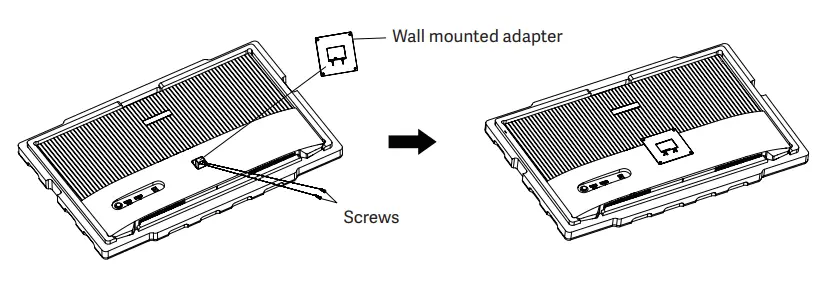

2. Open the top cover of poly dragon, take out the film covering bag of the fuselage, and then place the fuselage in the bottom cover of poly dragon. Take out the wall mounted adapter and 2 screws. Lock the wall mounted adapter with two PM4 * 10mm screws. Do not discard the original screws. These may be needed for future use.
3. Follow the directions received with your mount, stand, or accessory and install the monitor on the wall or fixture as desired.


Basic Operation

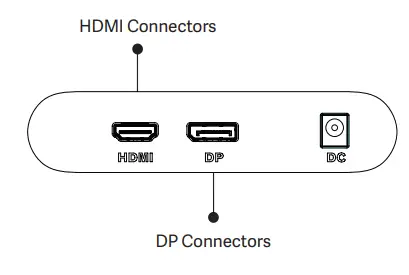

1. Insert one end of the DP cable into your PC’s graphics card. A HDMI cable may also be used. A HDMI cables is not included.
2. Connect the power cable to your monitor, then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.

Adaptive-Sync
This feature is off by default. To activate, you must have hardware with Adaptive-Sync capability, a DP or HDMI cable, and the latest graphic drivers.
After connecting your computer and monitor with a DP or HDMI cable, you may receive a prompt to enable the feature on your computer. If you do not, you may need to enable the function in your graphics card menu. See your graphics card manufacturer’s documentation for instructions.

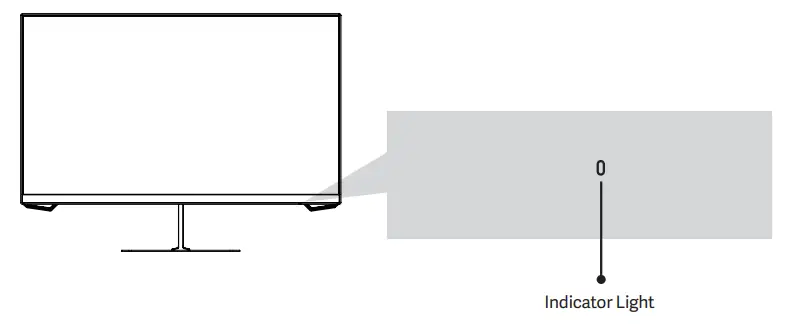

lndicator Light

Solid blue light indicates power is on and the monitor is operating nor mally. Flashing blue light indicates no video source, no horizontal or vertical signal has been detected or voltage is low. Please ensure your computer is on and all video cables are fully inserted and/or connected.

OSD Menu

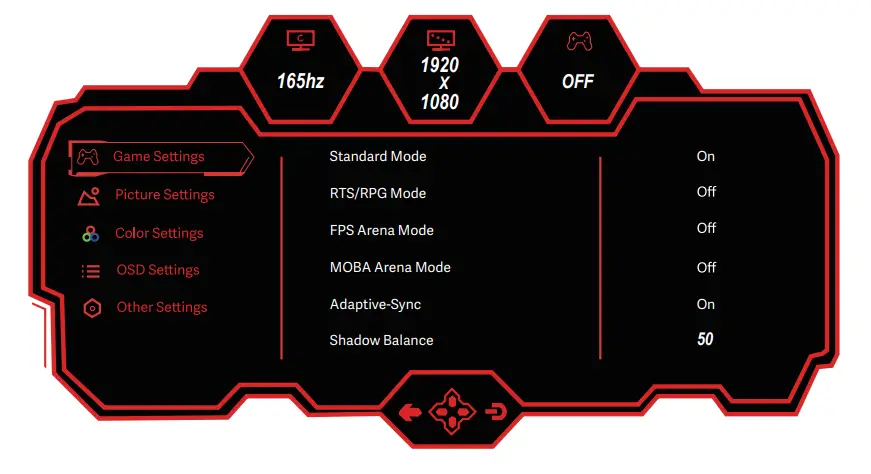

The on-screen display (OSD) menu can be used to adjust the settings of the display and is displayed on the screen when the display is turned on and the buon is toggled to the right.
When using the monitor for the first time, seings will automatically adjust to optimal settings according to your computer’s standard configuration settings.

1. Press rocker to the right to enter the OSD screen.
2. Press rocker up or down to browse functions.
   a. Highlight the functions you want to set and press rocker right to enter the submenu.
   b. Press rocker up or down to browse the sub-menu and press the rocker right to highlight the functions you want to set.
   c. Press rocker  up or down to highlight the options and press the rocker right to confirm the settings.
3. Press rocker to the left to exit the current screen.

OSD Menu Functions

Technical Specifications of Product
