Itek Itmc32v241fhd 31.5 Inch Ggc Curved Gaming Monitor User Manual

itek ITMC32V241FHD 31.5 Inch GGC Curved Gaming Monitor

Safety Precautions

WARNING: Safety Instructions
Do not place the monitor in rain, humid environment or open the monitor case to avoid any shock, electrical hazards, and/or mechanical hazards.

Operation

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.
• Keep the monitor out of water source.
• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.
• Do not block the ventilation holes.
• Do not knock or drop the monitor during operation or transportation.

Maintenance Guidelines

CAUTION
Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

Caring For Your Monitor

• To clean your screen, slightly dampen a soft, clean cloth with water, If possible, use a special screen-cleaning tissue or solution. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a slightly dampened, warm cloth to clean the frame. Avoid using detergent of any kind as some detergents might leave a milky film on the plastics.
• Unplug the monitor if you are not going to use it for an extended period of time.
• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment. If your monitor gets wet, wipe it with dry cloth as soon as possible.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

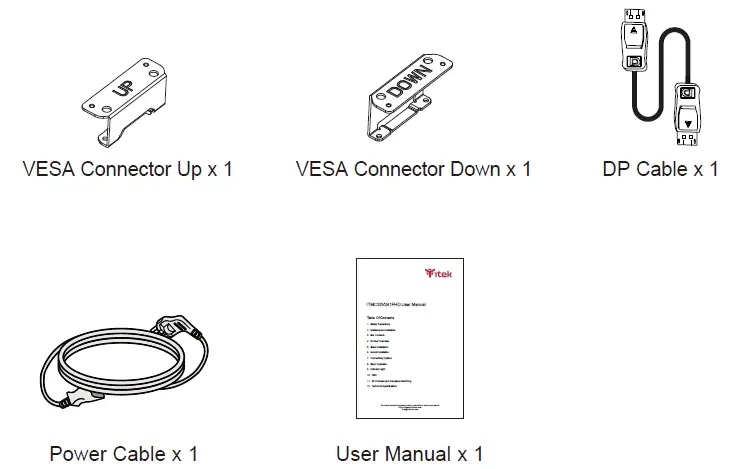

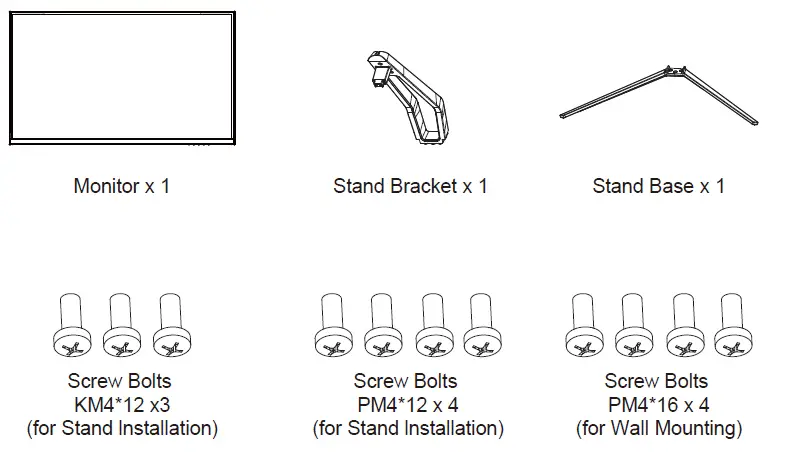

Box Contents

Product Overview

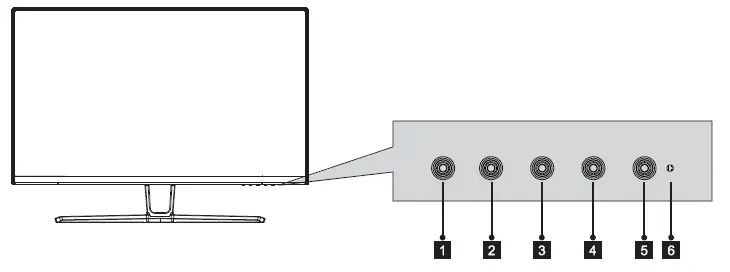

Monitor Buttons

1. M Menu Button : Press to display the OSD menu or enter sub-menus.
2. Down Button: Press to move down in the menus.
3. Up Button: Press to move up in the menus.
4. E Exit Button  : Press to exit.
5. Power Button : Press to turn the monitor on/off.
6. LED Indicator: Changes colour according to status.

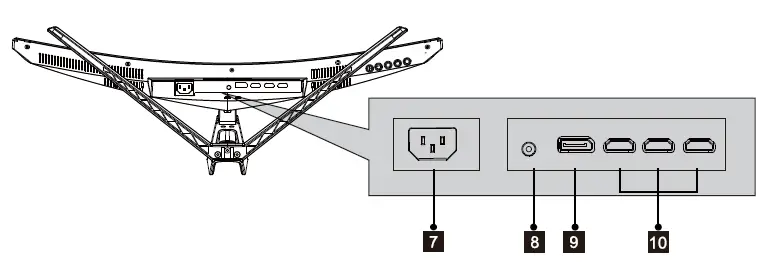

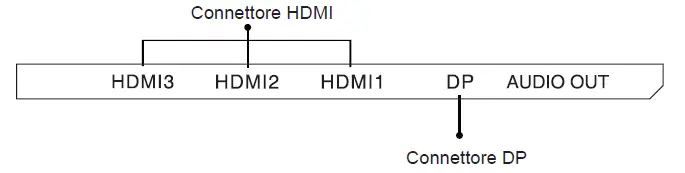

Monitor Ports

7. Power Connector: Insert the power cable to supply power to the monitor.
8. HDMI Connectors: Insert one end of the HDMl cable into the computer’s
   HDMl output and connect the other end to the monitor’s HDMI port.
9. DP Connector: lnsert one end of the DP cable into the computer’s DP output and connect the other end to the monitor’s DP port.
10. Audio Output: Insert the audio cable for output of audio signals.

Stand Installation

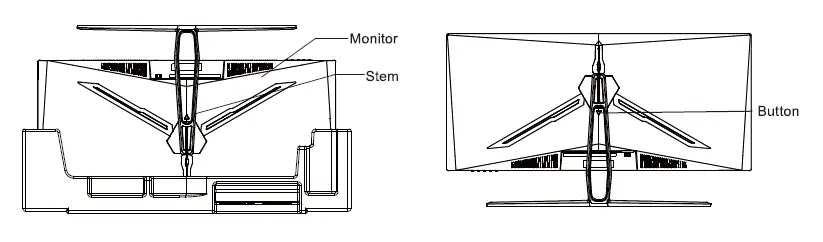

Make sure the monitor is laid on a flat surface before removing the stand.

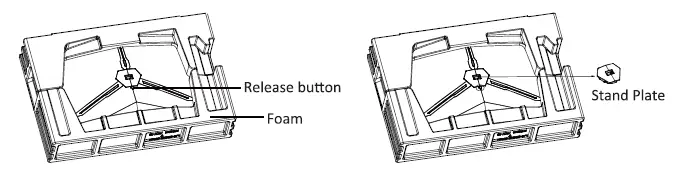

1. Open the package, take out the product out with the protective foam still attached and gently lay it flat on a desk or table. Remove the extra parts and the foam covering the back of the monitor. Then press the button to remove the stand plate.

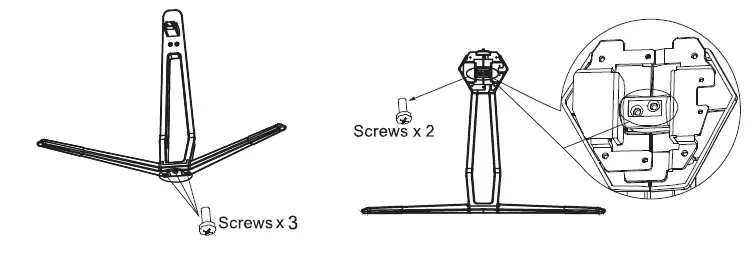

2. Use a screwdriver (not included) and three PM4*12 screws to fix the base to the stem, and then use two KM4*12 screws to fix the bracket plate to the stem.
3. Use the base bracket assembly assembled in step 2 to align the machine slot and buckle down. (note: press and hold the quick release button with your fingers to take out the base bracket assembly)

Mount Installation

This monitor only includes screws which may be used when attaching the monitor to a VESA 75*75mm type mount. No VESA mount or mounting accessory is included.

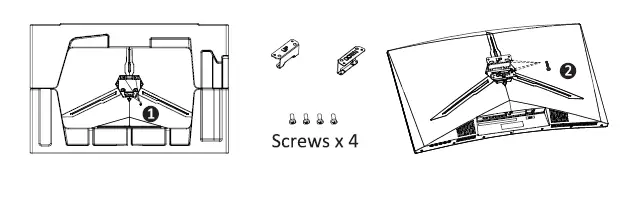

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. Press the release button to remove the stand plate. lf the monitor was already attached to the stand, remove the stand.
2. Remove the original screws ( ) from the opening in the back of the monitor. Then use the 4pcs PM4*16 screws to attach the adapters inside the opening.
   • Do not discard the original screws.
   • Use only the 4pcs PM4*16 screws ( ) provided. You MUST follow the instructions below for secure installation.

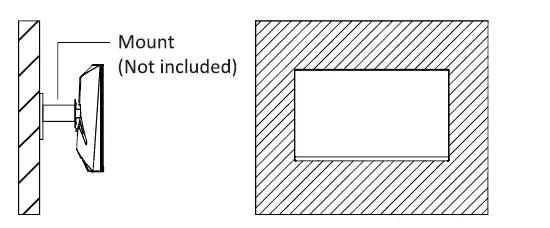

3. Your monitor is now ready to be attached to a wall-mounting bracket. To avoid damage, please do not pinch the screen during bracket installation.

Connectivity Options

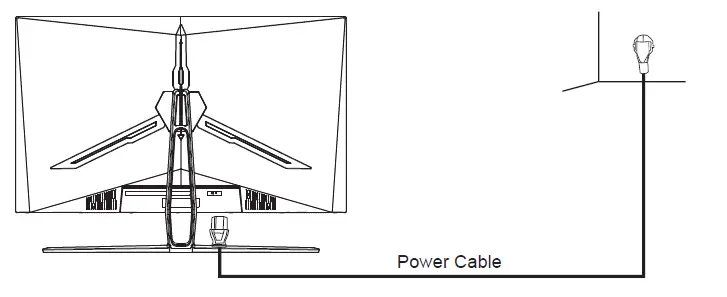

Connecting the Power Cable

Connect the included power cable to the power connector, and then plug the other end into an wall outlet.

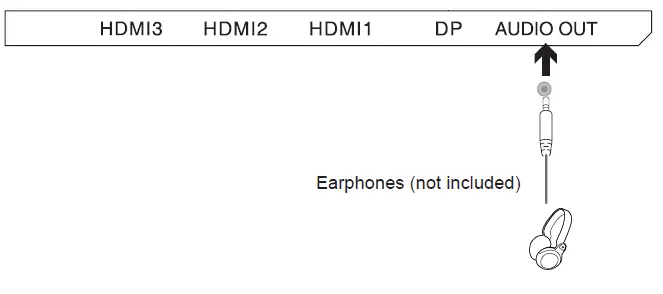

Connecting Your Earphones

Plug in your earphones to receive audio signals from your monitor.

Exposure to loud audio for prolonged periods of time may permanently damage your hearing.

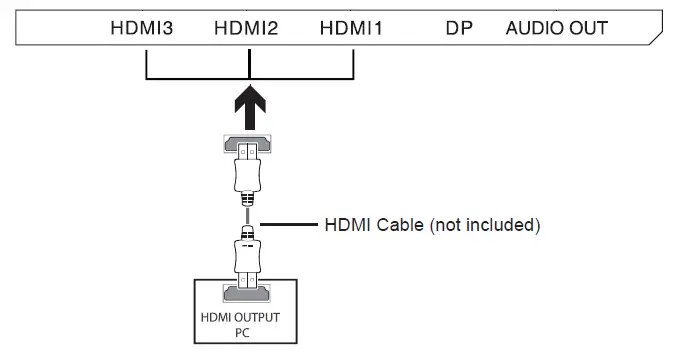

HDMI Connectivity

For the monitor to receive HDMl signals from the computer, use the HDMI cable to connect the monitor to the computer.

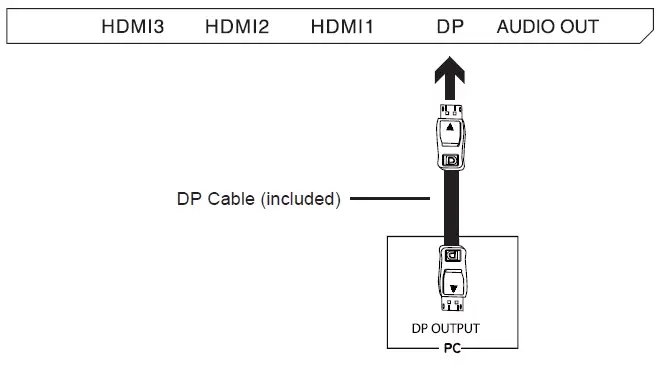

DP Connectivity

For the monitor to receive DP signals from the computer, use the DP cable to connect the monitor to the computer.

Basic Operation

1. Insert one end of the DP cable into your PC’s graphics card. A HDMl cable may also be used.
2. Connect the other end of the cable to the corresponding connector on your monitor.
3. Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn on the monitor.

Adaptive-Sync
This feature is off by default. To activate, you must have hardware with Adaptive-Sync capa-bility, a DP or HDMI cable, and the latest graphic drivers. After connecting your computer and monitor with a DP or HDMI cable, you may receive a prompt to enable the feature on your computer. If you do not, you may need to enable the function in your graphics card menu. See your graphics card manufacturer’s documentation for instructions.

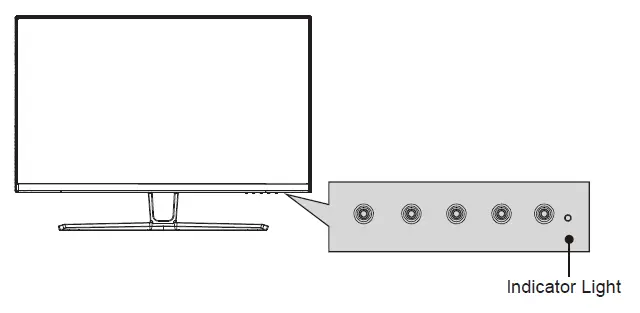

Indicator Light

Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light-indicates no video source, no horizontal or vertical signal has been detectde or voltage is low. Please ensure your computer is on and all video cables are fully inserted and/or connected.

OSD

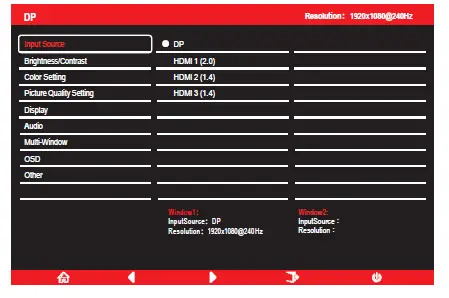

The On-Screen Display(OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button.

When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc.

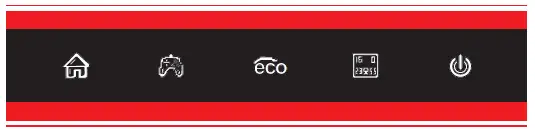

1. Press any one of the buttons to activate the navigation window.
2. Press to enter the OSD menu.
3. Press or to browse functions.
   • Highlight the desired function, then press M to enter the sub-menu.
   • Press or to browse sub-menus, then press M to highlight the desired function.
   • Press or to highlight an option, then press M to confirm the settings and exit the current screen.
4. Press E to exit the current screen

OSD Menu Functions

ECO Modes and Gameplus Switching

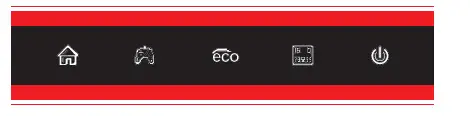

1. Press any of the buttons ( M , , , E , ) to activate the navigation window
2. Press button to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed
   to optimize your aim during shooting games, though they can be used for other scenarios.

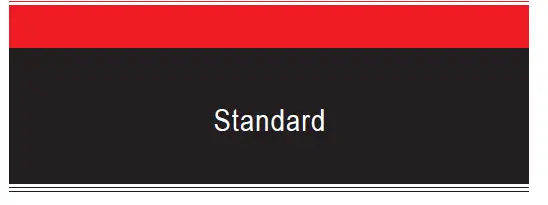

3. Press button to switch between multiple Picture modes, among which the standard mode is suitable for most activities.

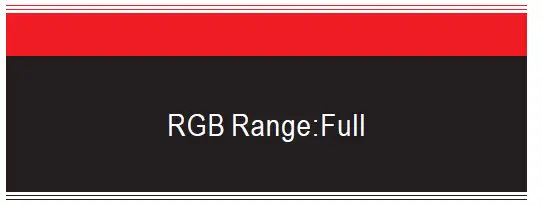

4. Press E to switch color gamut mode between “Limited” and “Full” when optimal configuration is used.

Technical Specifications
