SDI01A-12G 12G-SDI to HDMI 2.0 Converter
User Manual
SDI Converter
Model : SDI01A-12G
12G-SDI to HDMI 2.0 Converter with Audio
Embedded/Extractor
Introduction
SDI01A-12G is a 12G-SDI to HDMI 2.0 converter that can allows you to monitor 12G SDI video using a cost-effective HDMI display. The new converter has a built-in SDI loop-out port to send the input SDI signal to an extra SDI device.
Furthermore, SDI01-12G also features diverse audio interfaces for audio embed or extract to integrate with your professional audio equipment.
Features
- Resolution up to 4K@60Hz 4:4:4 HDMI and 12G-SDI.
- Built-in fiber module for long distance transmission.
- Built-in SDI loop out.
- Built-in XLR (AES/ EBU), 6.3mm phone jack, and RCA audio interfaces
- Supports HDMI audio embedder and SDI audio extractor.
- Support HDMI video up/down scaler.

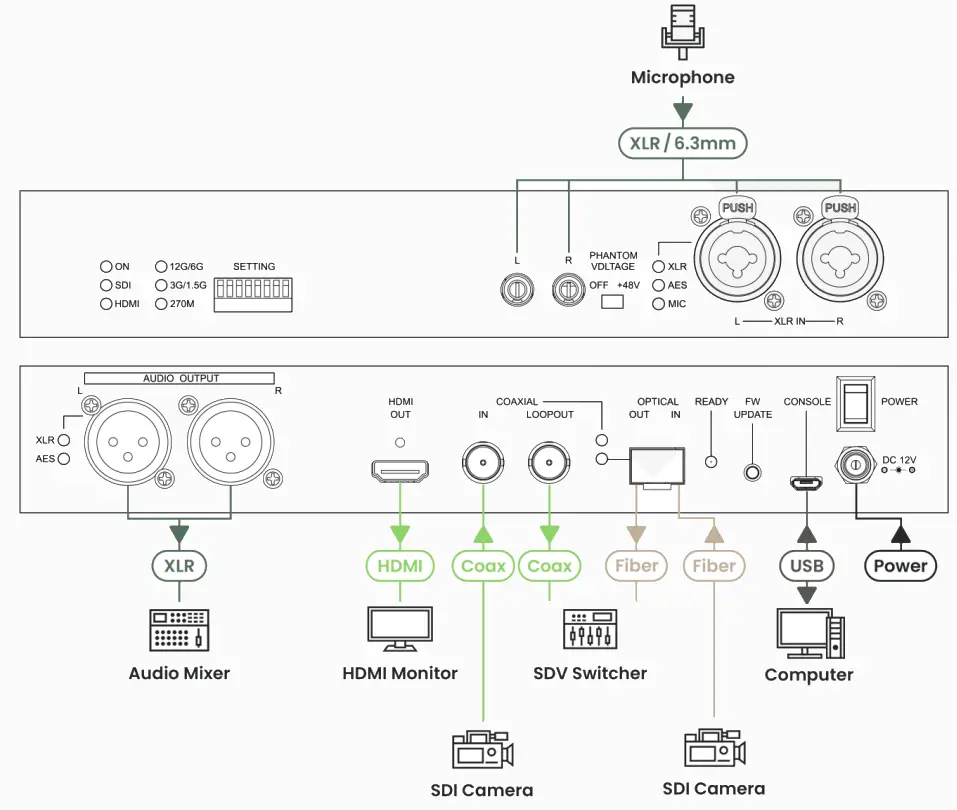

Diagram
Step by step installation
- Connect 12G-SDI source to SDI01A-12G by 12G RG6U cable (BELDEN 4694 or higher).
- Connect 4K 6G HDMI monitor to SDI01A-12G by HDMI 2.0 premium cable.
- Connect 12G-SDI monitor to SDI01A-12G by 12G RG6U cable (BELDEN 4694 or higher).
- Connect AUDIO INPUT/OUTPUT between SDI01A-12G and audio equipment by XLR cable.
- Connect DC 12V power adaptor to SDI01A-12G and turn on POWER switch.

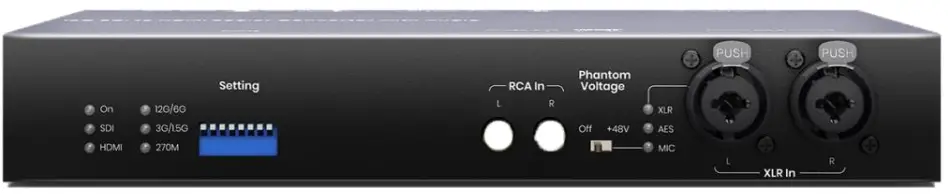

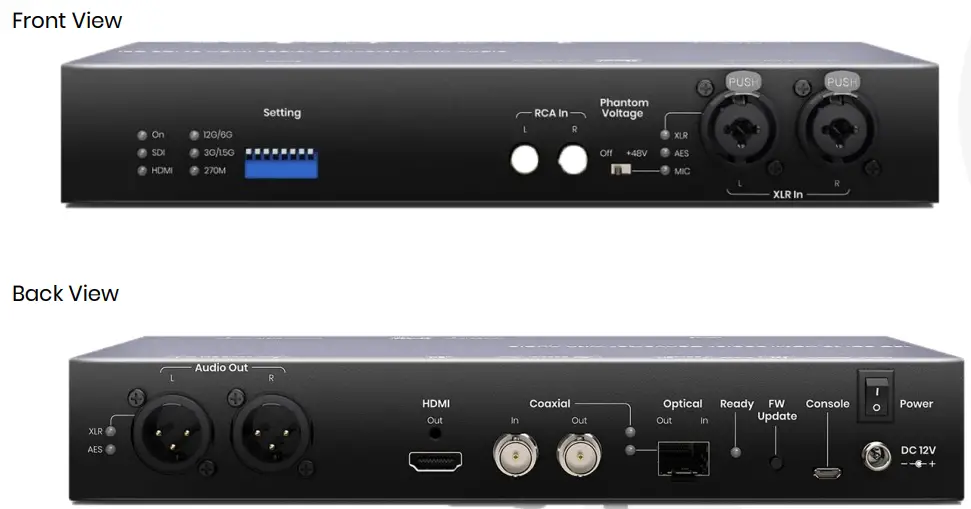

Panel View
SDI Input
– Coax/Optical
SDI Loop out
– Coax/Optical
Audio Input
– SDI 8 Channel by Group selection
– 2 CH XLR / RCA / 6.5mm phone jack/ AES
Audio Output (simultaneously)
– HDMI
– 2 Channel XLR / 6.5 mm phone jack/ AES
Micro USB
– Firmware update
– System setting
– HDMI audio mapping
Mechanical Dip Switch
– Select audio interface
– Select HDMI resolution
– HDCP On / off
LED Indication
Front Panel LED | Function | ON | Blink |
| Green ON | Power | Power Good | |
| Green SIGNAL | SDI Signal Indicator | Signal Locked | |
| Green HDMI | HDMI Output Indicator | HDMI Outputted | Resolution not supported |
| Blue 12G/6G | 12G/6G Indicator | 12G-SDI | 6G-SDI |
| Blue 3G/1.5G | 3G/1.5G Indicator | 3G-SDI | 1.5G-SDI |
| Blue 270M | 270M Indicator | 270M-SDI | |
| Green XLR | XLR Input Indicator | XLR Input | |
| Blue AES | AES Input Indicator | AES Input | |
| Red MIC | Mic Input Indicator | Mic Input |
Rear Panel LED | Function | ON |
| Green READY | System Ready Indicator | System Ready |
| Blue SDI | Coaxial Indicator | Coaxial Input |
| Blue Optical | Optical Indicator | Optical Input |
| Green XLR | XLR Output Indicator | XLR Output |
| Blue AES | AES Output Indicator | AES Output |
Dip Switch Settings
| No. | Function | ↑ OFF | ↓ ON |
| 1 | Video Input Select | Coaxial Input | Optical Input |
| 2 | Audio Mode | Audio Extractor | Audio Embedder |
| 3 | Audio Select | 4↑ 3↑ = XLR | 4↑ 3↓ = RCA |
| 4 | 4↓ 3↑ = MIC | 4↓ 3↓ = AES | |
| 5 | Scaler Setting | 6↑ 5↑ = Pass Through | 6↑ 5↓ = 1080p@60Hz |
| 6 | 6↓ 5↑ = 3840×2160@60Hz | 6↓ 5↓ = User Define Default 4096x2160p@60Hz | |
| 7 | Reserve | ||
| 8 | HDCP Setting | Without HDCP | With HDCP |
※ Please adjust the DIP switch when power off then turn on to take effect.
Phantom Power Voltage Setting
Jumper No. | Phantom Voltage |
| JP5 Short | 48V |
| JP6 Short | 24V |
| JP7 Short | 18V (OEM Version) |
| JP5, JP6, JP7 All open | 12V |
Supported Format
| SDI Standard | |
| SMPTE 2082-10 Mode 1 | 12G-SDI |
| SMPTE 2081-10 Mode 2 | 6G-SDI |
| SMPTE 425-1 3GA & 3GB | 3G-SDI |
| SMPTE 425-1 3GB-DS | 3G-SDI |
| SMPTE 292 | 1.5G-SDI |
SDI Resolution and Frame Rate
SDI Resolution | SDI Frame Rate | SDI Sampling | SDI Audio |
| 4096×2160 | 60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p | 4:4:4/4:2:2 | 32-CH 48KHz 24-Bit |
| 3840×2160 | 60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p | ||
| 2048×1080 | 60p, 60i, 59.94p, 59.94i, 50p, 50i, 48p, 48i, 47.95p, 47.95i, 30p, 30psf, 29.97p, 29.97psf, 25p, 25psf, 24p, 24psf, 23.98p, 23.98psf | ||
| 1920×1080 | 60p, 60i, 59.94p, 59.94i, 50p, 50i,48p, 48i, 47.95p, 47.95i, 30p, 30psf, 29.97p, 29.97psf, 25p, 25psf, 24p, 24psf, 23.98p, 23.98psf | ||
| 1280×720 | 60p, 59.94p, 50p, 48p, 47.95p,30p, 29.97p, 25p, 24p, 23.98p |
HDMI Resolution and Frame Rate
HDMI Resolution | HDMI Frame Rate | HDMI Sampling | HDMI Audio |
| 4096×2160 | 60p, 59.94p, 50p, 48p, 47.95p,30p, 29.97p, 25p, 24p, 23.98p | 4:4:4/4:2:2 | 8-CH 48KHz 24-Bit |
| 3840×2160 | 60p, 59.94p, 50p, 48p, 47.95p,30p, 29.97p, 25p, 24p, 23.98p | ||
| 2048×1080 | 60p, 60i, 59.94p, 59.94i, 50p, 50i,48p, 48i, 47.95p, 47.95i, 30p,29.97p, 25p, 24p, 23.98p | ||
| 1920×1080 | 60p, 60i, 59.94p, 59.94i, 50p, 50i,48p, 48i, 47.95p, 47.95i, 30p,29.97p, 25p, 24p, 23.98p | ||
| 1280×720 | 60p, 59.94p, 50p, 48p, 47.95p,30p, 29.97p, 25p, 24p, 23.98p |
Scaler Resolution and Frame Rate
| HDMI Resolutions | HDMI Frame Rates |
| 4096×2160 | 60, 50Hz |
| 3840×2160 | 60, 50Hz |
| 1920×1080 | 60, 50Hz |
| 1280×720 | 60, 50Hz |
| 720x576p | 50Hz |
| 640x480p | 60Hz |
The scaler doesn’t process the format of interlace and progressive segmented frame, it will directly pass-through original format from the input source.
Trouble Shooting
- We strongly recommend using high quality 75Ω coaxial cables, bad quality of cable may affect the connection stability and transmission distance.
- SD-SDI (480i & 576i) in the SMPTE 292 standard 270M is not supported.
- Any change of HDCP settings must reboot to take effect.
Specification
| ITEM NO. | SDI01A-12G |
| Support | |
| Compliance | SMPTE 2082-10 Mode 1 (12G-SDI) SMPTE 2081-10 Mode 2 (6G-SDI) SMPTE 425-1 3GA & 3GB (3G-SDI) SMPTE 425-1 3GB-DS (3G-SDI) SMPTE 292 (1.5G-SDI) HDMI 2.0 HDCP 2.2 |
| Max. Video Resolution | 12G-SDI, 4096×2160@60Hz HDMI |
| Transmission Distance | 10KM over Single Mode Fiber Optic Cable, 100M over Coaxial Cable |
| Ports & Interfaces | |
| Video Input | 1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
| Video Output | 1 x HDMI Type A |
| Video Loop-out | 1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
| Audio Interface | 2 x XLR Male Jack 2 x XLR Female Combo 6.4 Jack 2 x 10KΩ RCA |
| Power Interface | 1 x (5.5 x 2.1mm) DC Jack |
| Firmware Update | 1 x Micro USB |
| Power | |
| Power Supply | DC 12V Regulated |
| Power Consumption | 1.0A (Typical), 1.2A (Maximum) |
| Ambient Temperature | |
| Operation | 0 to 50℃ |
| Storage | -20 to 85℃ |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 253 x 162.5 x 40mm |
| Weight | 1030g |
