Baudcom HDMI to SDI Converter
SHANGHAI BAUDCOM COMMUNICATION DEVICE CO.,LTD
Website: http://www.baudcom.com.cn
Email: [email protected]
Tel: +86 21 37709251
- In order to avoid fire electricity shock or product damage, please keep the product away from rain, drip or any other liquid.
- Keep ventilation. Don’t put the product in any enclosed cabinet during it is working, (otherwise product damage or fire may be caused by high temperature.
- Keep the product away from the electrostatic, strong magnetic or radiation operational environment.
- Please keep the user manual for future reference.
Safety Notes
This HDMI to SDI converter allows you to seamlessly convert an HDMI or DVI signal to a broadcast quality SD-SDI/HD-SDI/3G-SDI signal. It is not only widely applied to post-production and broadcast applications, such as: broadcast room and non-linear editing, but also to the field of optical transmission with HDMI ports on the equipment.

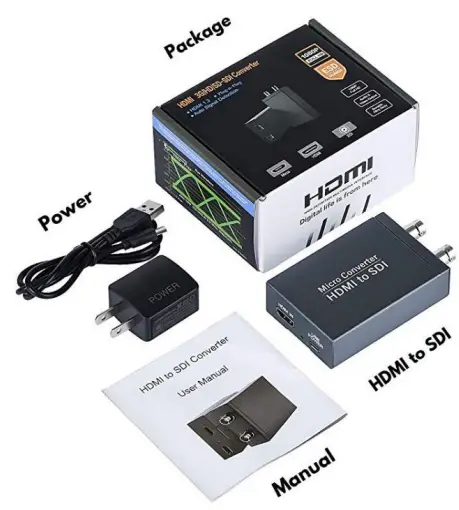

Box Content

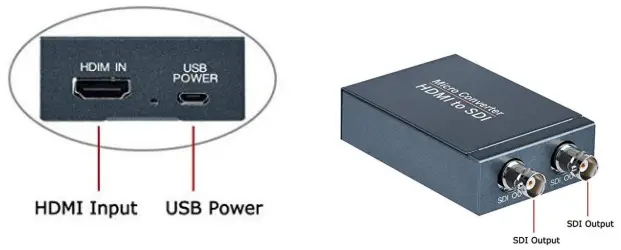

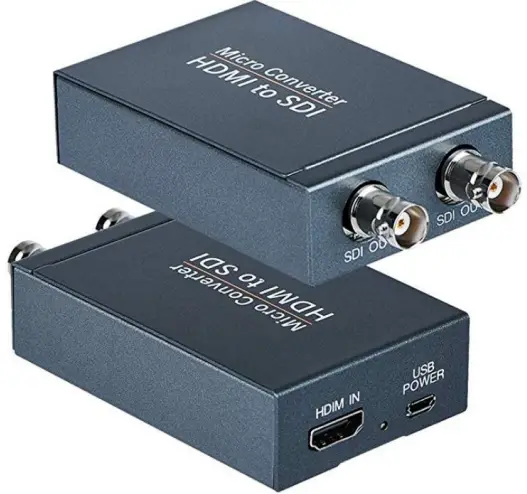

Operation controls and function
USB Power DC 5V/1A
After device connected, please operate as the following:
- Choose the HDMI input source devices output channel as HDMI.
- Power on the converter, the LED will be red.

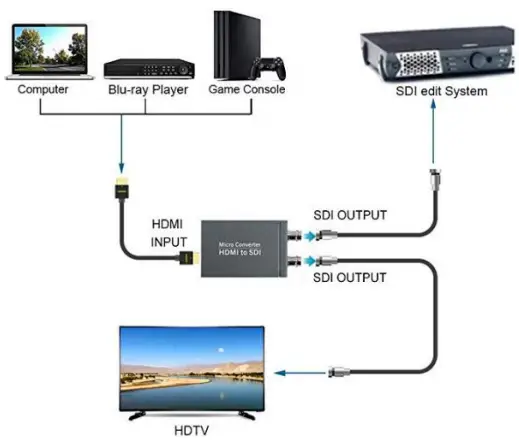

- If the input source HDMI resolution is compliant to the resolution SDI display supported, SDI signal can be output via SDI port and it can be split into two SDI signal to connect two different SDI display simultaneously.
Technical Parameter
| Power Adapter | USB 5V/1A |
| HDMI Input resolutions | 720x480I@60Hz,720x480P@60Hz,720x576I@60Hz,720×5 76P@60Hz 800x600P@60Hz,1024x768P@60Hz,1280x1024P@60Hz, 1280x720P@50Hz 1280x720P@60Hz,1280x800P@60Hz,1280x960P@60Hz, 1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60H z,1680x1050P@60Hz 1920x1080I@50Hz,1920x1080I@60Hz,1920x1080P@24H z,1920x1080P@25Hz 1920x1080P@30Hz,1920x1080P@50Hz,1920x1080P@64 Hz |
| SDI Out
resolutions | 720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz |
| SDI format | SD-SDI/HD-SDI/3G-SDI |
| Impedance | 75Ω |
| Power | <600mA(DC 5V） |
| Dimension | 83x55x24(mm) |
| Weight | 163g |
FAQ
- No signal output after connecting as required.
Answer- Check if the HDMI input signal whether it is correspond to this HDMI to SDI converter.
- check whether the HDMI output device is working fine.
- check whether the HDMI cable and SDI cable is connect tight, and power up this HDMI to SDI Converter by power adapter.
