TaiHuai 1HDMI-AV HDMI to RCA Converter
SPECIFICATIONS
- Brand: TaiHuai
- Package Dimensions 6.65 x 3.66 x 0.71 inches
- Item Weight 2.92 ounces
- Item model number 1HDMI-AV
- Input ports: HDMI (Does not Support 3D and 4K)
- Output ports: RCA
- Power port: Micro USB
- Input HDMI Standard: from 480i to 1080P
- Output RCA Standard: NTSC/PAL two common formats
- Compatible: TV Stick, Roku, Blu-Ray, DVD player, Android TV Box, PC, and more
- Compatible Devices Roku, Apple TV, old tv, etc.
- Specific Uses For Product TV Stick, Roku, Blu-Ray, VHS, DVD, Xbox, Apple TV, PC, HD camera or other HD devices and more.
- Connector Type HDMI input to RCA output
- Connector Gender Output ports: RCA, Input ports: HDMI (Not Support 3D and 4K)
- Color Black

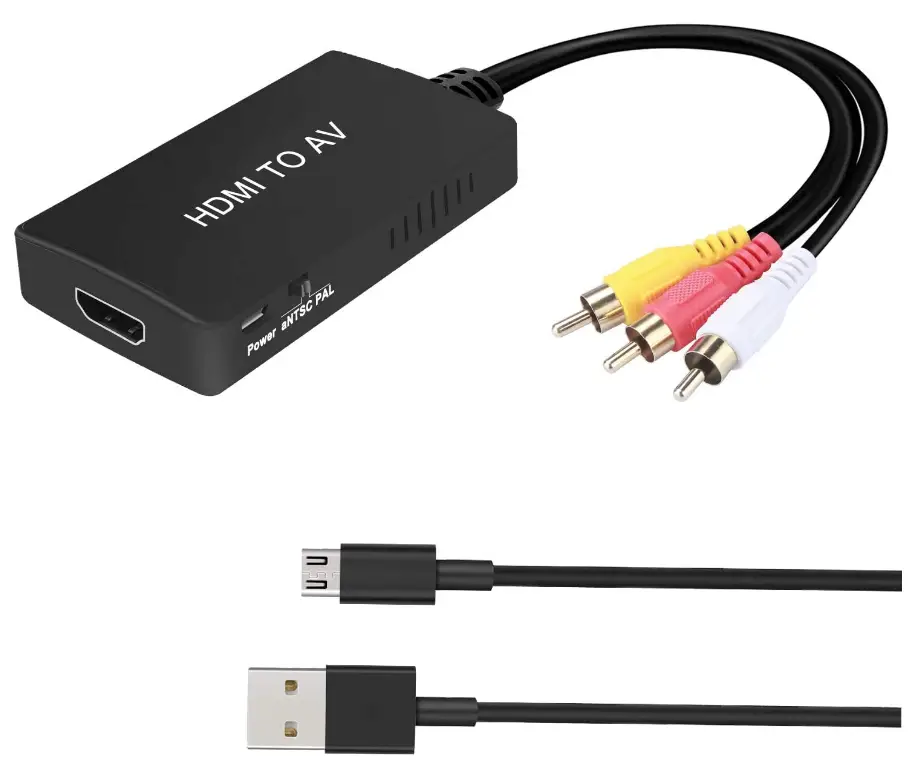

WHAT’S IN THE BOX
- HDMI to RCA Converter
- User Manual
DESCRIPTION
TaiHuai 1HDMI-AV HDMI to RCA Converter is a device designed to convert HDMI signals to analog RCA (Composite) signals. It allows you to connect modern HDMI devices, such as gaming consoles, Blu-ray players, or streaming devices, to older televisions or display systems that only support RCA inputs.
The converter typically consists of a compact box-shaped unit with input and output ports. It features an HDMI input port that allows you to connect your HDMI source devices, such as a DVD player or a laptop, using a standard HDMI cable. The output ports are usually composite RCA ports, including the yellow video connector for video signals and the red and white connectors for audio signals.
The TaiHuai 1HDMI-AV HDMI to RCA Converter is designed to support standard definition (480i/576i) video resolutions. It converts the digital HDMI signals to analog signals compatible with older TVs, which usually accept composite video (480i) or S-video (480i/576i) inputs.
The converter is typically powered through a USB port or an included power adapter. It may also include additional features like upscaling the video signal or adjusting the aspect ratio to fit the display.
Overall, the TaiHuai 1HDMI-AV HDMI to RCA Converter serves as a bridge between HDMI devices and older television sets or display systems that lack HDMI inputs. It allows you to enjoy your HDMI-enabled devices on older equipment that relies on RCA connectivity.
FEATURES
- RCA to HDMI Converter:
Available for TV, VHS VCR, DVD recorders, etc., this converts an HDMI video signal to a standard CVBS signal. - With a switching mechanism, the HDMI to AV Converter supports two output formats—PAL and NTSC, typically PAL for international use and NTSC for America. Note: Please change the RCA format from NTSC to PAL or PAL to NTSC by the N/P switch if your TV only displays black-and-white content.
- Use of essay:
Plug and play, portable, and adaptable without any drivers. When using, please connect the USB power cord (included) to a 5V power source (not included). - 1.3 HDMI Input:
Support for HDMI input ranges from 480i to 1080P; 3D and 4K are not supported. A TV Stick (such as Fire Stick), can function properly. However, the iPad series and mobile phones are not supported. - Compatible:
AV to HDMI Converter The TV Stick, Roku, Blu-ray player, DVD player, Android TV Box, PC, and other devices are compatible. Then, attach the RCA end to any display that accepts RCA inputs, including a monitor, an antique TV, a projector, and more.
Note:
Products with electrical plugs are made with American consumers in mind. Because outlets and voltage vary from country to country, this device might need an adapter or converter to be used where you are traveling. Before buying, kindly verify compatibility.

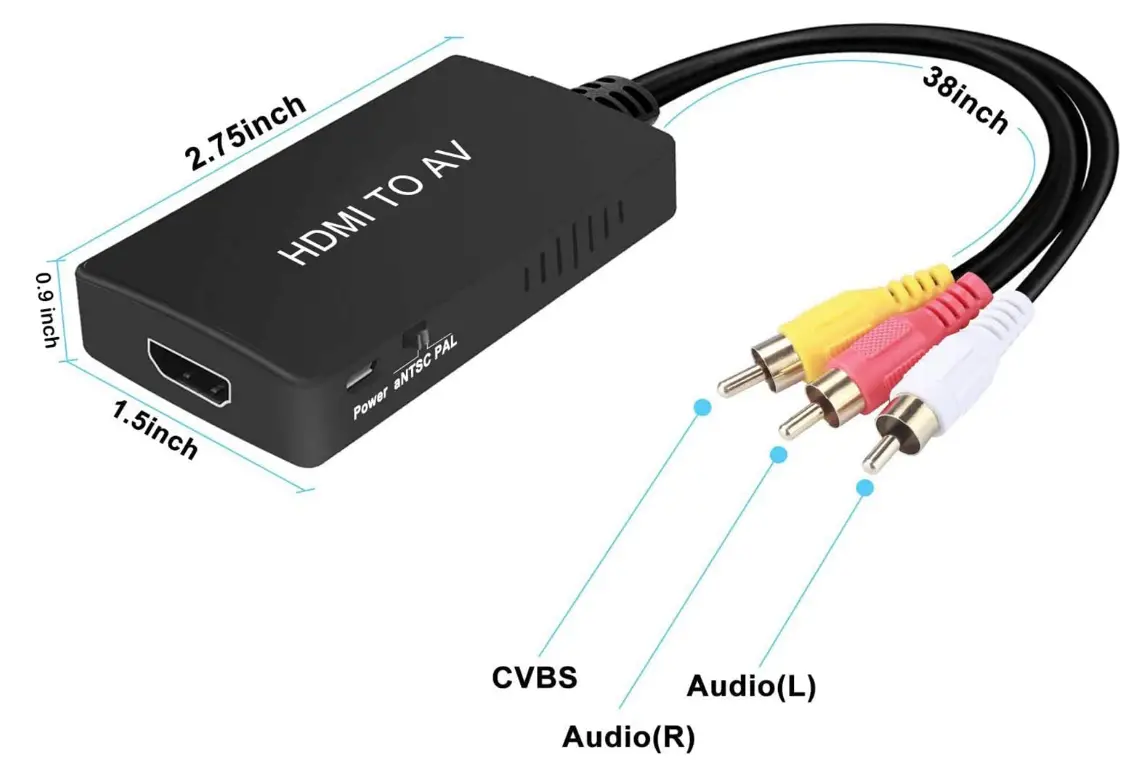

DIMENSIONS
FREQUENTLY ASKED QUESTIONS
The TaiHuai 1HDMI-AV HDMI to RCA Converter is a device designed to convert HDMI signals to analog RCA (Composite) signals, allowing you to connect modern HDMI devices to older televisions or display systems that only support RCA inputs.
The input port is HDMI, and the output ports are RCA.
The power source is a Micro USB port, which can be connected to a USB power adapter or any other 5V power source.
The TaiHuai 1HDMI-AV HDMI to RCA Converter is compatible with TV Stick, Roku, Blu-Ray, DVD player, Android TV Box, PC, and more.
The TaiHuai 1HDMI-AV HDMI to RCA Converter supports standard definition (480i/576i) video resolutions.
No, the TaiHuai 1HDMI-AV HDMI to RCA Converter does not support 3D and 4K.
The TaiHuai 1HDMI-AV HDMI to RCA Converter has a switching mechanism that supports both PAL and NTSC output formats. You can switch between the two formats by using the N/P switch.
Yes, the TaiHuai 1HDMI-AV HDMI to RCA Converter is plug-and-play and does not require any drivers. Simply connect the USB power cord (included) to a 5V power source and connect your devices.
The TaiHuai 1HDMI-AV HDMI to RCA Converter does not support the iPad series and mobile phones.
Before buying, kindly verify compatibility. You may need an adapter or converter to use the device in a different country.
The TaiHuai 1HDMI-AV HDMI to RCA Converter is designed to convert HDMI signals from modern devices to analog RCA signals, allowing you to connect HDMI devices to older TVs or display systems that only have RCA inputs.

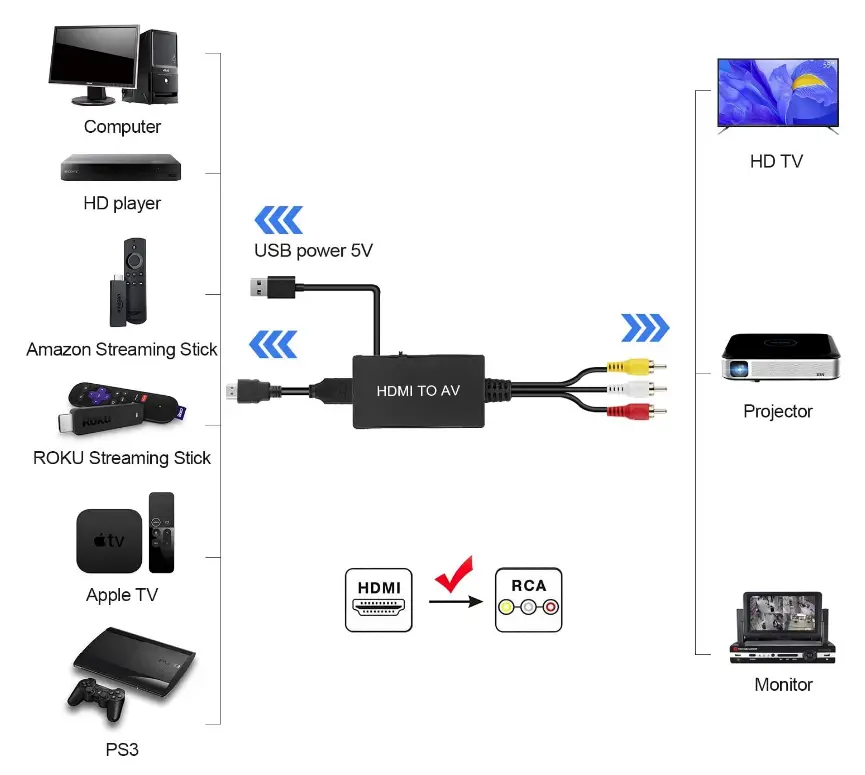

You can connect various HDMI devices, such as gaming consoles, Blu-ray players, DVD players, streaming devices, or laptops, to the converter. This allows you to use these HDMI devices with older TVs that have RCA input ports.
The converter typically supports standard-definition video resolutions, such as 480i (NTSC) and 576i (PAL). It is not designed to handle high-definition (HD) or ultra-high-definition (UHD) resolutions.

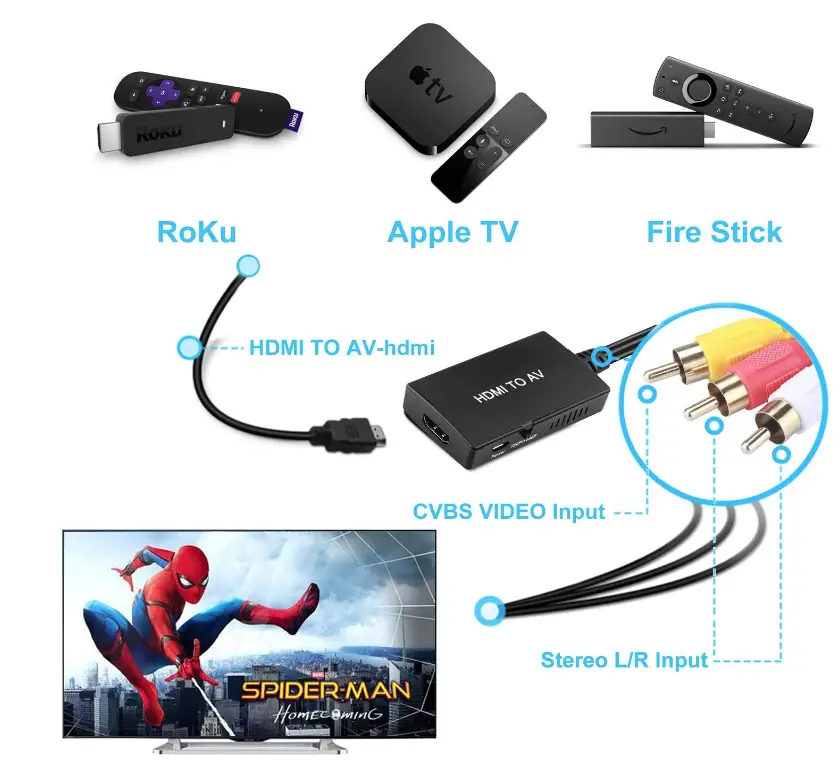

You need to connect the HDMI output of your source device (e.g., gaming console) to the HDMI input port of the converter using a standard HDMI cable. Then, you can connect the RCA (Composite) cables from the converter’s output ports to the RCA input ports on your TV or display system.
Yes, the converter usually requires external power to operate. It may come with a USB cable that can be plugged into a USB port on your source device or an included power adapter that needs to be connected to a power outlet.
