LUMANTEK ez-HSV+ HDMI to SDI Converter with Display and Scaler
Introduction

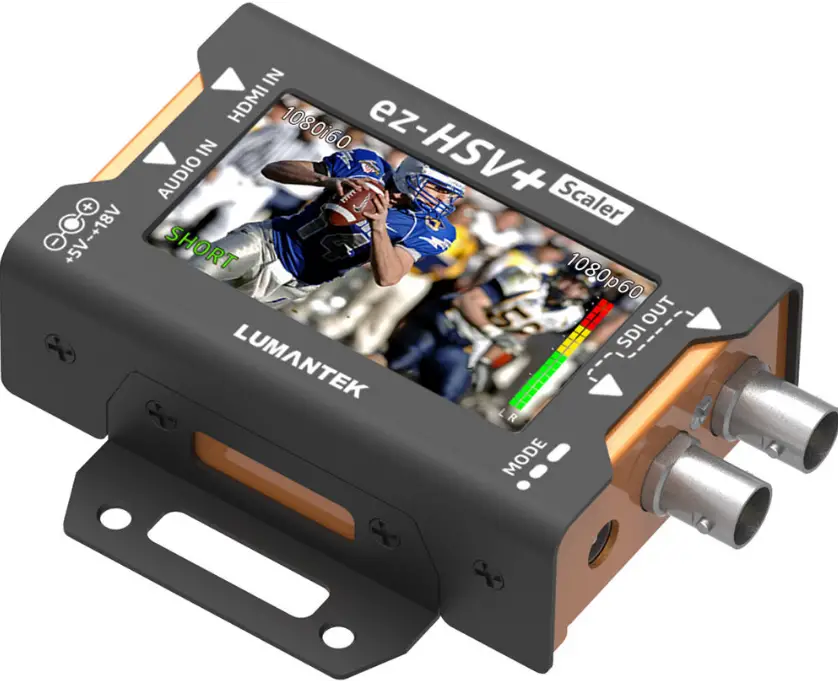

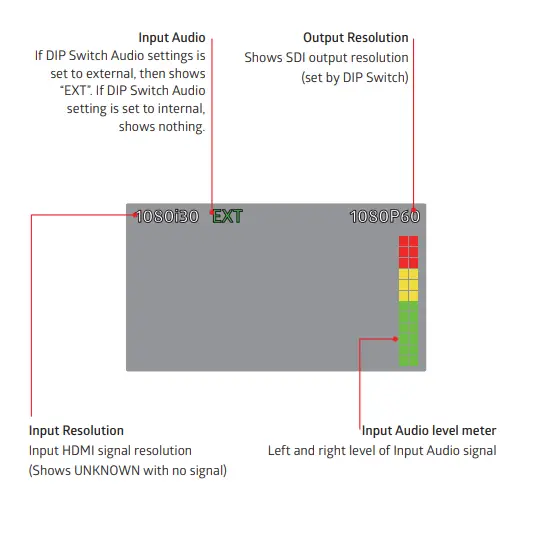

Ez-HSV+(HDMI to SDI Converter with Display and Scaler) ez-HSV+ is an HDMI to SDI with Scaler Converter with 1 x HDMI input and 2 x SDI outputs. It receives External Analog Audio (Stereo) input which can be embedded into the video. Ez-HSV+ is a mini converter that can display incoming video through 2.7inch TFT-LCD. The display shows input audio level meter and input & output resolutions. Resolution can be up or down scaled (from 480i to 1080p60) with a DIP switch.

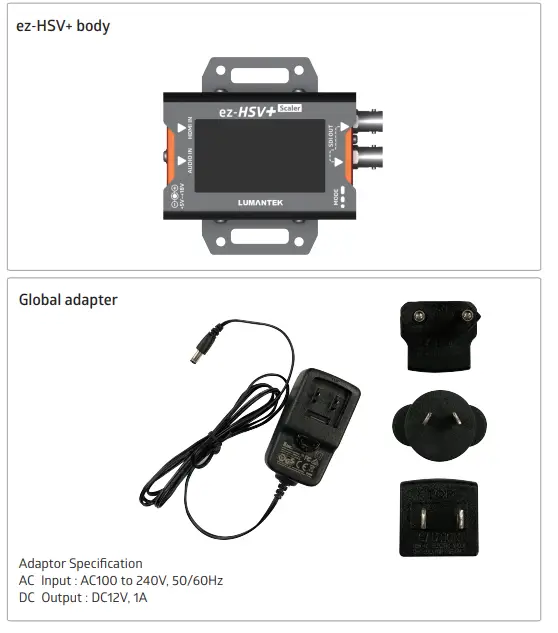

Features
- Supports SD/HD/3G
- HDMI Video In: : SD/HD/3G (HDMI Type A) x1
- SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x2
- Audio IN: Analog audio (3.5mm Stereo Jack) x1
- LCD Display :2.7inch TFT-LCD x1
- MODE : Push Switch x1
Block Diagram

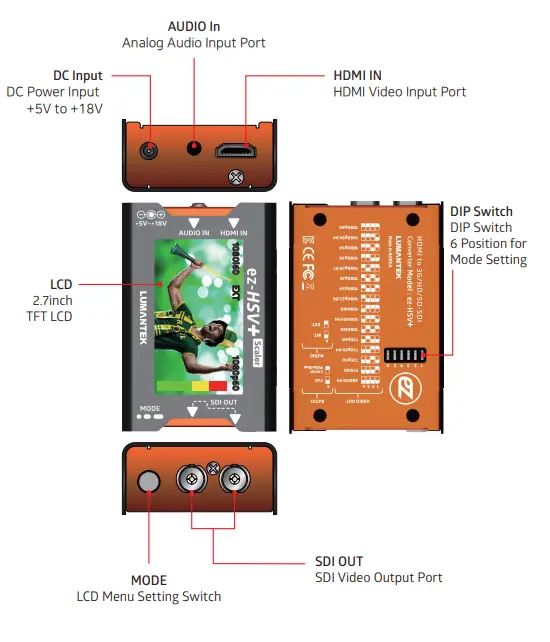

Product Interface

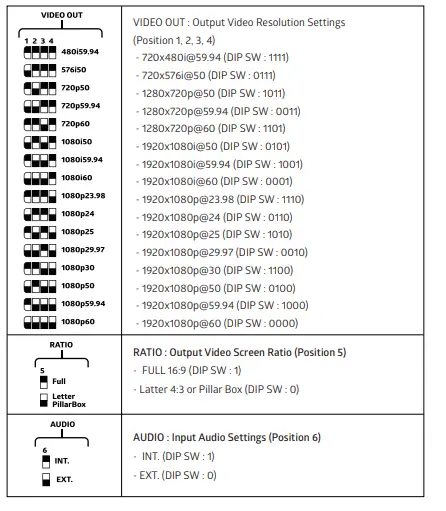

DIP Switch setting
MODE Switch Settings

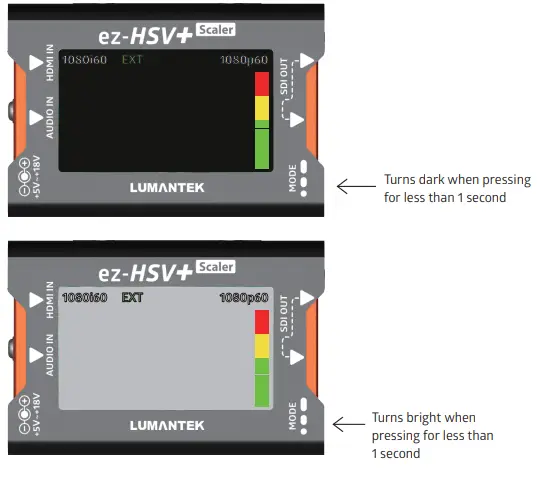

- LCD Backlight brightness control (Dark or Bright)

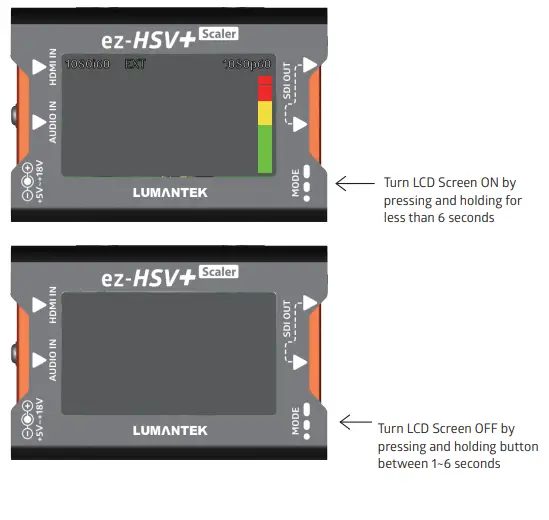

MODE Switch Settings - LCD Screen ON/OFF

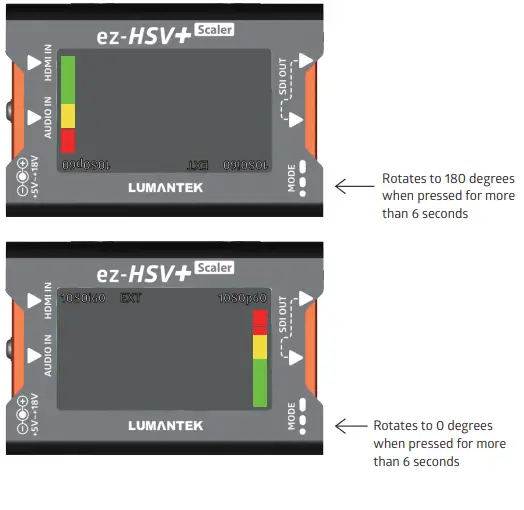

MODE Switch Settings - LCD Screen rotation (0 or 180 degrees)
