S-4600 SDI to HDMI converter
USER MANUAL
SWIT Electronics Co., Ltd.
Characteristics
- Portable 3G/HD/SD-SDI to HDMI converter
- 1 SDI input, 1 SDI loop-through output, 1 HDMI output,
- Embed SDI audio to HDMI output
- SDI embedded audio output (3.5mm socket)

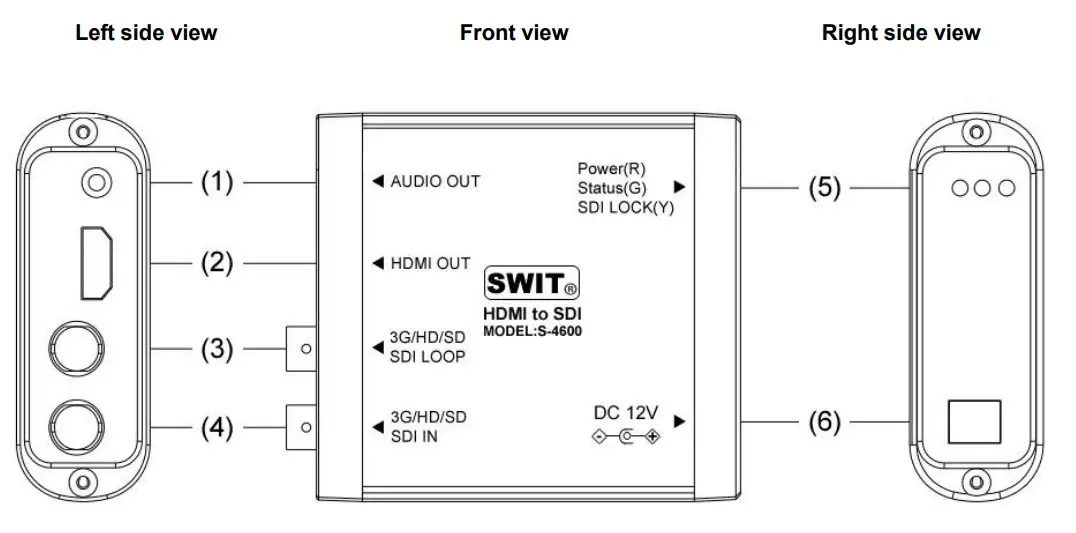

Product View
- AUDIO OUT: Analog audio output (3.5mm)
- HDMI OUT: HDMI output
- SDI LOOP: 3G/HD/SD-SDI loop through output (BNC)
- SDI IN: 3G/HD/SD-SDI input (BNC)
- LED status indicator
- DC 12V: 5.5mm pole DC input

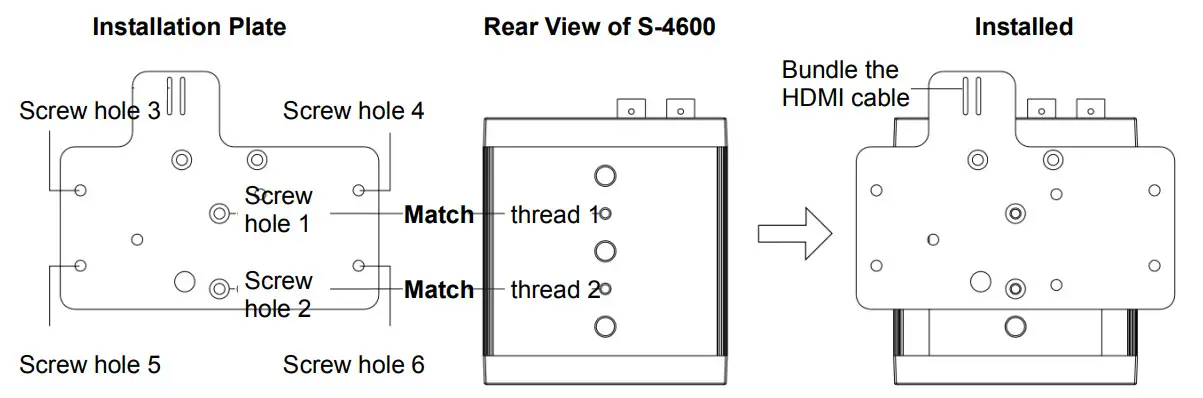

Installation Plate
Match the screw holes 1 &2 with the threads 1 &2 of S-4600, and fix the installation plate to the 5-4600 by the supplied screws. HDMI cable can be bundled onto the installation plate. The screw holes 3, 4, 5, 6 are used to install S-4600 to wall or racks.
Indicators and Switchers
- Power (Red): Power indicator
- Status (Green): Status indicator, lights on when there’s HDMI output and connected to HDMI input devices in well condition.
- SDI LOCK (Yellow): SDI indicator, lights on when there’s SDI input recognized.
Specifications
| Input | 3G/HD/SD-SDIx1 | ||
| Output | 3G/HD/SD-SDIx1, HDMIx1, Analog audio (3.5mm)x1 | ||
| Video Format | HDMI | 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) / 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| SDI | SMPTE-425M | 1080p (60 / 59.94 / 50) | |
| SMPTE-274M | 1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
| 1080i (60 / 59.94 / 50) | |||
| SMPTE-296M | 720p (60 / 59.94 / 50) | ||
| ITU-R BT.656 | 576i (50) | ||
| SMPTE-125M | 480i (59.94) | ||
| Audio Format | 48KHz sync | ||
| Power | ≤3W | ||
| Working Voltage | DC 6-18V | ||
| Working Environment | Temperature: 0 C-+70 C, Humidity:10%-90% | ||
| Dimension | 98.5×84.15×29 mm | ||
| Net weight | 200g | ||
Maintenance
- Please do not disassemble the product by yourself.
- Keep the product away from rain or moisture.
- Please use the provided power adapter and if you use a third-party power adapter, please make sure the voltage range, supplied power, and polarity of power lead is fit.
