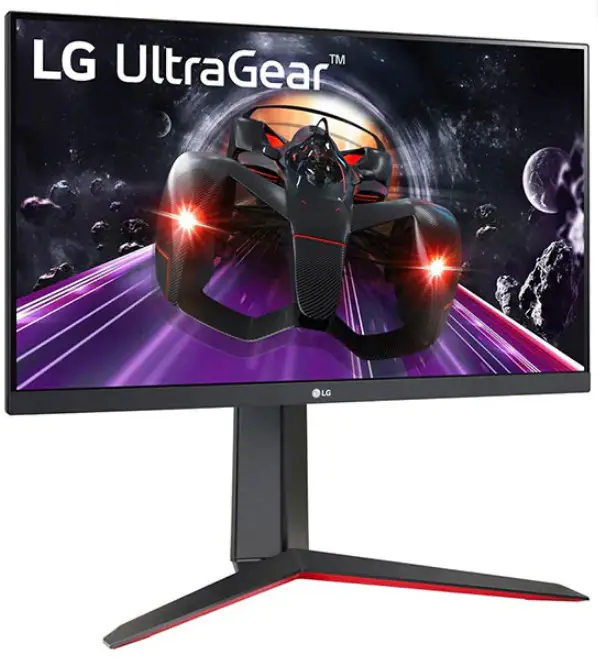

LG 24GN65R Gaming Monitor User Guide

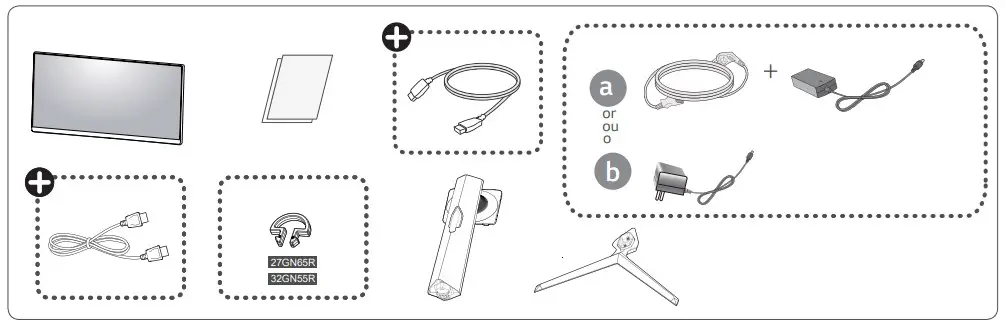

Whats In The Box
Depending on country
Please read this manual carefully before operating your set and retain it for future reference.
Printed in China
It is recommended that use the supplied components
www.lg.com
You can download manuals from the LGE website.

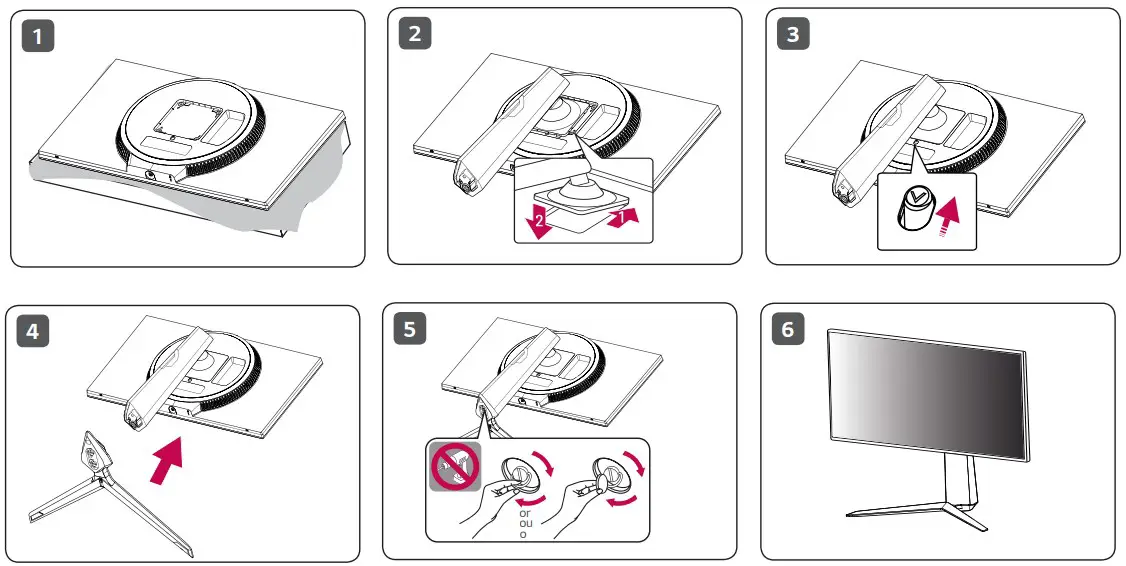

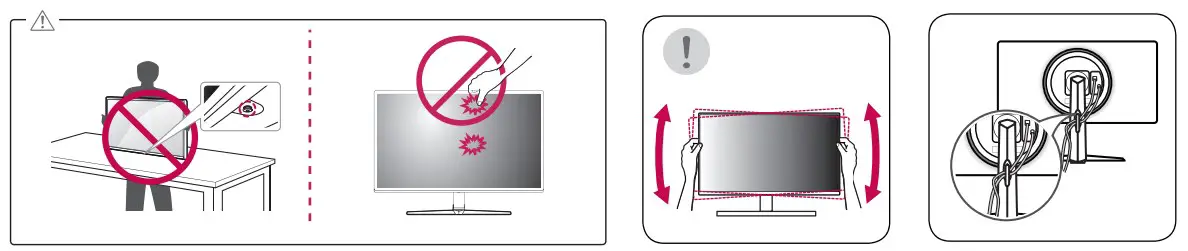

Assembly Instructions

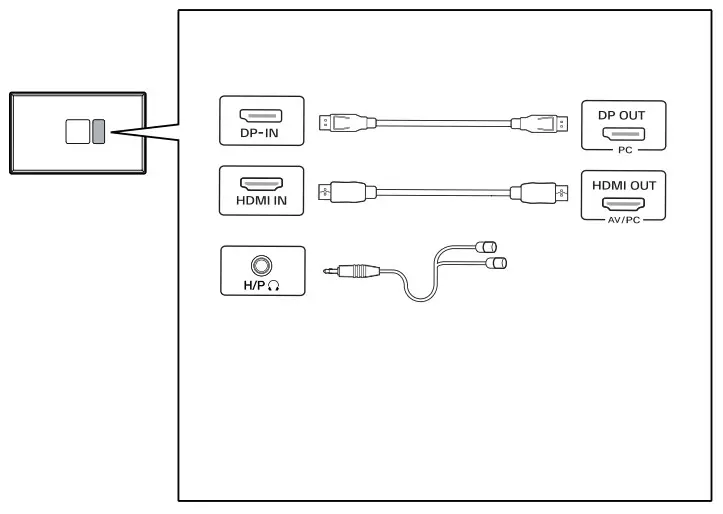

Pluging
- Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- Make sure to use the supplied cable. Otherwise, this may cause the device to malfunction.
Power On Off
Dimmensions
| English | Dimensions (Width x Height x Depth) | Weight | Recommend Resolution | ||||
| With Stand | Without Stand | With Stand | Without Stand | ||||
| 24GN65R | 540.8 x 551.1 x 291.2 (mm)21.2 x 21.6 x 11.4 (inches) | 540.8 x 323.8 x 42.8 (mm)21.2 x 12.7 x 1.6 (inches) | 5.6 kg (12.3 lbs) | 3.4 kg (7.4 lbs) | 1920 x 1080 @ 144 Hz | ||
| 27GN65R | 614.2 x 575.9 x 291.2 (mm)24.1 x 22.6 x 11.4 (inches) | 614.2 x 364.8 x 51.7 (mm)24.1 x 14.3 x 2.0 (inches) | 7.2 kg (15.8 lbs) | 5.1 kg (11.2 lbs) | |||
| 32GN55R | 714.7 x 600.3 x 292.1 (mm)28.1 x 23.6 x 11.5 (inches) | 714.7 x 428 x 50.9 (mm)28.1 x 16.8 x 2.0 (inches) | 7.2 kg (15.8 lbs) | 5.1 kg (11.2 lbs) | 1920 x 1080 @ 165 Hz | ||
| Français | Dimensions (largeur x hauteur x profondeur) | Poids | Résolution recommandée | ||||
| Socle inclus | Socle non inclus | Socle inclus | Socle non inclus | ||||
| 24GN65R | 540,8 x 551,1 x 291,2 (mm)21,2 x 21,6 x 11,4 (po) | 540,8 x 323,8 x 42,8 (mm)21,2 x 12,7 x 1,6 (po) | 5,6 kg (12,3 lb) | 3,4 kg (7,4 lb) | 1 920 x 1 080 @ 144 Hz | ||
| 27GN65R | 614,2 x 575,9 x 291,2 (mm)24,1 x 22,6 x 11,4 (po) | 614,2 x 364,8 x 51,7 (mm)24,1 x 14,3 x 2,0 (po) | 7,2 kg (15,8 lb) | 5,1 kg (11,2 lb) | |||
| 32GN55R | 714,7 x 600,3 x 292,1 (mm)28,1 x 23,6 x 11,5 (po) | 714,7 x 428 x 50,9 (mm)28,1 x 16,8 x 2,0 (po) | 7,2 kg (15,8 lb） | 5,1 kg (11,2 lb) | 1 920 x 1 080 @ 165 Hz | ||
| Español | Dimensiones (ancho x alto x profundo) | Peso | Resolución recomendada | ||||
| Pie incluido | Pie no incluido | Pie incluido | Pie no incluido | ||||
| 24GN65R | 540,8 x 551,1 x 291,2 (mm) | 540,8 x 323,8 x 42,8 (mm) | 5,6 kg | 3,4 kg | 1 920 x 1 080 @ 144 Hz | ||
| 27GN65R | 614,2 x 575,9 x 291,2 (mm) | 614,2 x 364,8 x 51,7 (mm) | 7,2 kg | 5,1 kg | |||
| 32GN55R | 714,7 x 600,3 x 292,1 (mm) | 714,7 x 428 x 50,9 (mm) | 7,2 kg | 5,1 kg | 1 920 x 1 080 @ 165 Hz | ||
| Potencia requerida | 24GN65R: 19 V 1,6 A 27GN65R/32GN55R: 19 V 2,0 A | ||||||
| Especi caciones de Adaptador de ca/cc | Salida | 24GN65R: 19 V 1,7 A 27GN65R/32GN55R: 19 V 2,1 A | |||||
| Entrada | 100-240 V ~ 50/60 Hz 1,0 A o 1,1 A o 1,2 A100-240 V ~ 50/60 Hz 1,1 A o 1,2 A | ||||||
