LG 24BQ55WY LED LCD Monitor

Product Information

Model Description: 24BQ55WY
Item Name Suffix: EU/EN/EK+CIS+Asia+China
Brand Name: LG
Part Number (Revision Number): MBM65461156 (2204-REV00)
Trim Size (Format): 210 mm x 148 mm (A5)
Printing Colors: 1 Color (Black)
Paper Type: Uncoated, wood-free paper 60 g/
Binding Type: Saddle stitching
Number of Pages: 12
Pagination Sheet:
ENG/FRE/SPA/POR/GER/CZE/POL/SCC/SLK/ITA/TUR/DAN/FIN/NOR/SWE+RUS/UKR/UZB/RUM+CHT/VIE/ARA+CHI (23)
Origin Notification: Changes the Country name. Printed in [Country Name]
Eco-Hazardous Substances: Contains Pb, Cd, Hg, Cr6+, PBB, PBDE
within LG standard level. Follow Eco-SCM management
standard[LG(56)-A-2524].

Product Usage Instructions

It is recommended to use the supplied components for proper functioning.
To download manuals, visit the LGE website.
For specific country variations, refer to the Origin Notification section.
Ensure that the device is connected to Wi-Fi and Bluetooth for additional features.

			Printing Speciﬁcation
1. Model Description
Item Name	: 24BQ55WY	Brand name	: LG	Part number	: MBM65461156
Sufﬁx	: EU/EN/EK +CIS+ Asia+ China	Product	: MNT	(Revision number)	(2204-REV00)

Printing Specification

1. Trim size (Format) (W X H)	:	210 mm x 148 mm (A5)
2. Printing colors
• Cover	:	1 Color (Black) Inside : 1 Color (Black)
3. Stock (Paper)
• Cover	:	Uncoated, wood-free paper 60 g/ ㎡ Inside : Uncoated, wood-free paper 60 g/	㎡
4. Bindery	:	Saddle stitching 5. Number of pages : 12
6. Language	:	ENG/FRE/SPA/POR/GER/CZE/POL/SCC/SLK/ITA/TUR/DAN/FIN/NOR/SWE+RUS/UKR/UZB/RUM+CHT/VIE/ARA+CHI (23)

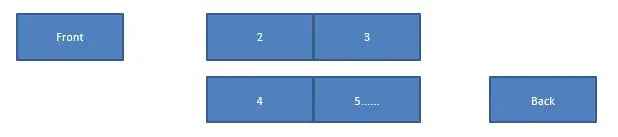

Pagination sheet

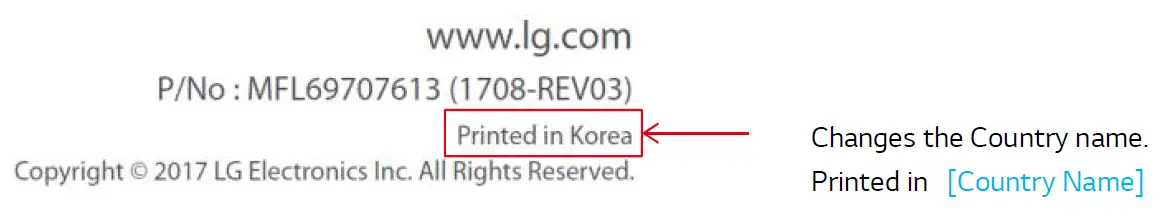

Origin Notification

Changes the Country name. Printed in [Country Name]

[Country Name]

LGERS/ LGEMX : Mexico LGEKR: Korea

LGEMA/LGEWR: Poland

LGEND/LGESY: China

Others: Each Country name.

N O T E

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524].

Especially, Part should be followed and controlled the following speciﬁcation.

Eco-hazardous substances test report should be submitted when Part certiﬁcation test and First Mass Production.
Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

Changes

REV07
REV06
REV05
REV04
REV03
REV02
REV01
REV00	2021-06-15	YUYE.REN	–	Checked :	Wenxiu.Chao
REV00	2021-06-15	YUYE.REN	–	Approved :	YE.MING
Rev. Number	YYYY-MM-DD	Signature	ECO Number	Change Contents

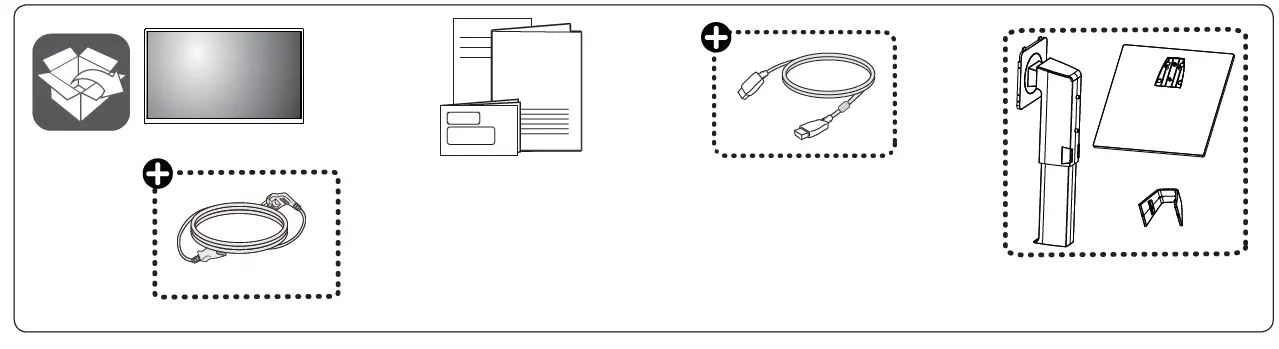

Depending on country

It is recommended that use the supplied components.

You can download manuals from the LGE website.

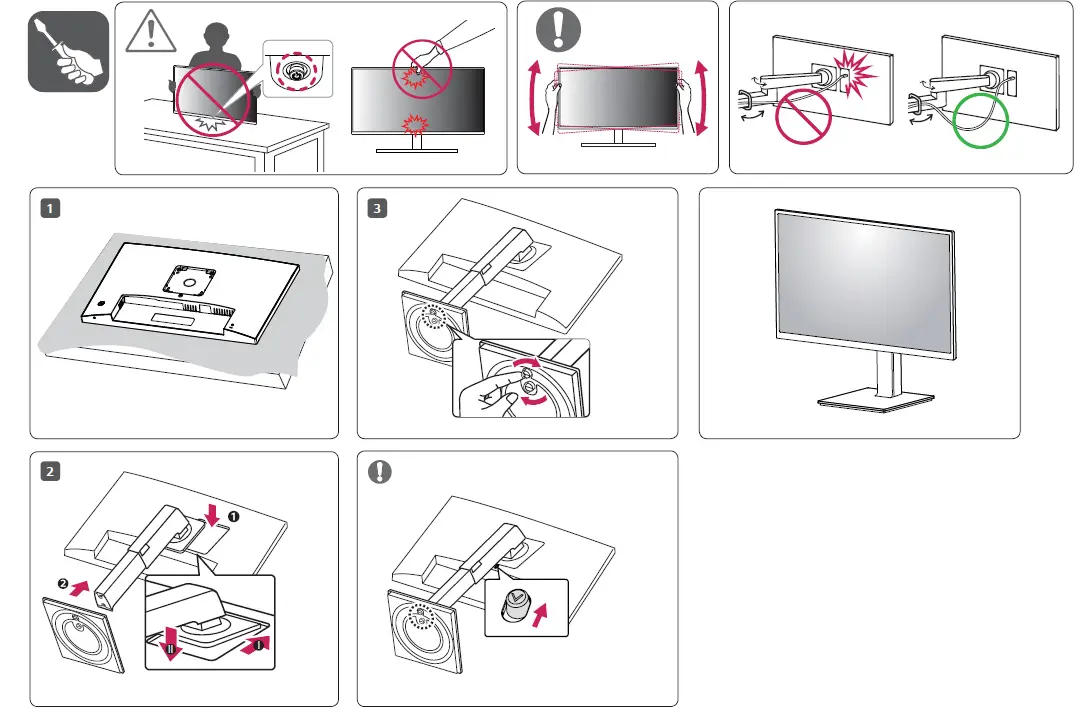

Assembly

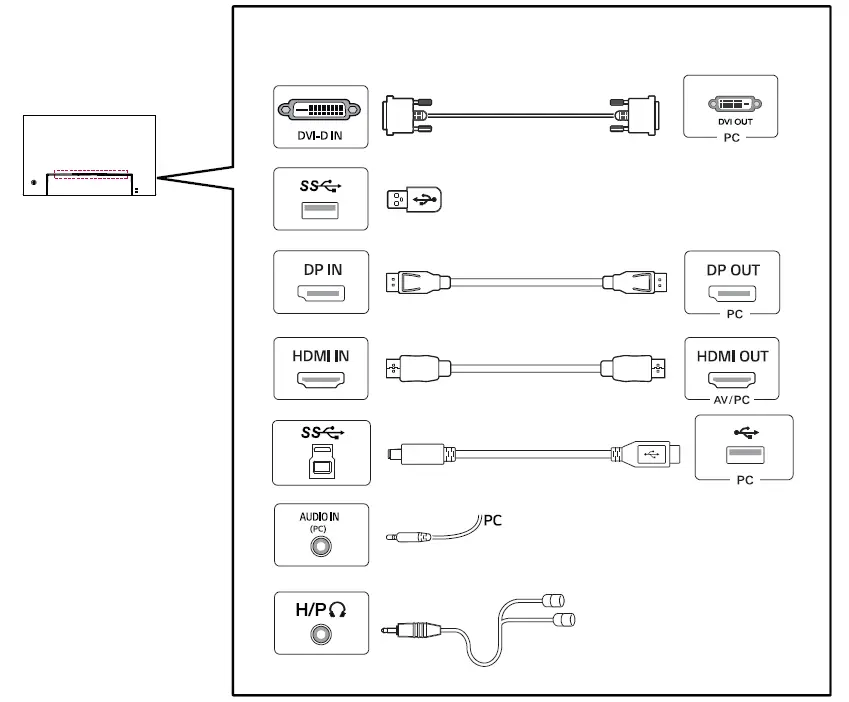

Wiring

Notes

Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
The USB port on the product functions as a USB hub.
Make sure to use the supplied cable. Otherwise, this may cause the device to malfunction.

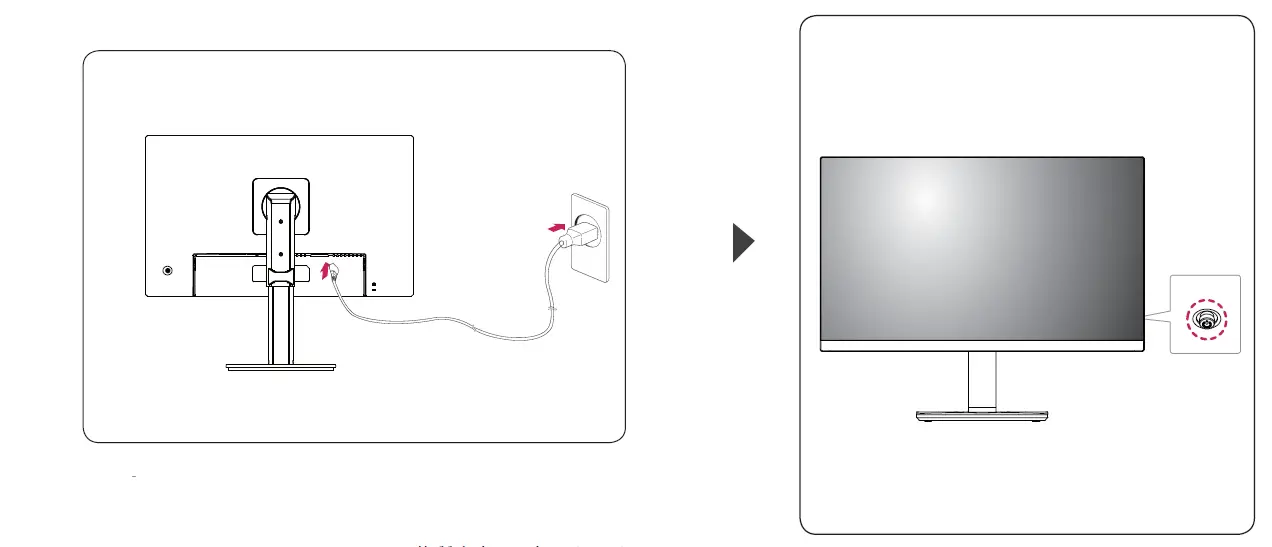

Power On/ Off
