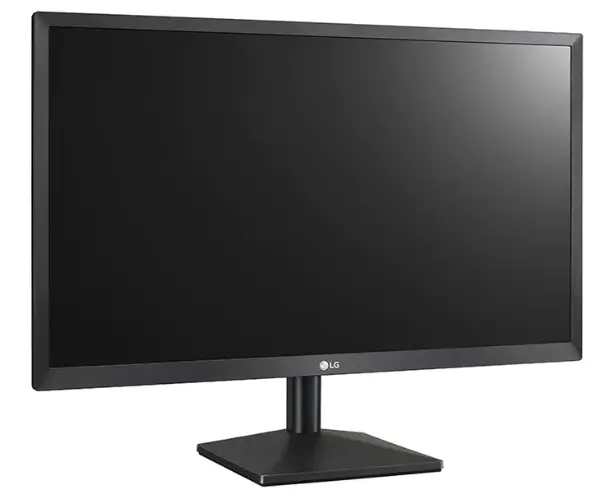

LG 22MN430H LED LCD Monitor
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
- It is recommended that use the supplied components.
- You can download manuals from the LGE website.
- Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- Make sure to use the supplied cable. Otherwise, this may cause the device to malfunction.
| English | Dimensions (Width x Height x Depth) | Weight | Recommend Resolution | ||||
| With Stand | Without Stand | With Stand | Without Stand | ||||
| 20MK4series | 463.8 x 366.5 x 181.9 (mm) 18.2 x 14.4 x 7.1 (inches) | 463.8 x 276.4 x 38.4 (mm) 18.2 x 10.8 x 1.5 (inches) | 2.3 kg (5.0 lbs) | 2.0 kg (4.4 lbs) | 1366×768@ 60Hz | ||
| 22MK4series 22MN430H | 509.6 x 395.8 x 181.9 (mm) 20.0 x 15.5 x 7.1 (inches) | 509.6 x 305.7 x 38.5 (mm) 20.0 x 12.0 x 1.5 (inches) | 2.8 kg (6.1 lbs) | 2.5 kg (5.5 lbs) | 1920×1080 @ 60Hz | ||
| 24MK4series | 555 x 421 x 181.9 (mm) 21.8 x 16.5 x 7.1 (inches) | 555 x 330.9 x 38.4 (mm) 21.8 x 13.0 x 1.5 (inches) | 3.3 kg (7.2 lbs) | 3.0 kg (6.6 lbs) | |||
| 27MK4series | 625.6 x 468.7 x 204.1 (mm) 24.6 x 18.4 x 8.0 (inches) | 625.6 x 375.2 x 44 (mm) 24.6 x 14.7 x 1.7 (inches) | 4.6 kg (10.1 lbs) | 4.2 kg (9.2 lbs) | |||
| Français | Dimensions (largeur x hauteur x profondeur) | Poids | Résolution recommandée | ||||
| Socle inclus | Socle non inclus | Socle inclus | Socle non inclus | ||||
| 20MK4 séries | 463,8 x 366,5 x 181,9 (mm) 18,2 x 14,4 x 7,1 (po) | 463,8 x 276,4 x 38,4 (mm) 18,2 x 10,8 x 1,5 (po) | 2,3 kg (5,0 lb) | 2,0 kg (4,4 lb) | 1366×768@ 60Hz | ||
| 22MK4 séries 22MN430H | 509,6 x 395,8 x 181,9 (mm) 20,0 x 15,5 x 7,1 (po) | 509,6 x 305,7 x 38,5 (mm) 20,0 x 12,0 x 1,5 (po) | 2,8 kg (6,1 lb) | 2,5 kg (5,5 lb) | 1920×1080 @ 60Hz | ||
| 24MK4 séries | 555 x 421 x 181,9 (mm) 21,8 x 16,5 x 7,1 (po) | 555 x 330,9 x 38,4 (mm) 21,8 x 13,0 x 1,5 (po) | 3,3 kg (7,2 lb) | 3,0 kg (6,6 lb) | |||
| 27MK4 séries | 625,6 x 468,7 x 204,1 (mm) 24,6 x 18,4 x 8,0 (po) | 625,6 x 375,2 x 44 (mm) 24,6 x 14,7 x 1,7 (po) | 4,6 kg (10,1 lb) | 4,2 kg (9,2 lb) | |||
|
Español | Dimensiones (ancho x alto x profundo) | Peso | Resolución recomendada | ||||
| Pie incluido | Pie no incluido | Pie incluido | Pie no incluido | ||||
| 20MK4 serie | 463,8 x 366,5 x 181,9 (mm) | 463,8 x 276,4 x 38,4 (mm) | 2,3 kg | 2,0 kg | 1366×768@ 60Hz | ||
| 22MK4 serie 22MN430H | 509,6 x 395,8 x 181,9 (mm) | 509,6 x 305,7 x 38,5 (mm) | 2,8 kg | 2,5 kg | 1920×1080 @ 60Hz | ||
| 24MK4 serie | 555 x 421 x 181,9 (mm) | 555 x 330,9 x 38,4 (mm) | 3,3 kg | 3,0 kg | |||
| 27MK4 serie | 625,6 x 468,7 x 204,1 (mm) | 625,6 x 375,2 x 44 (mm) | 4,6 kg | 4,2 kg | |||
| Potencia requerida | 22MK4 serie 19 V 0,8 A o 19 V 1,3 A | ||||||
| 20MK4 serie 19 V 0,8 A | 22MN430H/24MK4 serie/27MK4 serie 19 V 1,3 A | ||||||
| Especificaciones de Adaptador de ca/cc | Salida | 22MK4 serie 19 V 0,84 A o 19 V 1,3 A | |||||
| 20MK4 serie 19 V 0,84 A | 22MN430H/24MK4serie/ 27MK4 serie 19 V 1,3 A | ||||||
| Entrada | 100-240 V ~ 50/60 Hz 0,6 A 100-240 V ~ 50/60 Hz 1,0 A 100-240 V ~ 50/60 Hz 0,7 A 100-240 V ~ 50/60 Hz 1,1 A 100-240 V ~ 50/60 Hz 0,8 A 100-127 V ~ 50/60 Hz 1,1 A 100-127 V ~ 60 Hz 0,7 A | 100-240 V ~ 50/60 Hz 1,0 A 100-127 V ~ 60 Hz 0,7 A 100-240 V ~ 50/60 Hz 1,1 A 100-127 V ~ 50/60 Hz 1,1 A 100-240 V ~ 50/60 Hz 0,7 A | |||||
