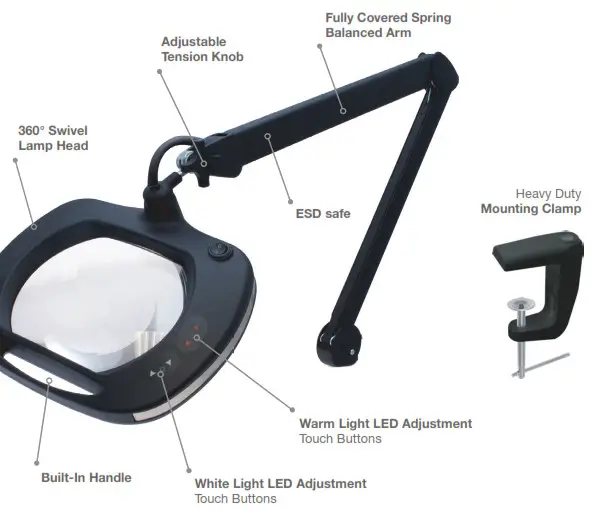

LE-WWE5D
PRODUCT INFORMATION
| Magnification | 2.25X (5-Diopter) |
| Lens Dimension Color | 7.5” x 6.2” |
| Color | Black |
| Lighting | 30 LEDs (3500K) 30 LEDs (6500K) |
| ESD safe | Yes |
ASSEMBLY
LE-WWE5D package includes the following items:
- LE-WWE5D unit
- Heavy Duty Mounting Clamp
- Power Supply
- LE-WWE5D manual
Mounting LE-WWE5D Magnifying Lamp
- Attach the mounting clamp to the side of your workbench and hand tighten
- Then insert the LE-WWE5D lamp into the hole of the mounting table clamp

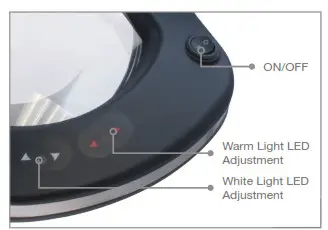

HOW TO USE
Using Your LE-WWE5D Magnifying Lamp
- Connect LE-WWE5D to a power outlet
- Turn the power ON/OFF by pressing the Power Switch
- Adjust the brightness of the white LEDs with the White LED Controls
- Adjust the brightness of the amber LEDs with the Amber LED Controls

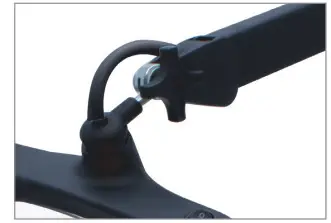

Adjusting Arm Position
- Loosen the Adjustable Tension Knob
- Set the desired position and lamp head angle, and re-tighten
