PO-55
MINIBRITE™
5X LED LIGHTED MAGNIFIER
Instructions for use:
Installing Batteries

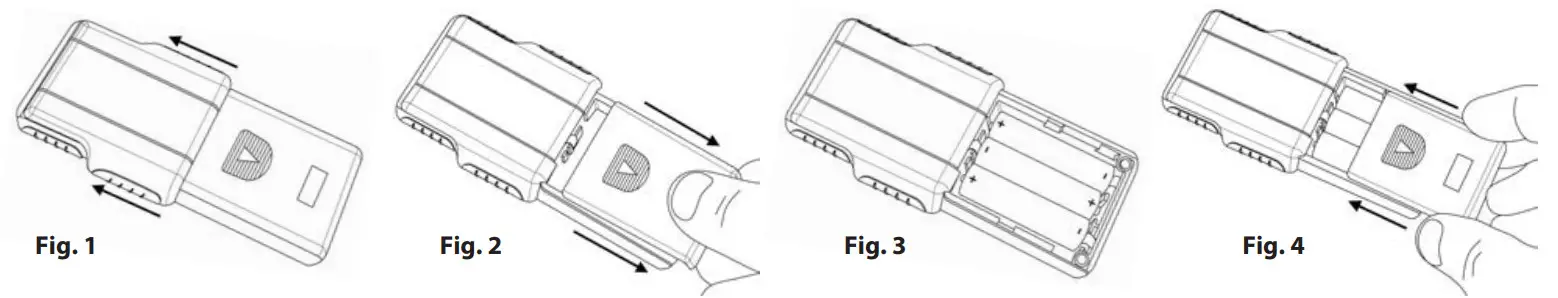

Slide up a protective sleeve to reveal the battery door (Fig. 1). Slide the battery door back and pull up to remove it (Fig. 2).
Insert three AAA batteries according to polarity indicators marked inside the battery compartment (Fig. 3).
Batteries must click into place. Replace the battery door (Fig. 4).
To Activate LED Light

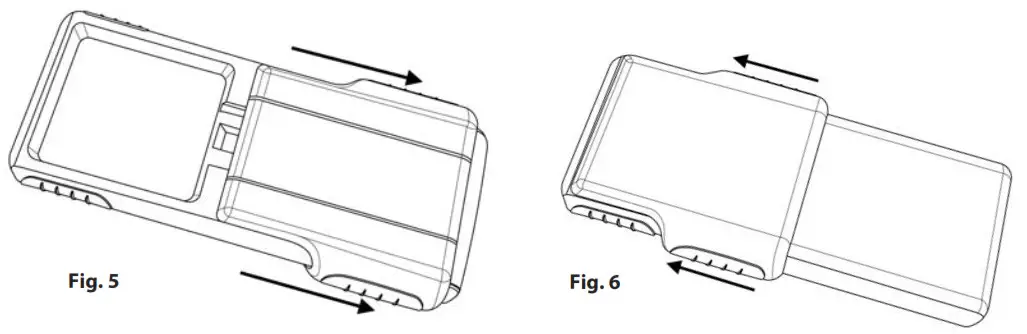

Slide down the protective sleeve until you hear a click. This will reveal the lens and activate LED light (Fig. 5). When not in use, slide the protective sleeve over the lens to turn off the light and protect the lens from damage during storage (Fig. 6).
Warning: Use only alkaline batteries. Mixing old and new, different brands or types within brands may cause batteries to leak, overheat or explode. Keep away from fire or excessive heat. Inspect batteries for corrosion or leakage. Insert in the direction indicated. Rechargeable batteries are not recommended.
Cleaning Your Magnifier
Clean lens with a soft, clean microfiber cloth by rubbing gently in a circular motion. Moisten the lens cloth with water if needed. Do not use harsh chemicals, solvents or abrasives as they may damage the lens.
Customer Service:
If you experience any difficulties, please contact us and we will be happy to help you.
| In the U.S.A. Phone: 1-631-963-5000 Email: [email protected] | In the U.K. Phone: +44 (0) 1938 557440 Email: [email protected] | In the E.U. Phone: +44 (0) 1938 557440 Email: [email protected] |
For warranty information, visit www.carson.com/warranty
PO-55 / © 2020
