Instructions for use:
Installing Batteries

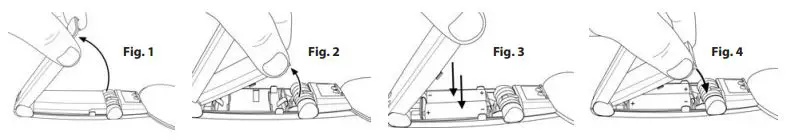

Pull open bottom portion of the handle to reveal battery door (Fig.Grab the battery door from both sides and pull open (Fig. . Insert 2 fresh AA batteries according to polarity indicators marked inside the battery compartment (Fig. Snap closed battery door when complete (Fig.
To Activate LED Light
Slide switch on top of magnifier handles up to turn on the LED light (Fig. 5). Turn the light off when not in use.
To Use Hands-Free

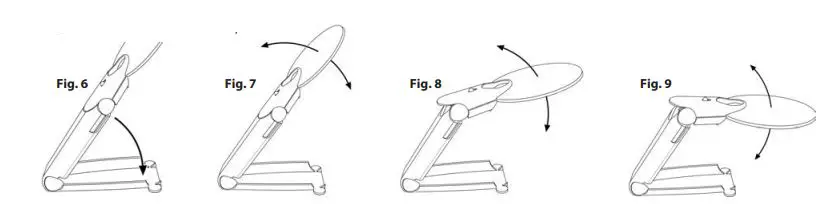

Extend base stand by grabbing tabs and pulling out the bottom portion of the handle (Fig. 6). Adjust magnifier head to desired viewing angle (Fig. 7-9).
Warning: Use only alkaline batteries. Mixing old and new, different brands or types within brands may cause batteries to leak, overheat or explode. Keep away from fire or excessive heat. Inspect batteries for corrosion or leakage. Insert in the direction indicated. Rechargeable batteries not recommended.
Cleaning Your Magnifier
Clean lens with a soft, clean microfiber cloth by rubbing gently in a circular motion. Moisten the lens cloth with water if needed. Do not use harsh chemicals, solvents or abrasives as they may damage the lens.
Customer Service:
If you experience any difficulties, please contact us and we will be happy to help you.
In the U.S.A. Phone: 1-631-963-5000 Email: [email protected]
In the U.K.Phone: +44 (0) 1938 557440 Email: [email protected]
In the E.U.Phone: +44 (0) 1938 557440 Email: [email protected]
