LIGHTED MAG RX™
3x LED LIGHTED MEDICINE BOTTLE MAGNIFIER
RX-75
Instructions for use:
Attaching Magnifier To Medicine Bottle

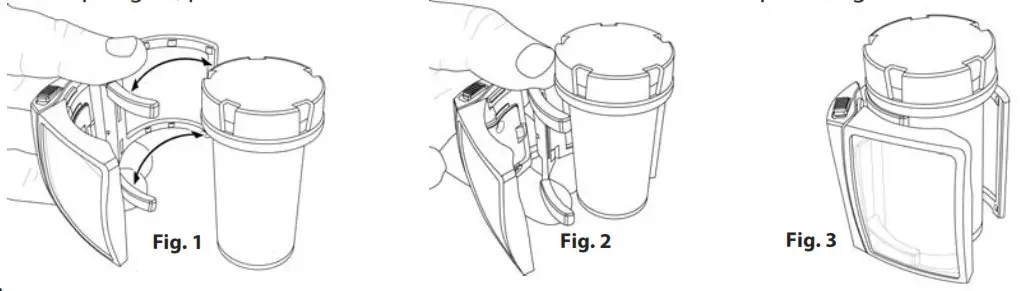

Pull open clamp (Fig. 1), place around medicine bottle (Fig. 2), and release in place (Fig. 3).
Using Your Magnifier

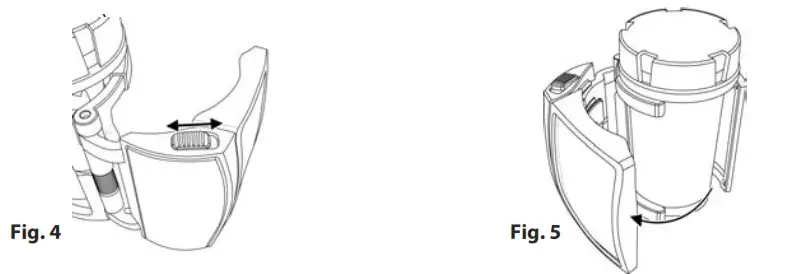

To turn light on, slide switch located on magnifier housing over (Fig. 4). Swing magnifier lens out as desired to magnify text on medicine bottle (Fig. 5). Turn light off when not in use.
Replacing Batteries

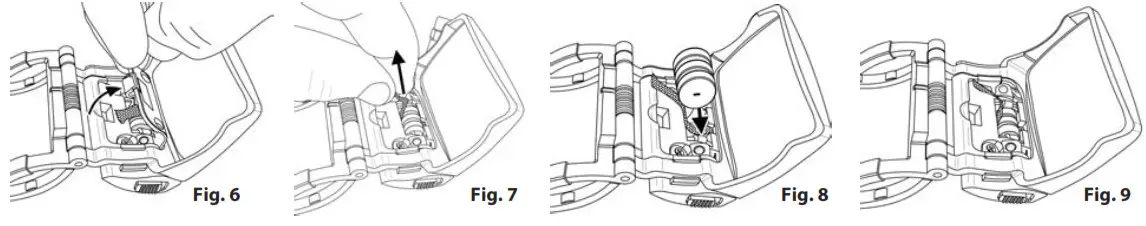

Replacing BatteriesLocate battery door on inside of magnifier housing. Pull back the battery door to remove (Fig. 6). Pull the ribbon to remove spent batteries (Fig. 7) and replace them with three fresh G3 button cell batteries according to polarity indicators marked on the bottom of the battery compartment (Fig 8). Make sure ribbon is placed under batteries for easy removal (Fig. 9). Replace the battery door when complete.
Warning: Use only alkaline batteries. Mixing old and new, different brands or types within brands may cause batteries to leak, overheat or explode. Keep away from fire or excessive heat. Inspect batteries for corrosion or leakage. Insert in the direction indicated. Rechargeable batteries are not recommended.
Cleaning Your Magnifier
Clean lenses with a soft, clean microfiber cloth by rubbing gently in a circular motion. Moisten the lens cloth with water if needed. Do not use harsh chemicals, solvents, or abrasives as they may damage the lens.
CAUTION – FIRE HAZARD:
Keep magnifier away from direct sunlight to prevent accidental fire.
Customer Service:
If you experience any difficulties, please contact us and we will be happy to help you.
| In the U.S.A. Phone: 1-631-963-5000 Email: [email protected] | In the U.K. Phone: +44 (0) 1938 557440 Email: [email protected] | In the E.U. Phone: +44 (0) 1938 557440 Email: [email protected] |
For warranty information, visit www.carson.com/warranty
