Installation guide
ELIMINATOR® Hermetic burn-out filter drier
Type DAS
DAS164VV ELIMINATOR Hermetic burn-out filter drier
| Refrigerants R134a, R404A, R407C, R507, R22, R410A and other refrigerants (HCFC, HFC, HFO, HC) | Temperature range M -40 – 70 °C-40 – 160 °F | Max. working pressure PS / MWP = 35 bar / 500 psig |
Mounting
Filter installation

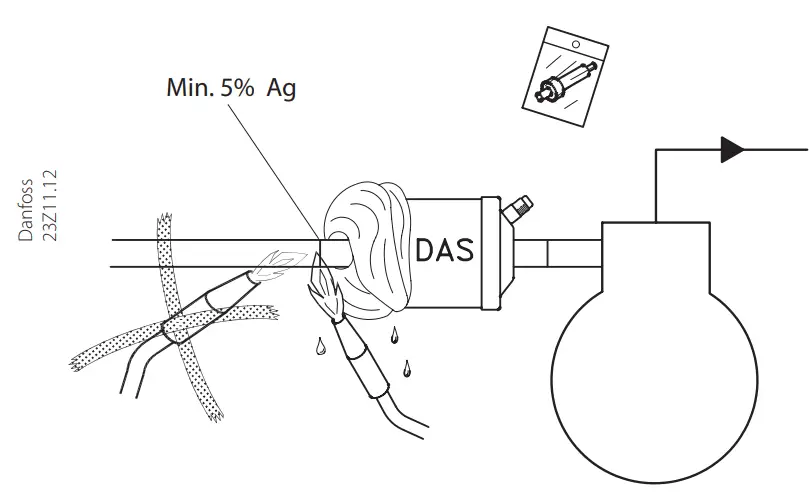

Install the burnout drier as close as possible to the compressor.
Schrader valve Installation
Initial pressure drop:
Record initial pressure drop and check again after 72 hours of operation. Replace drier if the pressure drop ([bar] / [psi]) across the core exceeds the following values.
| Refrigerant | Evaporator temperature | |||||||||
| -40 °C / -40 °F | -28.9 °C / -20 °F | -17.8 °C / 0 °F | -6.7 °C / 20 °F | 4.4 °C / 40 °F | ||||||
| [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | |
| R404A, R407C, R507, R22 | 0.04 | 0.50 | 0.07 | 1.00 | 0.10 | 1.5o | 0.15 | 2.00 | 0.20 | 3.00 |
| R134a | – | – | 0.04 | 0.50 | 0.07 | 1.00 | 0.10 | 1.50 | 0.15 | 2.00 |
| R410A | 0.07 | 1.00 | 0.10 | 1.50 | 0.15 | 2.00 | 0.20 | 3.00 | 0.07 | 1.00 |
