Danfoss R134a Eliminator Hermetic Burn-Out Filter Drier Type DAS
Installation guide
Refrigerants
R134a, R404A, R407C, R507, R22, R410A and other refrigerants
(HCFC, HFC, HFO, HC)
Temperature range
Max. working pressure
PS / MWP = 35 bar / 500 psigPS / MWP = 35 bar / 500 psig
Mounting

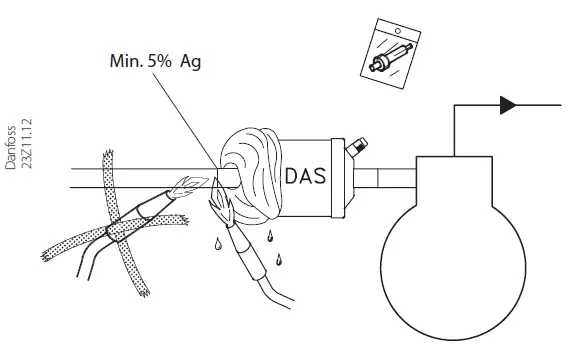

Filter installation
Install burnout drier as close as possible to the compressor.
Schrader valve Installation
Initial pressure drop:
Record initial pressure drop and check again after 72 hours of operation. Replace drier if the pressure drop ([bar] / [psi]) across the core exceeds the following values.
Any information, including, but not limited to information on selection of product, its application or use, product design, weight, dimensions, capacity or any other technical data in product manuals, catalogs descriptions, advertisements, etc. and whether made available in writing, orally, electronically, online or via download, shall De considered informative and is oniy Dinding it and to the extent, explicit reference is made in a quotation or order confirmation. Danfoss cannot accept any responsibility for possible errors in catalogs, brochures, videos, and other material.
Danfoss reserves the right to alter its products without notice. It also applies to products ordered but not delivered provided that such alterations can be made without changes to form, ht or All function trademarks or the in price this material are property of Danfoss A/S or Danfoss group companies. Danfoss and the Danfoss logo are trademarks of Danfoss A/S. All rights reserved.
