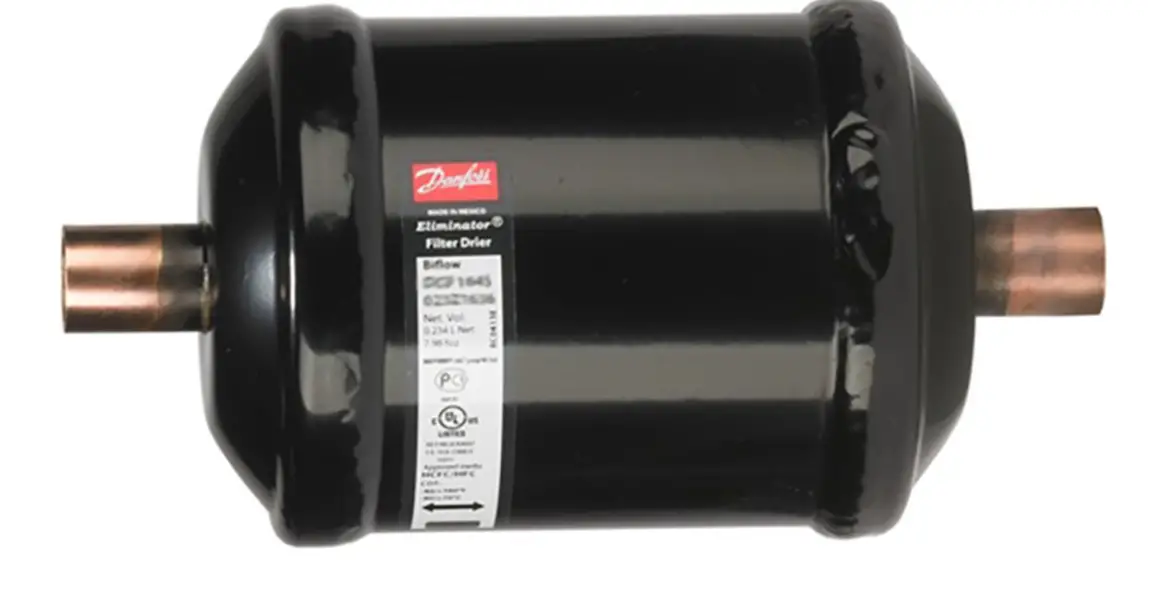

Danfoss DMB Eliminator Hermetic Bi Flow Filter Drier
Refrigerants:
A1: R134a, R404A, R407C, R507, R22, R410A. A2L: R32, R444B, R452B, R454B, R1234yf. A3: R290, R600a For other refrigerants, please contact Danfoss representative.
Only solder versions (cu-plated / pure copper) and connection sizes below 25mm are approved for A3 refrigerants. Only connection sizes below 25 mm are approved for A2L.
Temperature range:
- 40 70 °C
- 40 160 °F
Max. working pressure:
PS / MWP = 46 bar / 667 psig
Installation

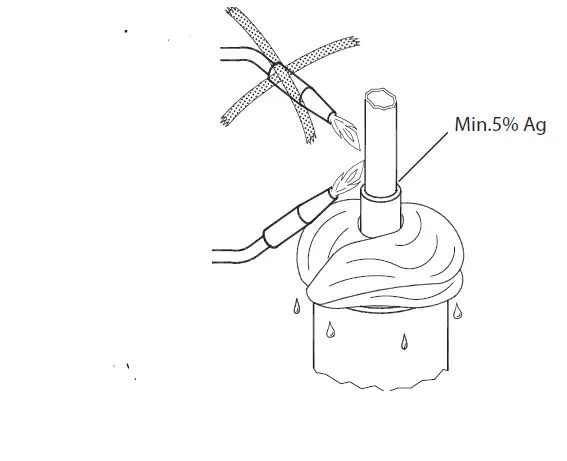

Soldering
After charging, mark the system with the refrigerant and the oil used.
Customer best practice will still be needed:
- Use wet wrap when installing
- Braze the joints.
- Let them cool down.
- Clean the brazing /welding area after the installation (remove remaining flux with a brush).
- This is an important operation and needs to be done with great care to remove all remaining flux.
- Paint / Anti-corrosive needs to cover all open steel parts, areas where the black original paint has been burnt due to brazing and at least 3 cm approx. of the copper.
- Paint the joints twice.

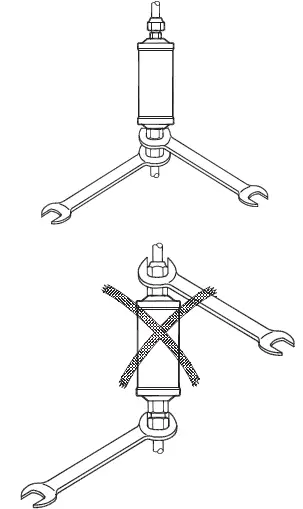

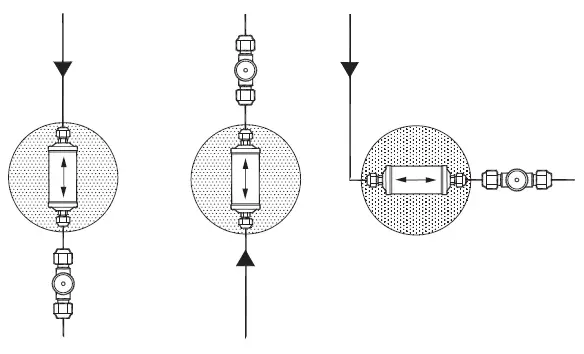

Mounting
