oxygenics 75688 Drench Installation Guide
EASY INSTALLATION INSTRUCTIONS
STEP 1

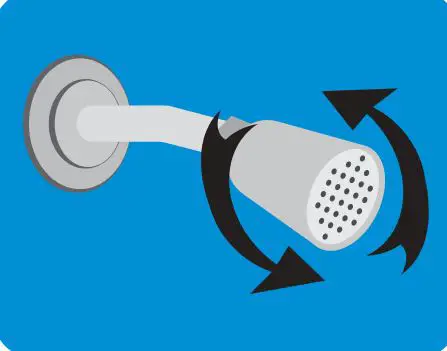

Remove your existing shower head. To remove, turn the existing shower head in a counterclockwise direction.
STEP 2

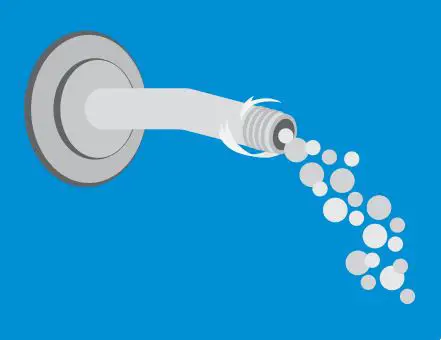

Remove any remnants of old plumber’s tape and flush out shower pipe for 5 to 10 seconds.
STEP 3
Wrap plumber’s tape clockwise 3 or 4 turns around threaded end of shower arm.
STEP 4

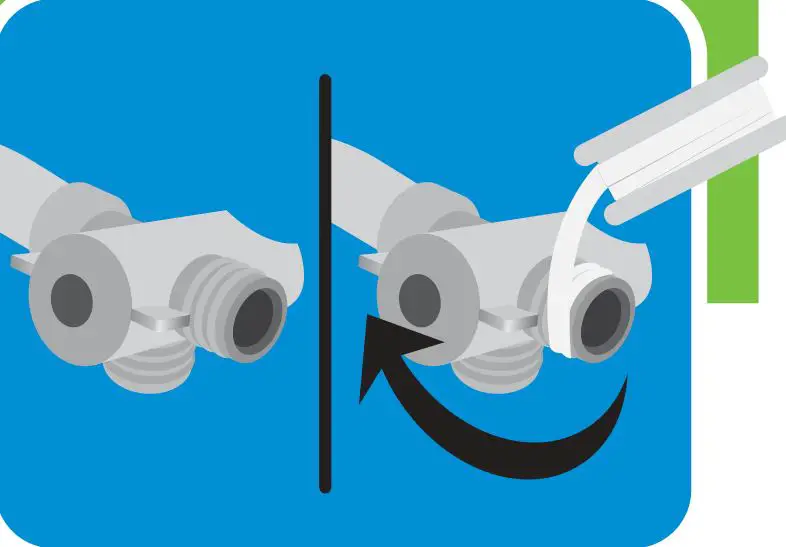

Screw the diverter clockwise onto the taped portion of the shower arm. Wrap plumber’s tape 3 turns around threaded ends of the diverter.
STEP 5

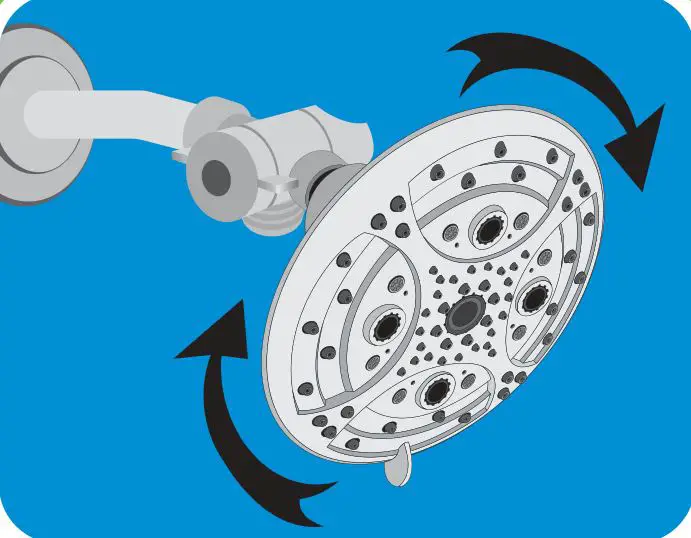

In a clockwise direction, screw fixed unit onto the taped portion of the diverter and hand tighten.
STEP 6
Attach end of hose to diverter and hand tighten. Attach other end of hose to handheld shower and tighten. Place handheld unit into holder on right side of the diverter.
ATTENTION:
WASHERS PRE-INSTALLED IN HOSE ENDS
Washers must be inserted into both hose ends for proper installation.

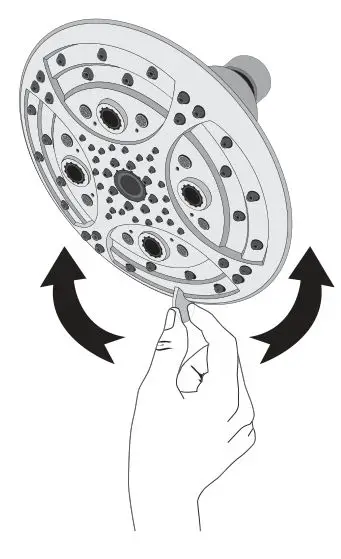

EASY TWIST SPRAY SELECTION
Enjoying multiple spray patterns during your shower has never been easier. With the Drench’s easy twist design, simply rotate the easyspray selector for a quick spray change.

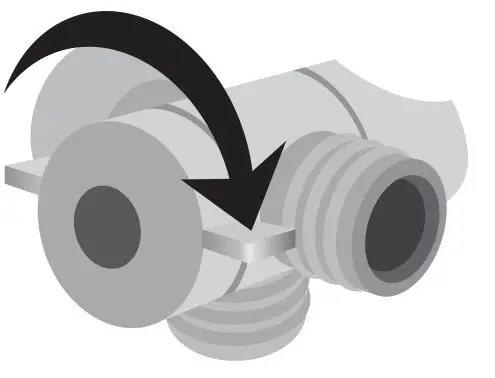

USING THE DIVERTER
To change the shower spray: Place your index finger on one lever and your thumb on the other lever and rotate either clockwise or counter clockwise (depending on the current position) until you feel it click into place.
STOP!
NEED HELP?
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
If you need installation assistance, replacement parts or have questions regarding our warranty, our
Customer Service team can be contacted by:
PHONE:
1-866-440-9257 or 775-420-5600
LIVE CHAT: www.oxygenics.com
EMAIL: [email protected]
ONLINE: www.oxygenics.com/claims
Business hours: Monday – Thursday 7:00 am to 5:00 pm PST
Friday 7:00 am to 4:30 pm PST*
*Closed on all nationally observed holidays
For use with automatic compensating valves rated at 1.35 GPM (5.11 L/min) or less.
