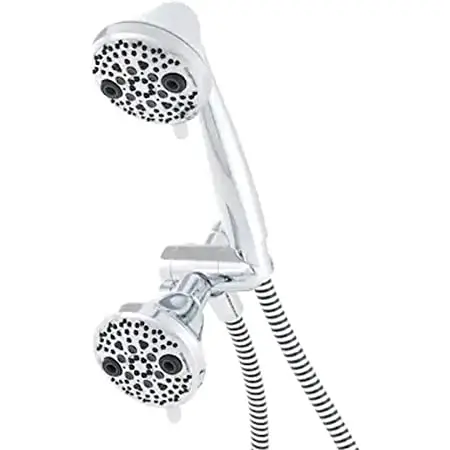

Oxygenics Powermassage Installation Instructions

POWER MASSAGE

EASY INSTALLATION INSTRUCTIONS

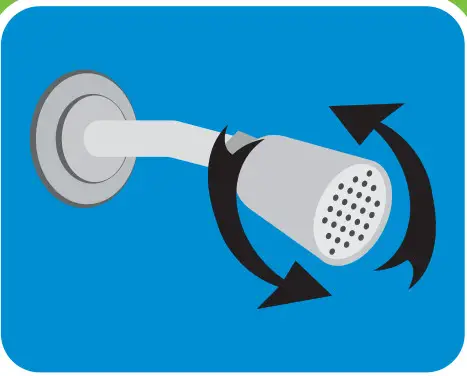

STEP 1
Remove your existing showerhead. To remove, turn the existing showerhead in a counterclockwise direction.STEP 2
Remove any remnants of the old plumber’s tape and flush out shower pipe for 5 to 10 seconds.

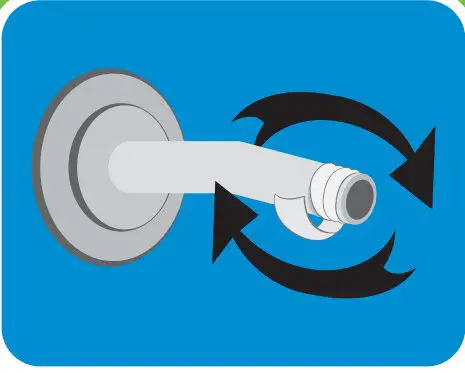

STEP 3
Wrap plumber’s tape clockwise 3 or 4 turns around the threaded end of the shower arm.

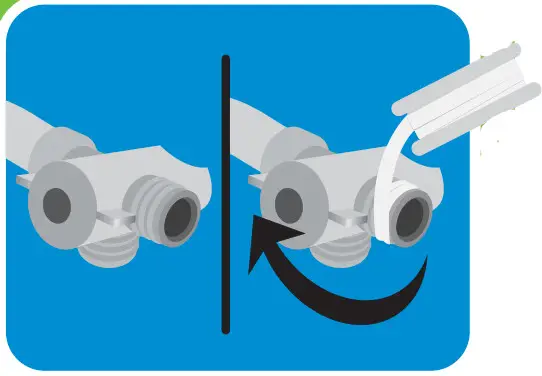

STEP 4
Screw the diverter clockwise onto the taped portion of the shower arm. Wrap plumber’s tape 3 turns around  threaded ends of the diverter.

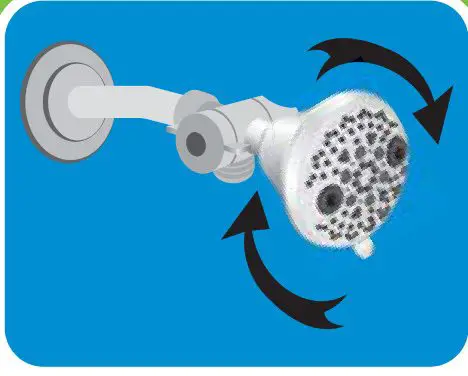

STEP 5
In a clockwise direction, screw fixed unit onto the taped portion of the diverter and hand tighten.

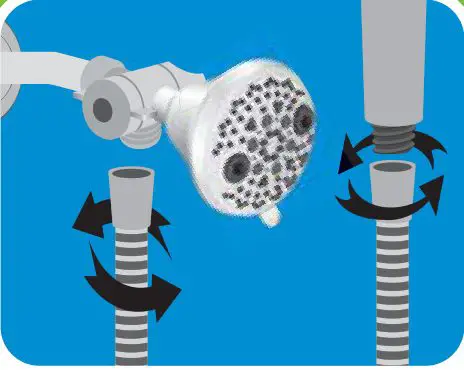

STEP 6
Attach end of hose to diverter and hand tighten. Attach other ends of hose to the handheld shower and tighten.  Place handheld unit into holder on right side of the diverter.

ATTENTION:
WASHERS PRE-INSTALLED IN HOSE ENDS
Washers must be inserted into both hose ends for proper installation.

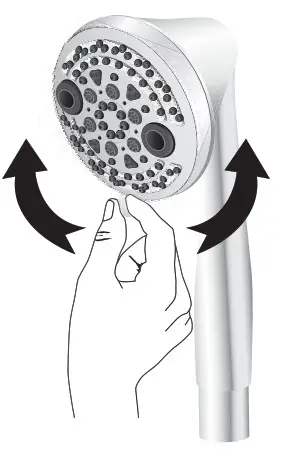

EASY TWIST SPRAY SELECTION

Enjoying multiple spray patterns during your shower has never been easier. With the PowerMassage’s easy twist design, simply rotate the easy spray selector for a quick spray change.

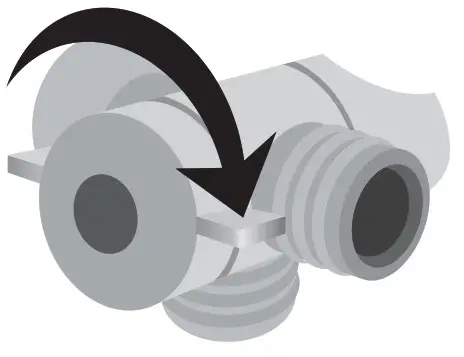

USING THE DIVERTER

To change the shower spray: Place your index finger on one lever and your thumb on the other lever and rotate either clockwise or counterclockwise (depending on the current position)  until you feel it click into place.

STOP!
NEED HELP?
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
If you need installation assistance, replacement parts or have questions regarding our warranty, our Customer Service team can be contacted by:

PHONE:
1-866-440-9257
or 775-420-5600
LIVE CHAT:
www.oxygenics.com
EMAIL:
[email protected]
ONLINE:
www.oxygenics.com/claims

Business hours:
Monday – Thursday 7:00 am to 5:00 pm PST
Friday 7:00 am to 4:30 pm PST*
*Closed on all nationally observed holidays

For use with automatic compensating valves rated at 1.35 GPM (5.11 L/min) or less.
