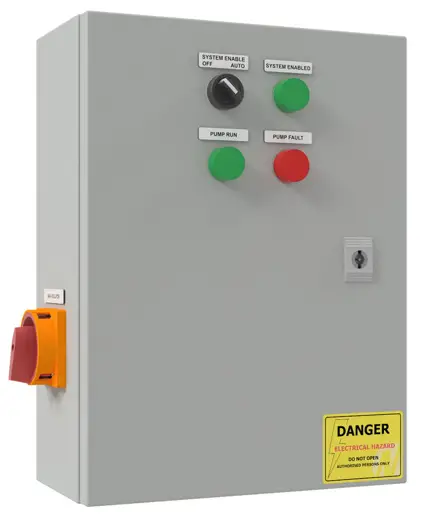

FPC-35111 Power Distribution Boards
POWER DISTRIBUTION BOARDS – DELUXE
HARDWARE FEATURES
Enclosure:
- IP54 rated, powder coated mild steel enclosure with removable gland plate
Protection
- Pad-lockable mains power isolator switch
- Circuit breaker protected low voltage control and input circuitry
- Circuit breakers for individual pump isolation
- Din rail-mounted terminal connections
Control & interface:
- Indicator lights for system enabled, individual pump run and fault
- Selector switch for system enable/disable control
Inputs:
- Single phase (230Vac) or three phases (400Vac) power supply
- 24Vac digital input for float switch
- 1 to 4x 24Vac pump run and fault inputs
Outputs:
- 1 to 4x pump supply outputs
- Master pump/system enable volt free output
- BMS volt-free outputs for individual pump run and fault
- 24Vac output for N.O. solenoid valve (Deluxe+ range only)
Included with the panel:
- Pre-connected power and control cables for each pump
COMMON APPLICATIONS
- Pressure pumping systems
- Irrigation pumping · Building services
MODIFICATION OPTIONS
- 316 stainless steel enclosure
- Jockey pump/duty pump configuration
- Door mount isolator with interlocking handle
- Tank level meter
FUNCTION FEATURES
- Provides constant power to variable speed drives
- Compatible with many brands of motor mount variable speed drives
- Pump enable/run signal from float switch input
- The system enable/disable switch allows for control circuit pump isolation
- In the event of low rainwater, pump fault, or power failure, the controller de-energizes the valve output, opening the valve for mains water use (Deluxe+ range only)

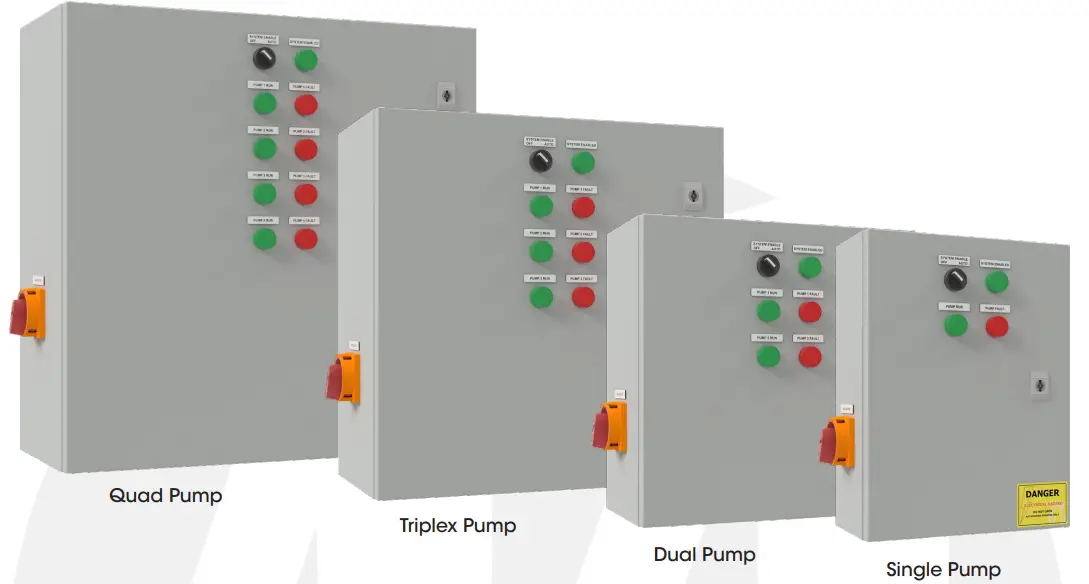

POWER DISTRIBUTION BOARDS – DELUXE RANGE
| Code | No of Pumps | Phase / Voltage | kW Rating Options | Enclosure Size |
| FPC-35111 | 1 | 1 Phase / 230Vac | -1.5 to -2.2 | 400x300x150mm |
| FPC-35131 | 1 | 3 Phase / 400 Vac | -1.5 to -22 | 400x300x150mm |
| FPC-35112 | 2 | 1 Phase / 230Vac | -1.5 to -2.2 | 400x400x200mm |
| FPC-35132 | 2 | 3 Phase / 400 Vac | -1.5 to -22 | 400x400x200mm |
| FPC-35113 | 3 | 1 Phase / 230Vac | -1.5 to -2.2 | 400x400x200mm |
| FPC-35133 | 3 | 3 Phase / 400 Vac | -1.5 to -22 | 500x500x300mm+ |
| FPC-35114 | 4 | 1 Phase / 230Vac | -1.5 to -2.2 | 500x500x300mm |
| FPC-35134 | 4 | 3 Phase / 400 Vac | -1.5 to -22 | 600x600x300mm+ |
Note: Enclosure sizes will increase as power rating increase
POWER DISTRIBUTION BOARDS – DELUXE+ (RAIN/MAINS) RANGE
| Code | No of Pumps | Phase / Voltage | Options | Enclosure Size |
| FPC-35411 | 1 | 1 Phase / 230Vac | -1.5 to -2.2 | 400x300x150mm |
| FPC-35431 | 1 | 3 Phase / 400 Vac | -1.5 to -22 | 400x300x150mm |
| FPC-35412 | 2 | 1 Phase / 230Vac | -1.5 to -2.2 | 400x400x200mm |
| FPC-35432 | 2 | 3 Phase / 400 Vac | -1.5 to -22 | 400x400x200mm |
| FPC-35413 | 3 | 1 Phase / 230Vac | -1.5 to -2.2 | 400x400x200mm |
| FPC-35433 | 3 | 3 Phase / 400 Vac | -1.5 to -22 | 500x500x300mm+ |
| FPC-35414 | 4 | 1 Phase / 230Vac | -1.5 to -2.2 | 500x500x300mm |
| FPC-35434 | 4 | 3 Phase / 400 Vac | -1.5 to -22 | 600x600x300mm+ |
Note: Enclosure sizes will increase as power rating increase
KW RATING OPTIONS
| Code Suffix | Power Rating |
| -1.5 | 1.5 kW |
| -2.2 | 2.2 kW |
| -3 | 3.0 kW |
| -4 | 4.0 kW |
| -5.5 | 5.5 kW |
| -7.5 | 7.5 kW |
| -11 | 11.0 kW |
| -15 | 15.0 kW |
| -18.5 | 18.5 kW |
| -22 | 22.0 kW |
Additional kW ratings available on request
